EPMT 1.81.50.5-NF2:T9335
EPMT 1.81.50.5-NF2:T9335

EPMT 1.81.50.5-NF2:T9335

UGC DOR7167484
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.11 CAD - $10.11 CAD
$10.11 CAD
$10.11 CAD - $10.11 CAD
$10.11 CAD

Vendu en lots de : 10

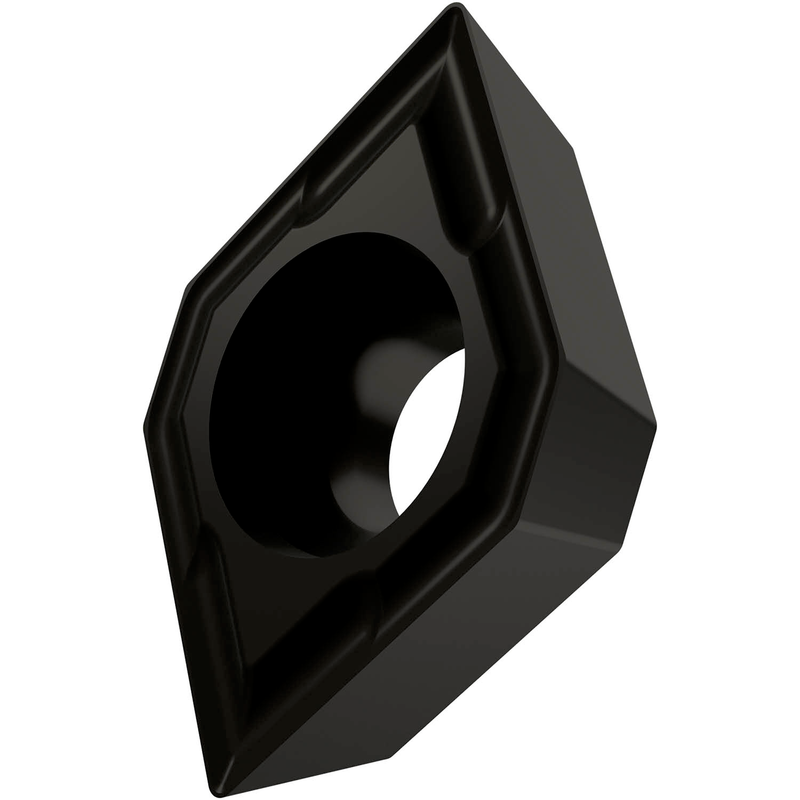

Plaquette positive simple face, rhomboïde 75° avec dépouille 11°, diamètre du cercle inscrit de 7/32, épaisseur 3/32", rayon de bec 1/128" et précision d'indexation selon la classe de tolérance ISO M, brise-copeaux NF2, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M15-M40, pour l'usinage fin à moyen des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI)EPMT 1.81.50.5-NF2:T9335
Product Name (ISO)EPMT 050202E-NF2:T9335
GradeT9335
Chipbreaker (CBMD)NF2
Product Number7167484
Product FamilyGEPT

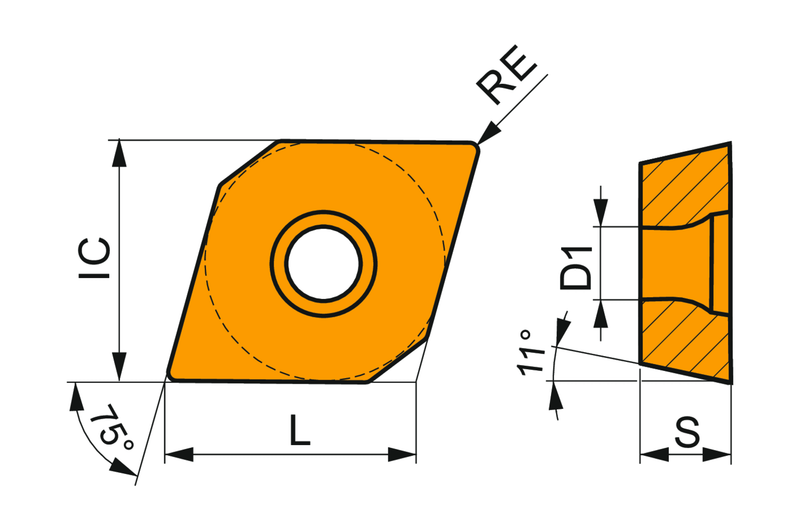

Insert Geometry
Insert DesignEPTM
Insert Shape Code (SC)F - angle de 75° de rhombe
Insert Geometry
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.56 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7167484
EAN3603603170704
File Type Download
EPMT 1.81.50.5-NF2:T9335 — Line Drawing PDF Download
