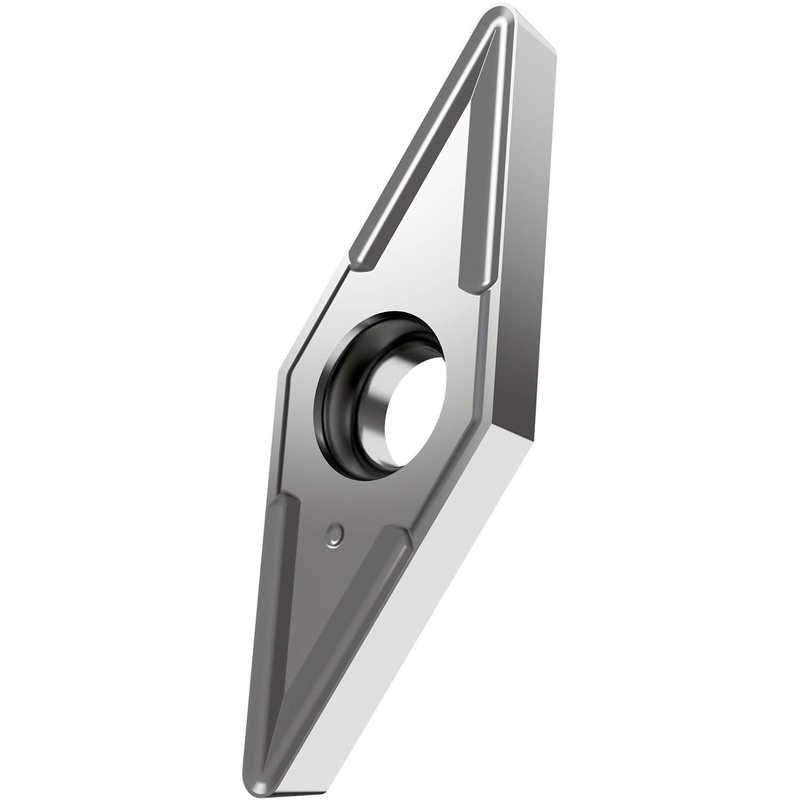

VCGT 2.520.5-NF2:H07
VCGT 2.520.5-NF2:H07

VCGT 2.520.5-NF2:H07

UGC DOR7167515
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.64 CAD - $15.64 CAD
$15.64 CAD
$15.64 CAD - $15.64 CAD
$15.64 CAD

Vendu en lots de : 10

Plaquette positive simple face, rhomboïde 35° avec dépouille de 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/128" et précision de positionnement selon la classe de tolérance ISO G, brise-copeaux NF2, en nuance H07, un carbure WC-Co non revêtu dans la gamme ISO S01-S20, pour l'usinage fin à moyen des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.520.5-NF2:H07
Product Name (ISO)VCGT 130302E-NF2:H07
GradeH07
Chipbreaker (CBMD)NF2
Product Number7167515
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - 35° en angle de pointe
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.13"
Depth of Cut Max — mm (APMX)3.3 mm
Tool Information
Reference Numbers
EDP Number7167515
EAN3603603171015
File Type Download
VCGT 2.520.5-NF2:H07 — Line Drawing PDF Download
