ECGT 21.50.5-SF2:H07
ECGT 21.50.5-SF2:H07

ECGT 21.50.5-SF2:H07

UGC DOR7168198
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.93 CAD - $13.93 CAD
$13.93 CAD
$13.93 CAD - $13.93 CAD
$13.93 CAD

Vendu en lots de : 10

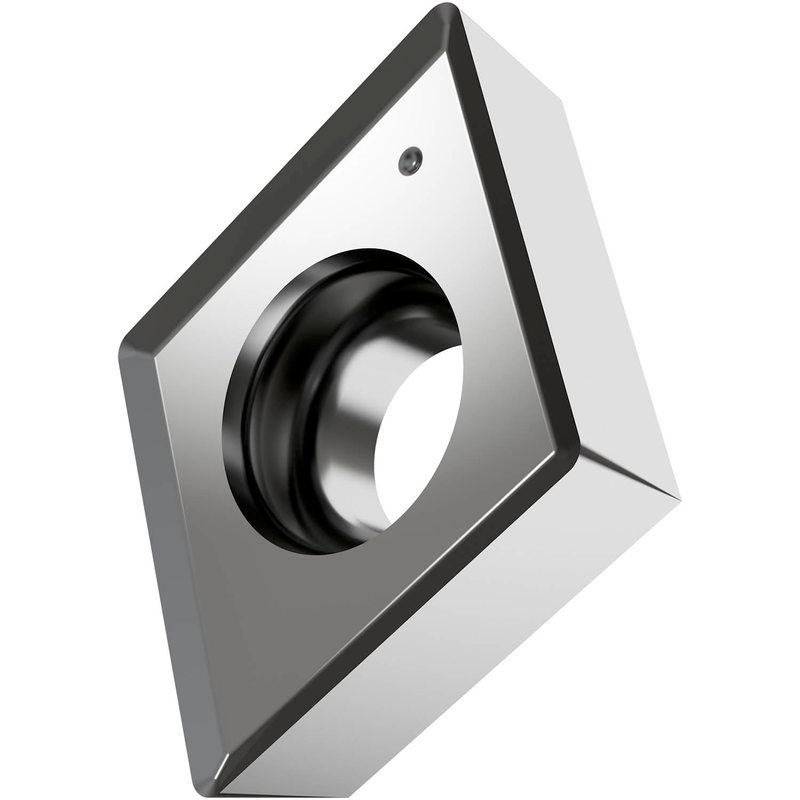

Plaquette positive simple face, rhomboïde 75° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur 3/32", rayon de bec 1/128" et précision de positionnement selon la classe de tolérance ISO G, brise-copeaux SF2, en nuance H07, un carbure WC-Co non revêtu de la gamme ISO S01-S20, pour l'usinage de finition à semi-finition des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CEGT 21.50.5-SF2:H07
Product Name (ISO)ECGT 060202E-SF2:H07
GradeH07
Chipbreaker (CBMD)SF2
Product Number7168198
Product FamilyECGT

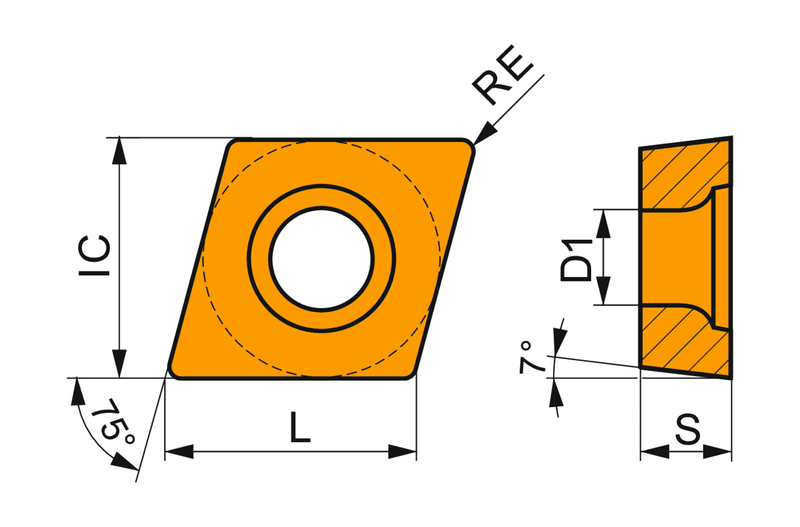

Insert Geometry
Insert DesignCGTE
Insert Shape Code (SC)E - losange, angle inclus 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number7168198
EAN3603603171138
File Type Download
ECGT 21.50.5-SF2:H07 — Line Drawing PDF Download
