CEGT 21.51-SF2:H07
CEGT 21.51-SF2:H07

CEGT 21.51-SF2:H07

UGC DOR7168490
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.29 CAD - $13.29 CAD
$13.29 CAD
$13.29 CAD - $13.29 CAD
$13.29 CAD

Vendu en lots de : 10

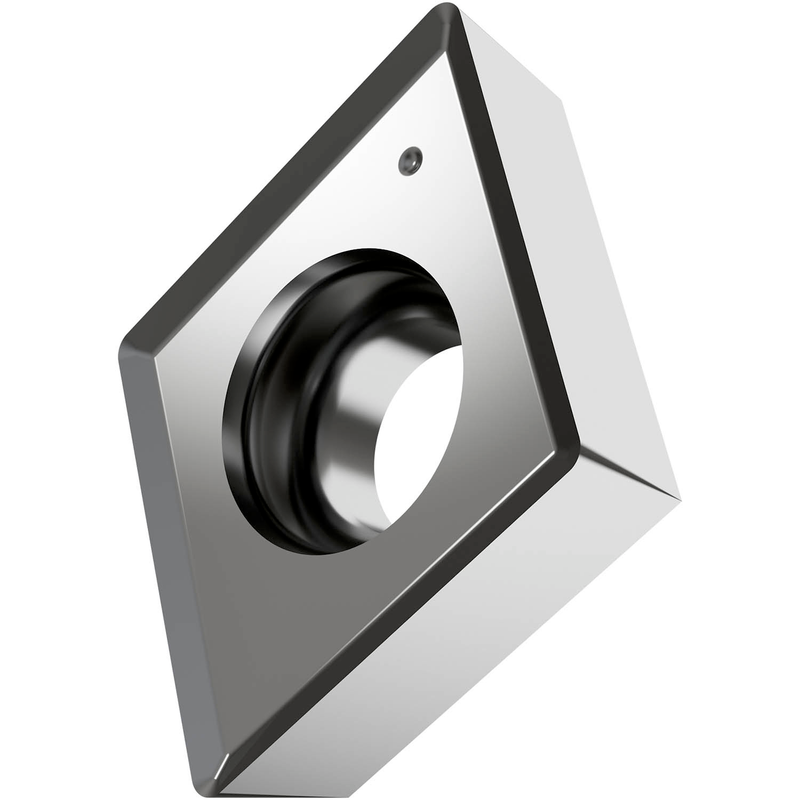

Plaquette positive simple face, rhomboïde 75° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur 3/32", rayon de pointe 1/64" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux SF2, en nuance H07, un carbure WC-Co non revêtu dans la gamme ISO S01-S20, pour l'usinage fin à moyen des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)ECGT 21.51-SF2:H07
Product Name (ISO)ECGT 060204E-SF2:H07
GradeH07
Chipbreaker (CBMD)SF2
Product Number7168490
Product FamilyECGT

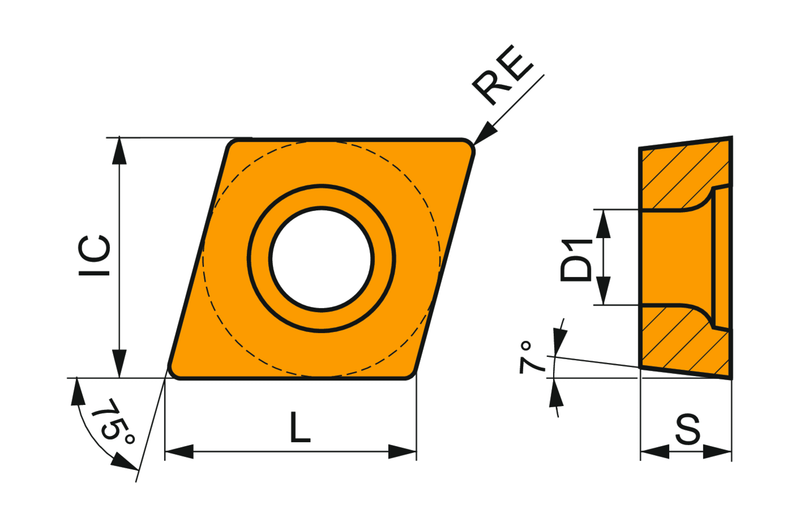

Insert Geometry
Insert DesignÉCGT
Insert Shape Code (SC)E - angle inclus rhomboïdal 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7168490
EAN3603603171152
File Type Download
CEGT 21.51-SF2:H07 — Line Drawing PDF Download
