ECGT 21.51-SF2:T6310
ECGT 21.51-SF2:T6310

ECGT 21.51-SF2:T6310

UGC DOR7168491
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.71 CAD - $17.71 CAD
$17.71 CAD
$17.71 CAD - $17.71 CAD
$17.71 CAD

Vendu en lots de : 10

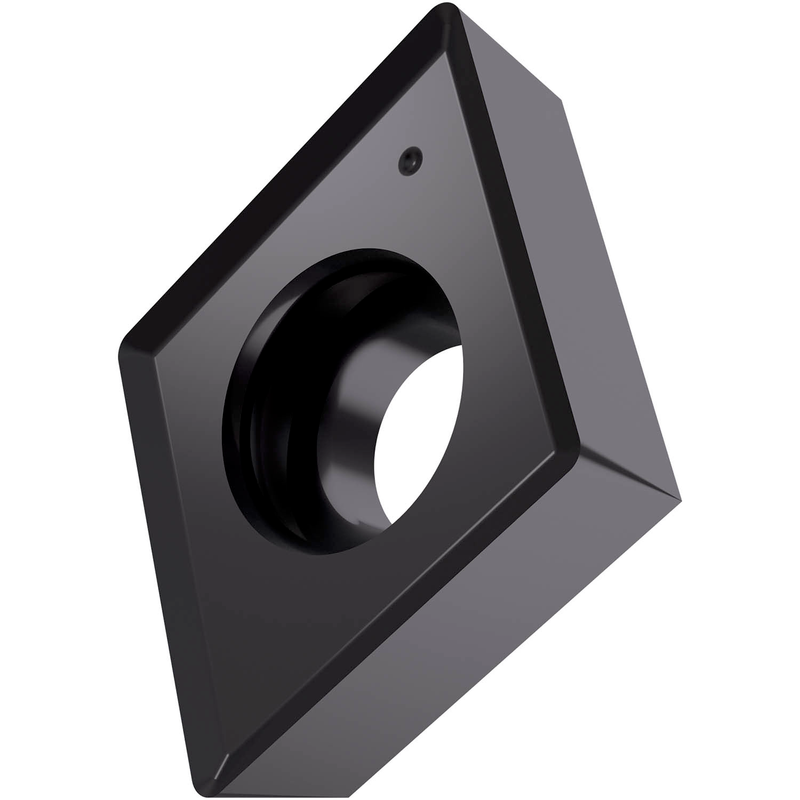

Plaquette de tournage positive simple face, rhomboïde 75° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur 3/32", rayon de pointe 1/64" et précision d'indexation selon la classe de tolérance ISO G, brise-copeaux SF2, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO M01-M15 et S01-S15, pour l'usinage de finition à semi-finition des aciers inoxydables et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)ECGT 21.51-SF2:T6310
Product Name (ISO)ECGT 060204E-SF2:T6310
GradeT6310
Chipbreaker (CBMD)SF2
Product Number7168491
Product FamilyCGET

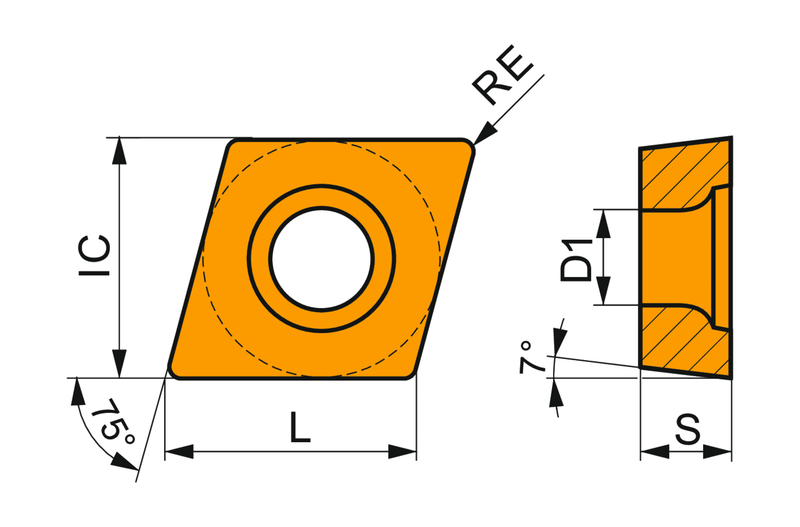

Insert Geometry
Insert DesignCGET
Insert Shape Code (SC)F - angle inclus rhomboïde de 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7168491
EAN3603603171169
File Type Download
ECGT 21.51-SF2:T6310 — Line Drawing PDF Download
