CEGT 2.520.5-SF2:H07
CEGT 2.520.5-SF2:H07

CEGT 2.520.5-SF2:H07

UGC DOR7168492
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.43 CAD - $14.43 CAD
$14.43 CAD
$14.43 CAD - $14.43 CAD
$14.43 CAD

Vendu en lots de : 10

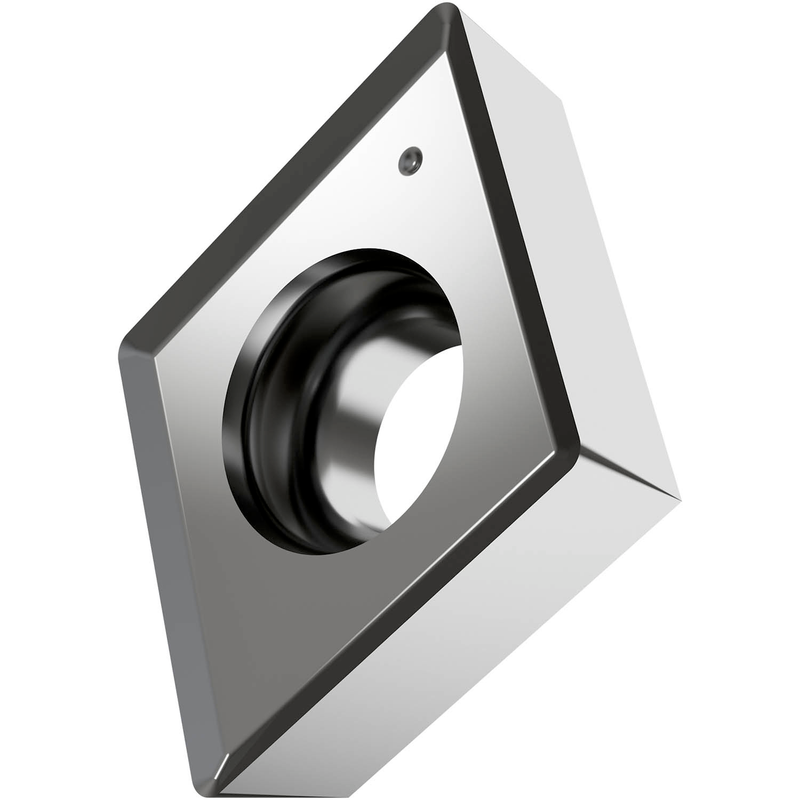

Plaquette positive simple face, rhomboïde 75° avec dépouille 7°, diamètre du cercle inscrit 5/16", épaisseur 1/8", rayon de bec 1/128" et précision de positionnement selon la classe de tolérance ISO G, brise-copeaux SF2, en nuance H07, un carbure WC-Co non revêtu de la gamme ISO S01-S20, pour l'usinage fin à moyen des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)ECGT 2.520.5-SF2:H07
Product Name (ISO)ECGT 080302E-SF2:H07
GradeH07
Chipbreaker (CBMD)SF2
Product Number7168492
Product FamilyECGT

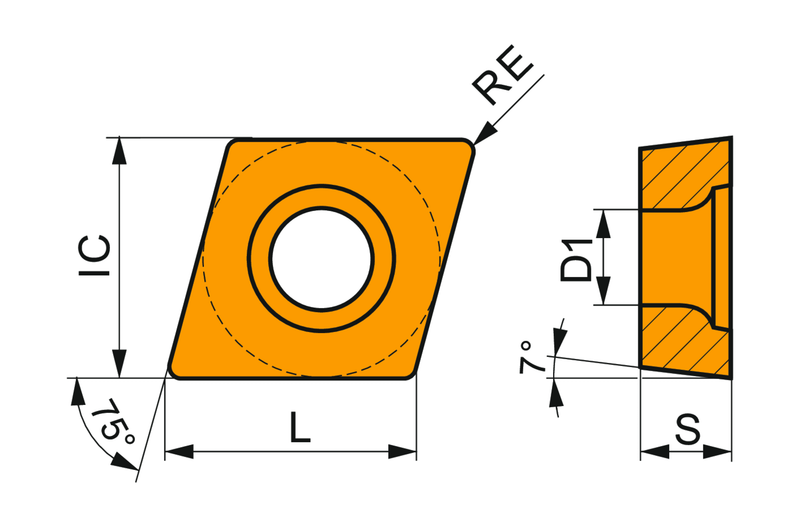

Insert Geometry
Insert DesignCEGT
Insert Shape Code (SC)E - Angle aigu inclus de 75° rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7168492
EAN3603603171176
File Type Download
CEGT 2.520.5-SF2:H07 — Line Drawing PDF Download
