ECGT 2.520.5-SF2:T6310
ECGT 2.520.5-SF2:T6310

ECGT 2.520.5-SF2:T6310

UGC DOR7168493
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.33 CAD - $19.33 CAD
$19.33 CAD
$19.33 CAD - $19.33 CAD
$19.33 CAD

Vendu en lots de : 10

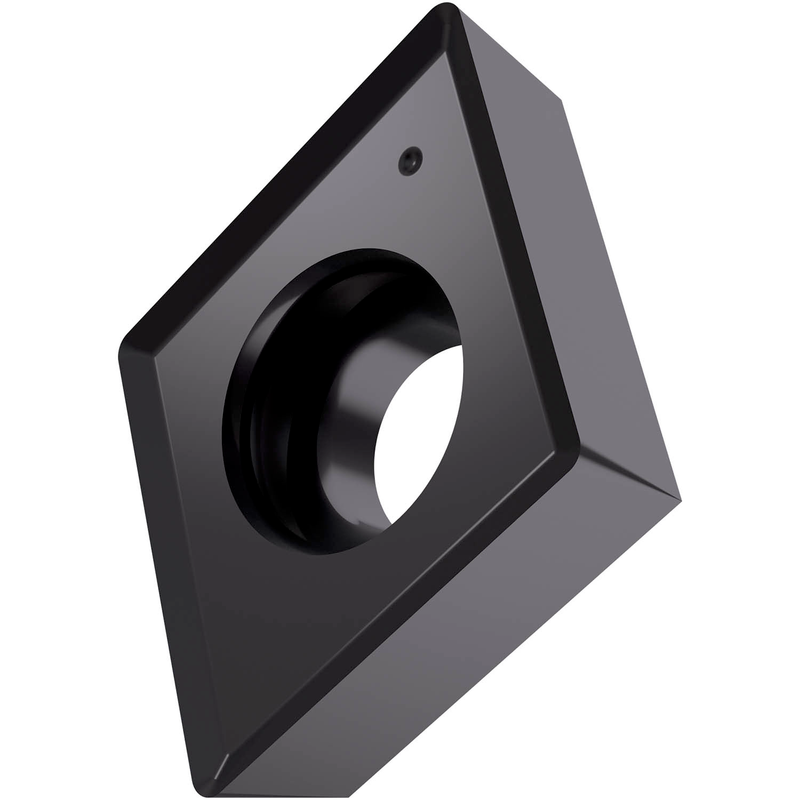

Plaquette positive simple face à 75° rhomboïdale avec dépouille de 7°, diamètre du cercle inscrit de 5/16", épaisseur de 1/8", rayon de bec de 1/128" et précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF2, en nuance T6310, un carbure WC-Co à grain extra fin revêtu PVD dans les plages ISO M01-M15 et S01-S15, pour l'usinage fin à moyen des aciers inoxydables et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)ECGT 2.520.5-SF2:T6310
Product Name (ISO)ECGT 080302E-SF2:T6310
GradeT6310
Chipbreaker (CBMD)SF2
Product Number7168493
Product FamilyECGT

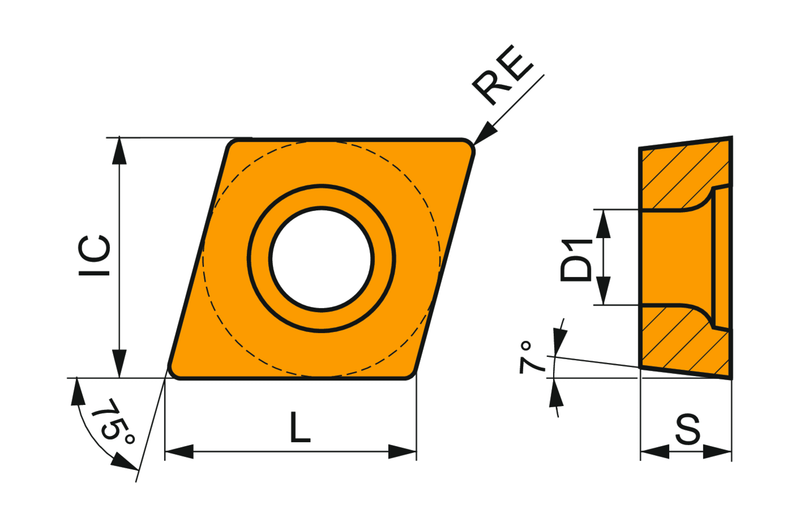

Insert Geometry
Insert DesignECGT
Insert Shape Code (SC)F - rhombe angle rentrant de 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7168493
EAN3603603171183
File Type Download
ECGT 2.520.5-SF2:T6310 — Line Drawing PDF Download
