VCGT 2.520.2-SF2:T6310
VCGT 2.520.2-SF2:T6310

VCGT 2.520.2-SF2:T6310

UGC DOR7168497
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.76 CAD - $20.76 CAD
$20.76 CAD
$20.76 CAD - $20.76 CAD
$20.76 CAD

Vendu en lots de : 10

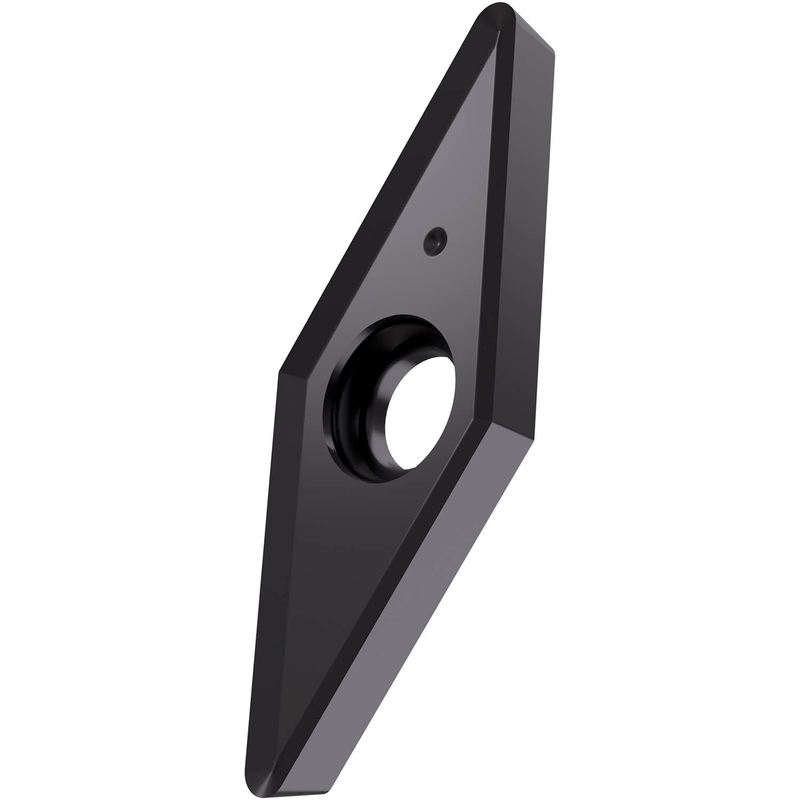

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit 5/16", épaisseur 1/8", rayon de bec 1/256" et précision de positionnement selon la classe de tolérance ISO G, brise-copeaux SF2, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les gammes ISO M01-M15 et S01-S15, pour l'usinage fin à moyen des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.520.2-SF2:T6310
Product Name (ISO)VCGT 130301E-SF2:T6310
GradeT6310
Chipbreaker (CBMD)SF2
Product Number7168497
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle d'ouverture de 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.004"
Corner Radius — mm (RE)0.1 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7168497
EAN3603603171220
File Type Download
VCGT 2.520.2-SF2:T6310 — Line Drawing PDF Download
