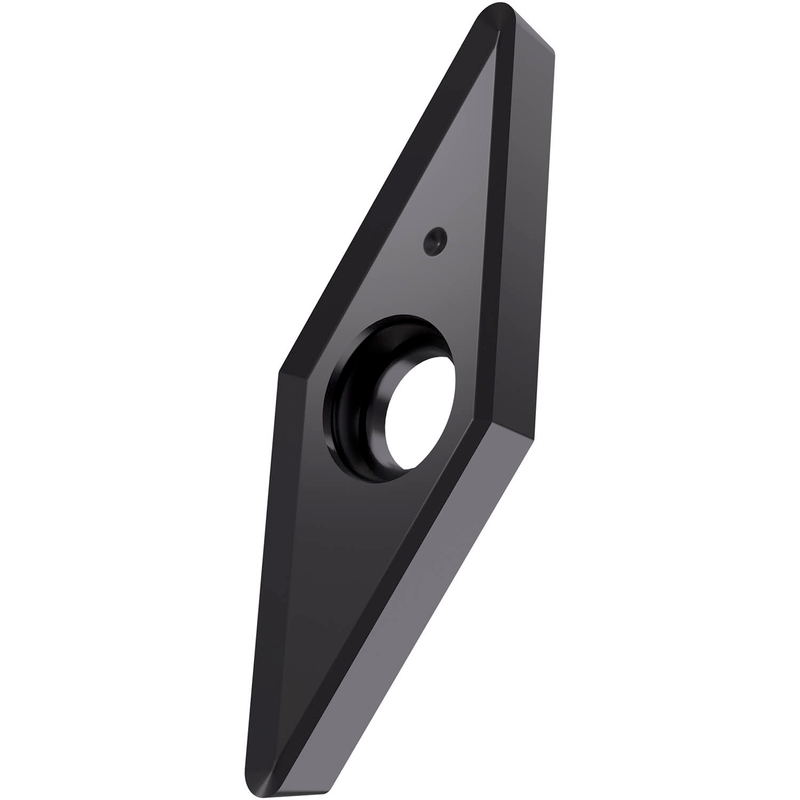

VCGT 2.521-SF2:T6310
VCGT 2.521-SF2:T6310

VCGT 2.521-SF2:T6310

UGC DOR7168501
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.61 CAD - $19.61 CAD
$19.61 CAD
$19.61 CAD - $19.61 CAD
$19.61 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 5/16", épaisseur 1/8", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO G, brise-copeaux SF2, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les gammes ISO M01-M15 et S01-S15, pour l'usinage fin à moyen des aciers inoxydables et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 2.521-SF2:T6310
Product Name (ISO)VCGT 130304E-SF2:T6310
GradeT6310
Chipbreaker (CBMD)SF2
Product Number7168501
Product FamilyVCGT
Insert Geometry
Insert DesignTCGV
Insert Shape Code (SC)V - Angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7168501
EAN3603603171268
File Type Download
VCGT 2.521-SF2:T6310 — Line Drawing PDF Download
