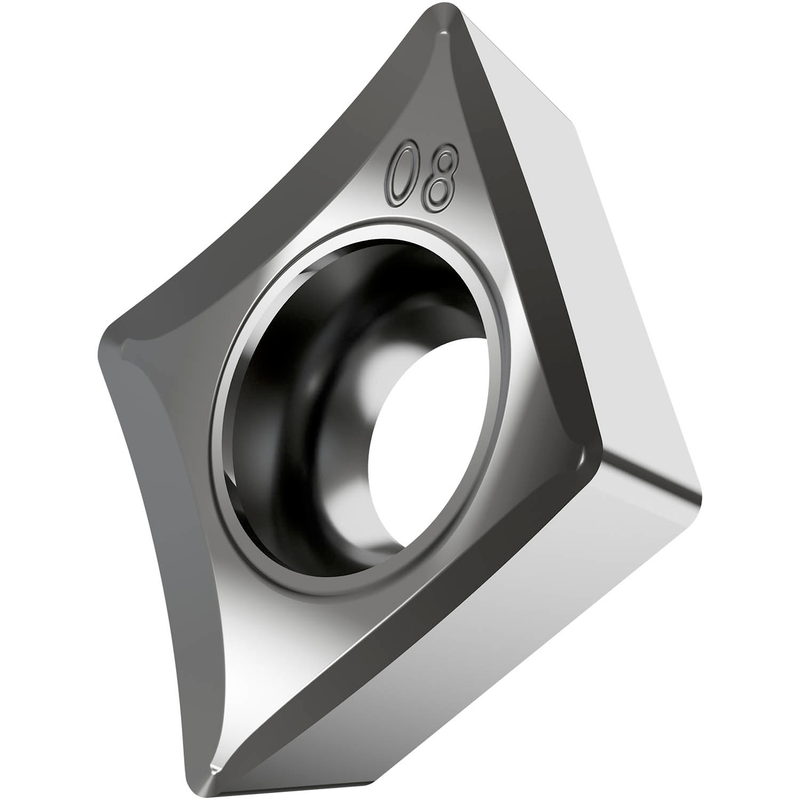

CCGT 32.52-SF3:H07
CCGT 32.52-SF3:H07

CCGT 32.52-SF3:H07

UGC DOR7168550
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.64 CAD - $13.64 CAD
$13.64 CAD
$13.64 CAD - $13.64 CAD
$13.64 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 80° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux SF3, en nuance H07, un carbure WC-Co non revêtu dans les plages ISO N10 - N30 et S01 - S20, pour l'usinage fin à moyen des métaux non ferreux et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CCGT 32.52-SF3:H07
Product Name (ISO)CCGT 09T308E-SF3:H07
GradeH07
Chipbreaker (CBMD)SF3
Product Number7168550
Product FamilyTACG
Insert Geometry
Insert DesignTACG
Insert Shape Code (SC)C - angle de 80° inclus, rhomboédrique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.166"
Insert Thickness — mm (S)4.22 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.126"
Depth of Cut Max — mm (APMX)3.2 mm
Tool Information
Reference Numbers
EDP Number7168550
EAN3603603171466
Material Group Suitability
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Usage principal
File Type Download
CCGT 32.52-SF3:H07 — Line Drawing PDF Download
