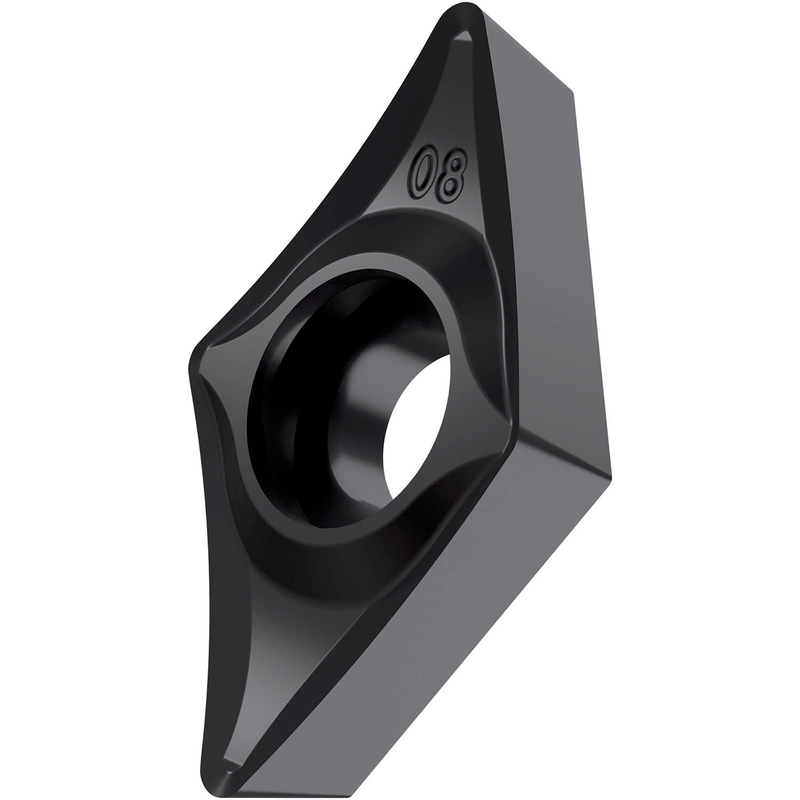

DCGT 21.51-SF3:T6310
DCGT 21.51-SF3:T6310

DCGT 21.51-SF3:T6310

UGC DOR7168560
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.19 CAD - $17.19 CAD
$17.19 CAD
$17.19 CAD - $17.19 CAD
$17.19 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur 3/32", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF3, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO M01 - M15/N05 - N20 et S01 - S15, pour l'usinage fin à moyen des aciers inoxydables, des métaux non ferreux et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 21.51-SF3:T6310
Product Name (ISO)DCGT 070204E-SF3:T6310
GradeT6310
Chipbreaker (CBMD)SF3
Product Number7168560
Product FamilyDCGT
Insert Geometry
Insert DesignDCGT
Insert Shape Code (SC)D - angle de 55° inclus, forme rhomboïdale
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.102"
Insert Thickness — mm (S)2.58 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7168560
EAN3603603171565
File Type Download
DCGT 21.51-SF3:T6310 — Line Drawing PDF Download
