CCGT 32.50.5-SF3:H07
CCGT 32.50.5-SF3:H07

CCGT 32.50.5-SF3:H07

UGC DOR7168562
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.33 CAD - $18.33 CAD
$18.33 CAD
$18.33 CAD - $18.33 CAD
$18.33 CAD

Vendu en lots de : 10

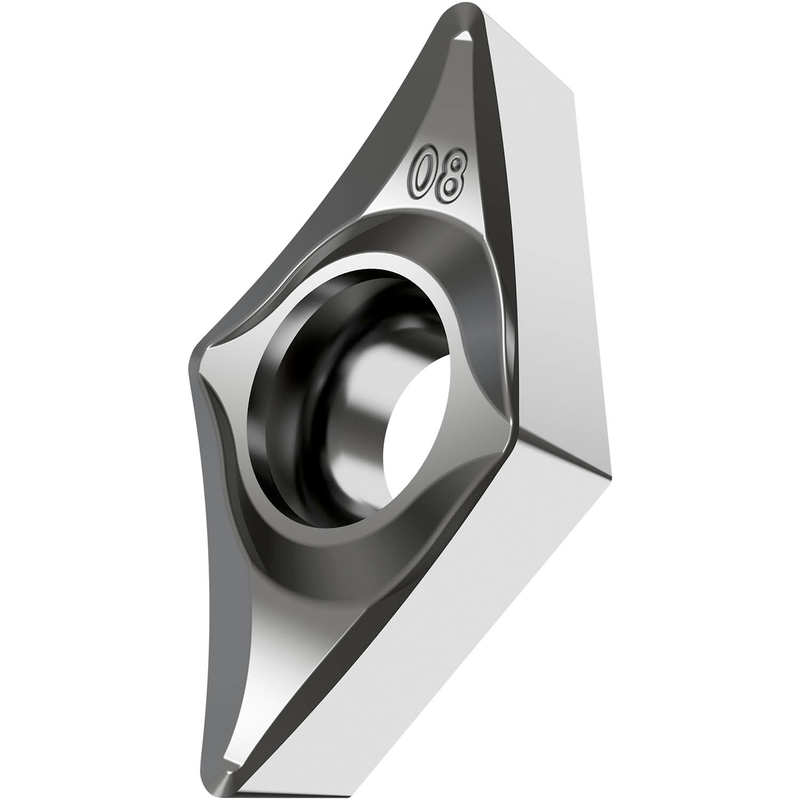

Plaquette de tournage positive simple face, rhomboïde 55° avec un angle de dépouille de 7°, un diamètre de cercle inscrit de 3/8", une épaisseur de 5/32", un rayon de bec de 1/128" et une précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF3, en nuance H07, un carbure WC-Co non revêtu dans les plages ISO N10 - N30 et S01 - S20, pour l'usinage fin à moyen des métaux non ferreux et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 32.50.5-SF3:H07
Product Name (ISO)DCGT 11T302E-SF3:H07
GradeH07
Chipbreaker (CBMD)SF3
Product Number7168562
Product FamilyDCGT

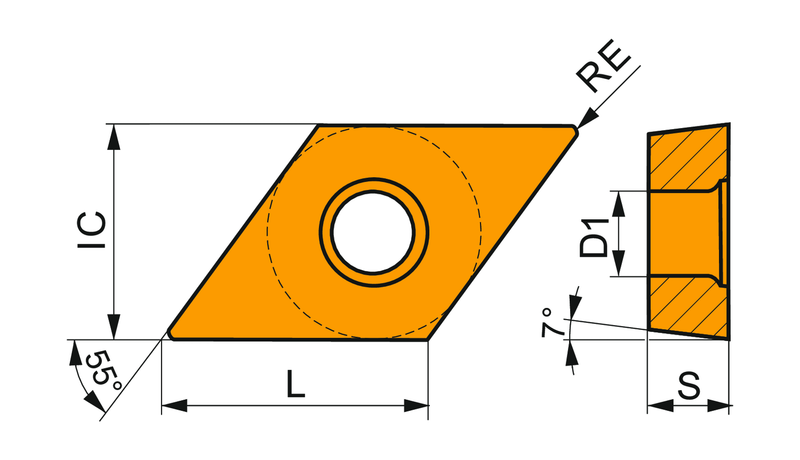

Insert Geometry
Insert DesignDCGT
Insert Shape Code (SC)D - angle aigu 55° rhomboïdal
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.166"
Insert Thickness — mm (S)4.22 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7168562
EAN3603603171589
File Type Download
CCGT 32.50.5-SF3:H07 — Line Drawing PDF Download
