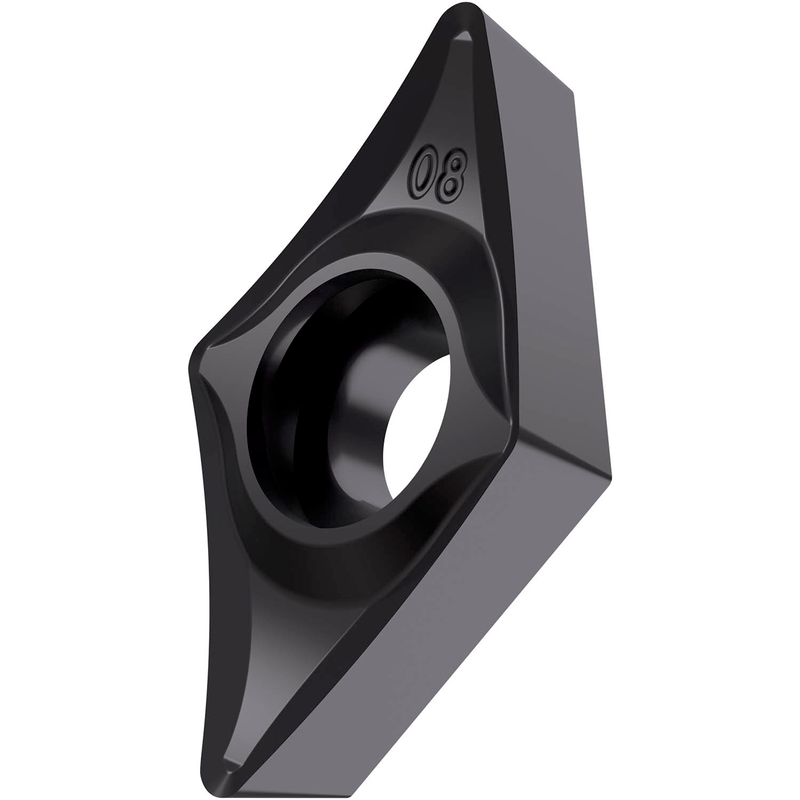

DCGT 32.52-SF3:T6310
DCGT 32.52-SF3:T6310

DCGT 32.52-SF3:T6310

UGC DOR7168568
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.21 CAD - $23.21 CAD
$23.21 CAD
$23.21 CAD - $23.21 CAD
$23.21 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 55° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur 5/32", rayon de bec 1/32" et précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF3, en qualité T6310, un carbure WC-Co à grains extra fins revêtu PVD dans les plages ISO M01 - M15/N05 - N20 et S01 - S15, pour l'usinage fin à moyen des aciers inoxydables, des métaux non ferreux et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)DCGT 32.52-SF3:T6310
Product Name (ISO)DCGT 11T308E-SF3:T6310
GradeT6310
Chipbreaker (CBMD)SF3
Product Number7168568
Product FamilyDCTG
Insert Geometry
Insert DesignDCGT
Insert Shape Code (SC)D - angle compris rhombique de 55°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.166"
Insert Thickness — mm (S)4.22 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7168568
EAN3603603171640
File Type Download
DCGT 32.52-SF3:T6310 — Line Drawing PDF Download
