ECGT 21.50.5-SF3:H07
ECGT 21.50.5-SF3:H07

ECGT 21.50.5-SF3:H07

UGC DOR7168570
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.93 CAD - $13.93 CAD
$13.93 CAD
$13.93 CAD - $13.93 CAD
$13.93 CAD

Vendu en lots de : 10

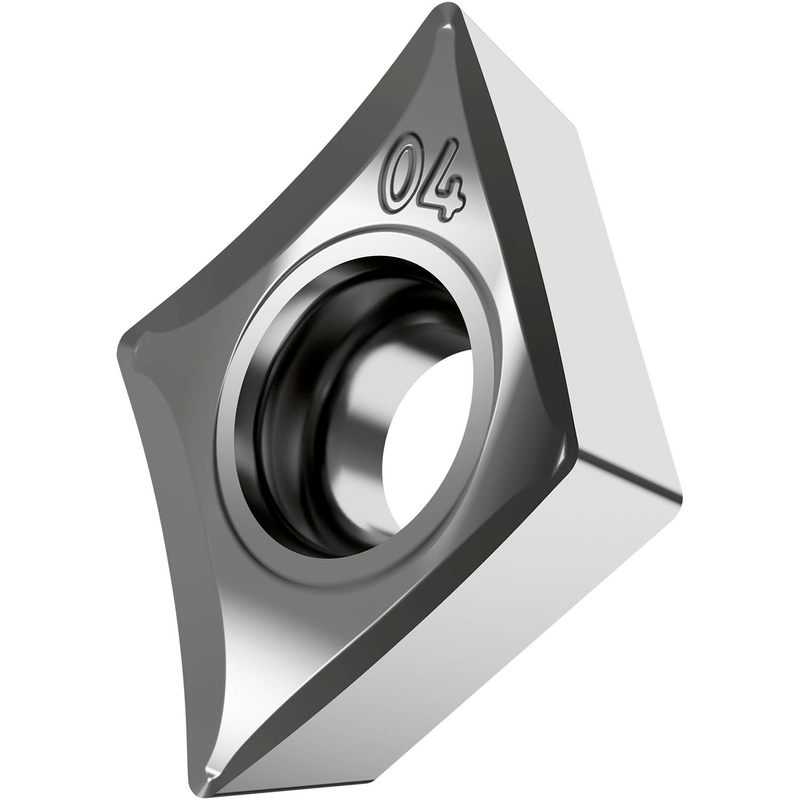

Plaquette de tournage positive simple face, rhomboïde 75° avec dépouille 7°, diamètre du cercle inscrit 1/4", épaisseur 3/32", rayon de bec 1/128" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux SF3, en nuance H07, un carbure WC-Co non revêtu dans les plages ISO N10 - N30 et S01 - S20, pour l'usinage fin à moyen des métaux non ferreux et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CEGT 21.50.5-SF3:H07
Product Name (ISO)ECGT 060202E-SF3:H07
GradeH07
Chipbreaker (CBMD)SF3
Product Number7168570
Product FamilySCEG

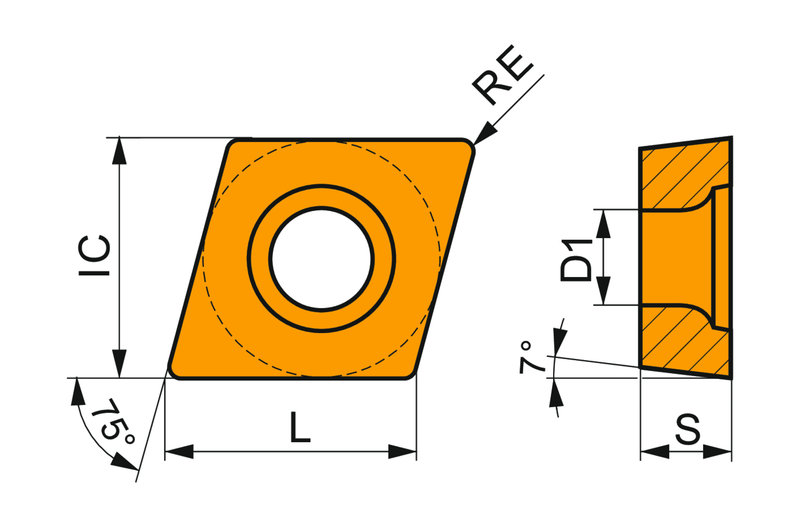

Insert Geometry
Insert DesignECGT
Insert Shape Code (SC)E - angle 75° inclus en losange
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.102"
Insert Thickness — mm (S)2.58 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number7168570
EAN3603603171664
File Type Download
ECGT 21.50.5-SF3:H07 — Line Drawing PDF Download
