ECGT 21.50.5-SF3:T6310
ECGT 21.50.5-SF3:T6310

ECGT 21.50.5-SF3:T6310

UGC DOR7168571
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.61 CAD - $18.61 CAD
$18.61 CAD
$18.61 CAD - $18.61 CAD
$18.61 CAD

Vendu en lots de : 10

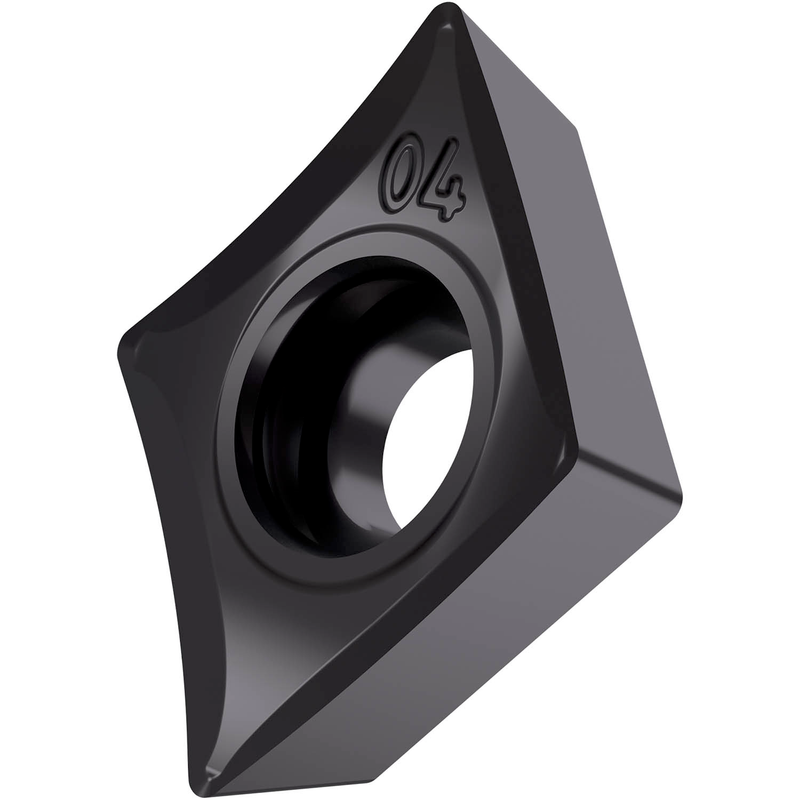

Plaquette de tournage positive simple face, rhomboïdale à 75° avec un angle de dépouille de 7°, diamètre du cercle inscrit de 1/4", épaisseur de 3/32", rayon de bec de 1/128" et précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux SF3, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO M01 - M15/N05 - N20 et S01 - S15, pour l'usinage fin à moyen des aciers inoxydables, des métaux non ferreux et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)ECGT 21.50.5-SF3:T6310
Product Name (ISO)ECGT 060202E-SF3:T6310
GradeT6310
Chipbreaker (CBMD)SF3
Product Number7168571
Product FamilyECGT

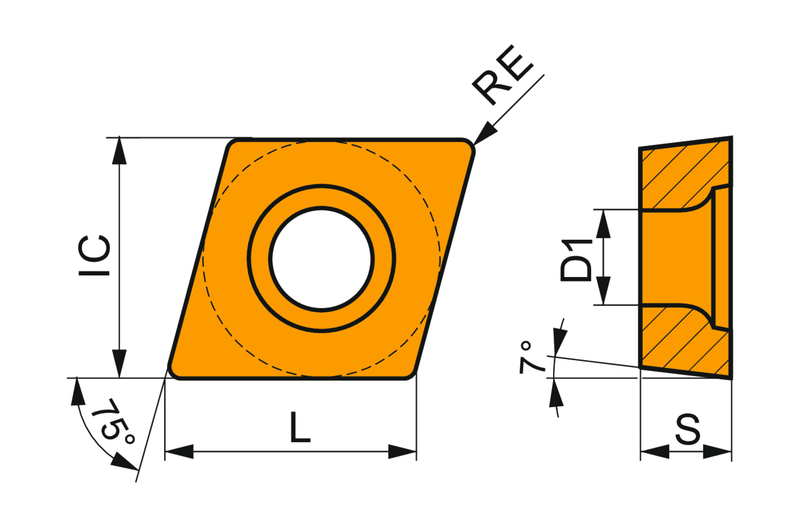

Insert Geometry
Insert DesignECGT
Insert Shape Code (SC)F - angle interne de 75° pour le losange
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.102"
Insert Thickness — mm (S)2.58 mm
Corner Radius — in (RE)0.008"
Corner Radius — mm (RE)0.2 mm
Depth of Cut Max — in (APMX)0.063"
Depth of Cut Max — mm (APMX)1.6 mm
Tool Information
Reference Numbers
EDP Number7168571
EAN3603603171671
File Type Download
ECGT 21.50.5-SF3:T6310 — Line Drawing PDF Download
