ECGT 2.521-SF3:H07
ECGT 2.521-SF3:H07

ECGT 2.521-SF3:H07

UGC DOR7168572
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$13.71 CAD - $13.71 CAD
$13.71 CAD
$13.71 CAD - $13.71 CAD
$13.71 CAD

Vendu en lots de : 10

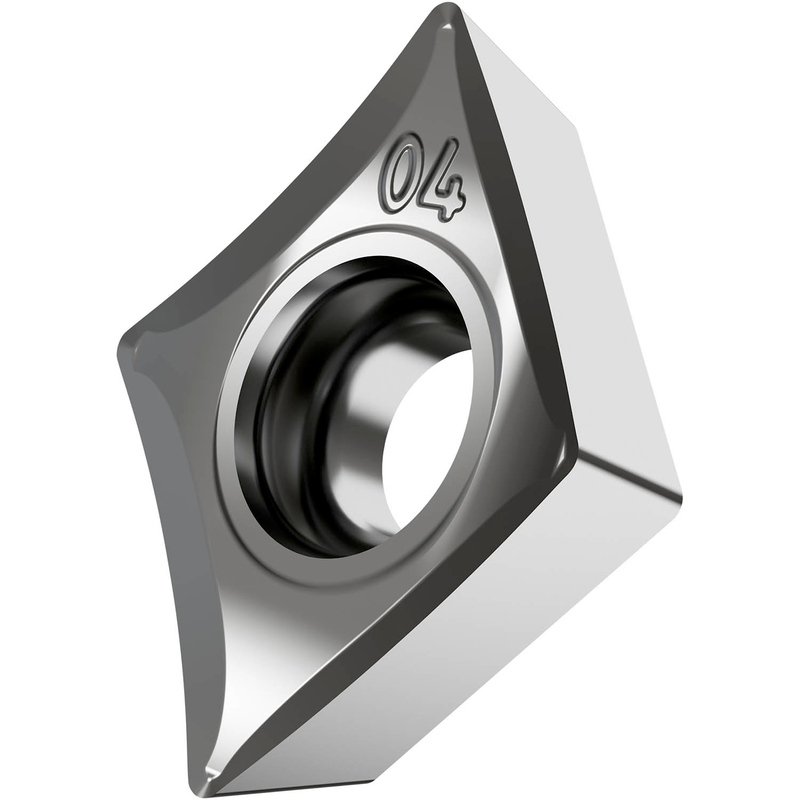

Plaquette de tournage positive simple face, rhomboïdale à 75° avec un angle de dépouille de 7°, diamètre du cercle inscrit de 5/16", 1/8" d'épaisseur, rayon de bec de 1/64" et précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux SF3, en qualité H07, un carbure WC-Co non revêtu dans les plages ISO N10 - N30 et S01 - S20, pour l'usinage fin à moyen des métaux non ferreux et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)ECGT 2.521-SF3:H07
Product Name (ISO)ECGT 080304E-SF3:H07
GradeH07
Chipbreaker (CBMD)SF3
Product Number7168572
Product FamilyCGTE
Insert Geometry
Insert DesignTECG
Insert Shape Code (SC)F - angle inclus rhomboïde de 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.135"
Insert Thickness — mm (S)3.43 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7168572
EAN3603603171688
File Type Download

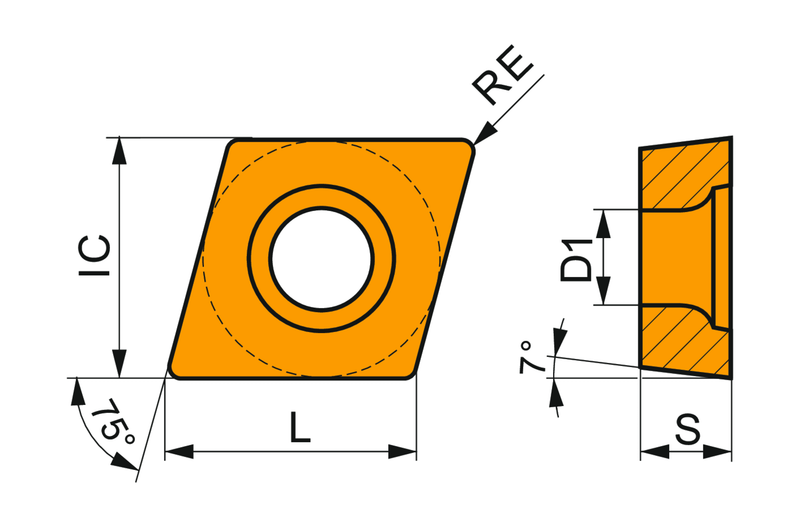

ECGT 2.521-SF3:H07 — Line Drawing PDF Download
