SCGT 32.51-SF3:T6310
SCGT 32.51-SF3:T6310

SCGT 32.51-SF3:T6310

UGC DOR7168575
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.33 CAD - $20.33 CAD
$20.33 CAD
$20.33 CAD - $20.33 CAD
$20.33 CAD

Vendu en lots de : 10

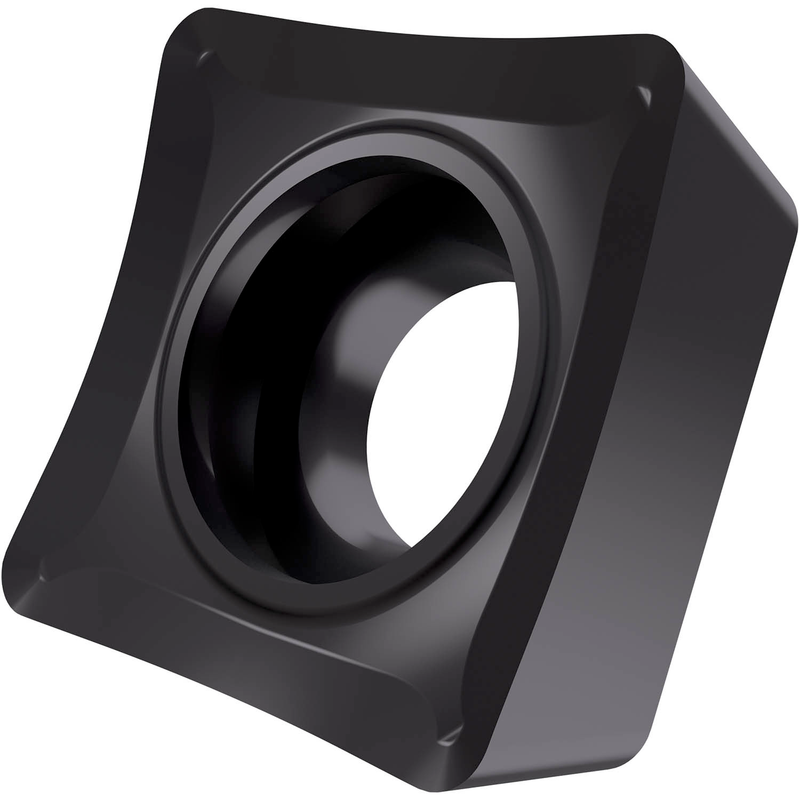

Plaquette de tournage positive simple face, carrée avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux SF3, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans les plages ISO M01 - M15/N05 - N20 et S01 - S15, pour l'usinage fin à moyen des aciers inoxydables, des métaux non ferreux et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)SCGT 32.51-SF3:T6310
Product Name (ISO)SCGT 09T304E-SF3:T6310
GradeT6310
Chipbreaker (CBMD)SF3
Product Number7168575
Product FamilyCSGT

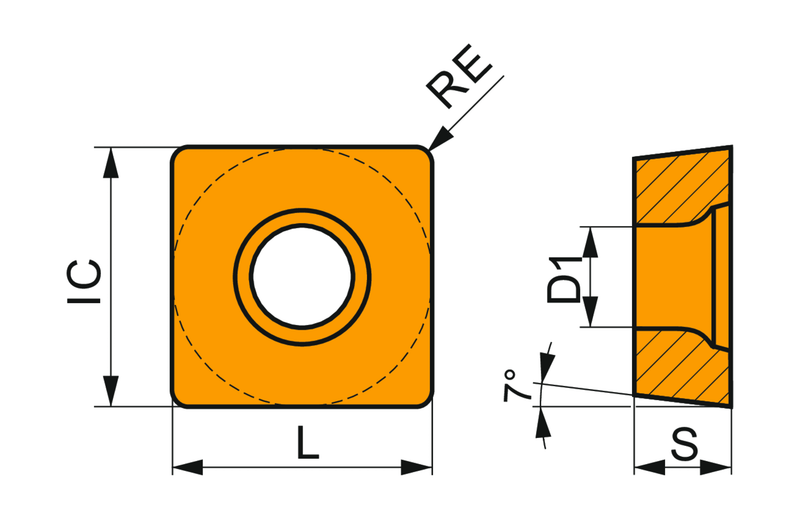

Insert Geometry
Insert DesignSCGT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.166"
Insert Thickness — mm (S)4.22 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7168575
EAN3603603171718
File Type Download
SCGT 32.51-SF3:T6310 — Line Drawing PDF Download
