TCGT 32.51-SF3:H07
TCGT 32.51-SF3:H07

TCGT 32.51-SF3:H07

UGC DOR7168584
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$15.83 CAD - $15.83 CAD
$15.83 CAD
$15.83 CAD - $15.83 CAD
$15.83 CAD

Vendu en lots de : 10

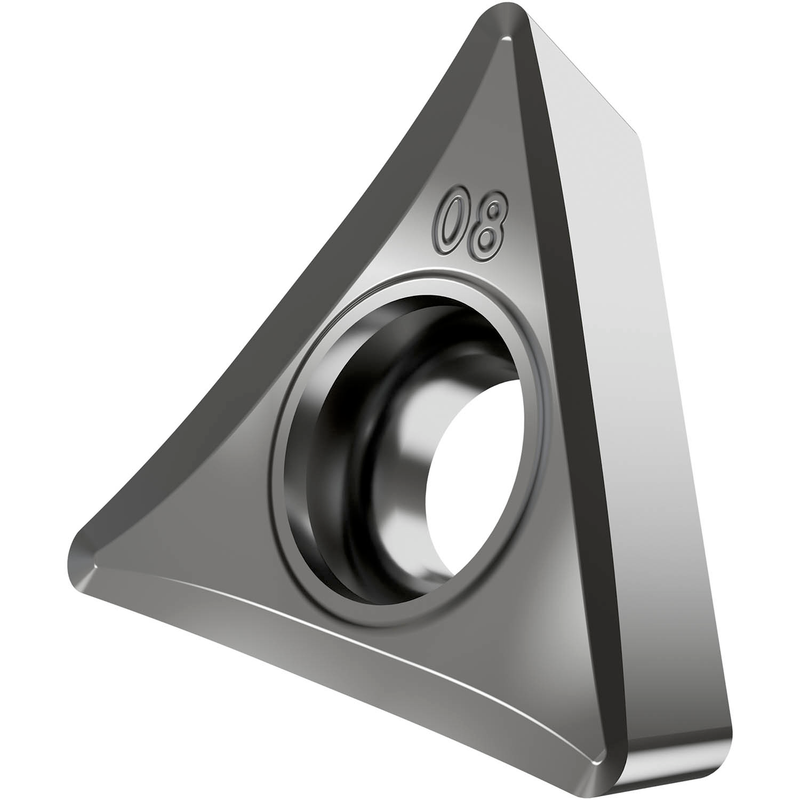

Plaquette de tournage positive simple face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux SF3, en nuance H07, un carbure WC-Co non revêtu dans les plages ISO N10 - N30 et S01 - S20, pour l'usinage fin à moyen des métaux non ferreux et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)TCGT 32.51-SF3:H07
Product Name (ISO)TCGT 16T304E-SF3:H07
GradeH07
Chipbreaker (CBMD)SF3
Product Number7168584
Product FamilyTCGT
Insert Geometry
Insert DesignTCGT
Insert Shape Code (SC)T - triangulaire avec un angle inclus de 60°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.166"
Insert Thickness — mm (S)4.22 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.098"
Depth of Cut Max — mm (APMX)2.5 mm
Tool Information
Reference Numbers
EDP Number7168584
EAN3603603171800
File Type Download
TCGT 32.51-SF3:H07 — Line Drawing PDF Download
