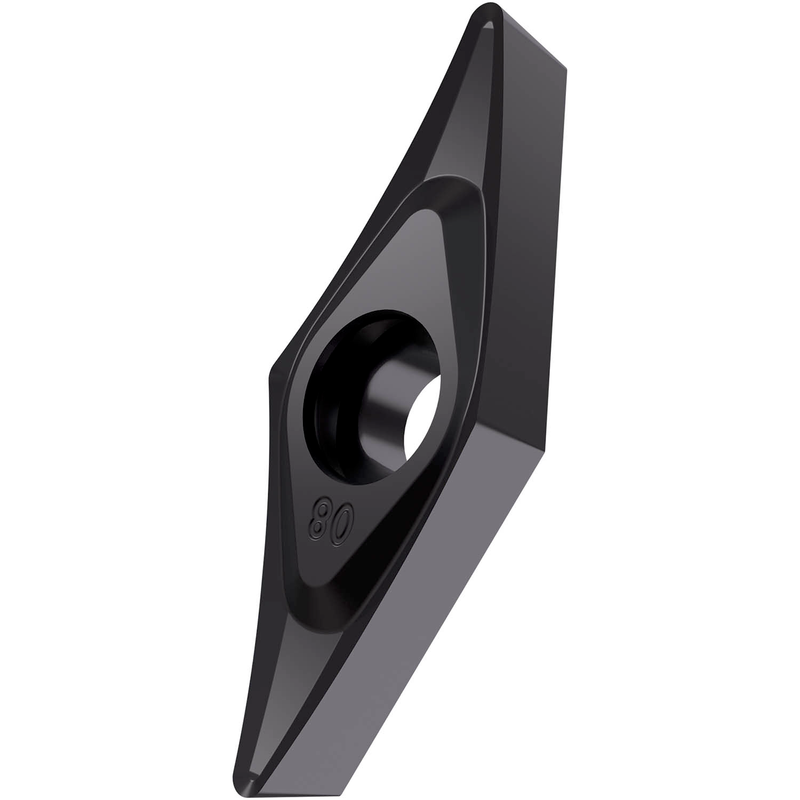

VCGT 1.21.51-SF3:T6310
VCGT 1.21.51-SF3:T6310

VCGT 1.21.51-SF3:T6310

UGC DOR7168592
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.64 CAD - $23.64 CAD
$23.64 CAD
$23.64 CAD - $23.64 CAD
$23.64 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde à 35° avec dépouille de 7°, diamètre du cercle inscrit de 5/32", épaisseur de 3/32", rayon de bec de 1/64" et précision d'indexage selon la classe de tolérance ISO G, brise-copeaux SF3, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD, dans les plages ISO M01 - M15/N05 - N20 et S01 - S15, pour l'usinage fin à moyen des aciers inoxydables, des métaux non ferreux et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)VCGT 1.21.51-SF3:T6310
Product Name (ISO)VCGT 070204E-SF3:T6310
GradeT6310
Chipbreaker (CBMD)SF3
Product Number7168592
Product FamilyVCGT
Insert Geometry
Insert DesignVCGT
Insert Shape Code (SC)V - angle de 35° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.156"
Inscribed Circle Dia. — mm (IC)3.97 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.071"
Depth of Cut Max — mm (APMX)1.8 mm
Tool Information
Reference Numbers
EDP Number7168592
EAN3603603171886
File Type Download
VCGT 1.21.51-SF3:T6310 — Line Drawing PDF Download
