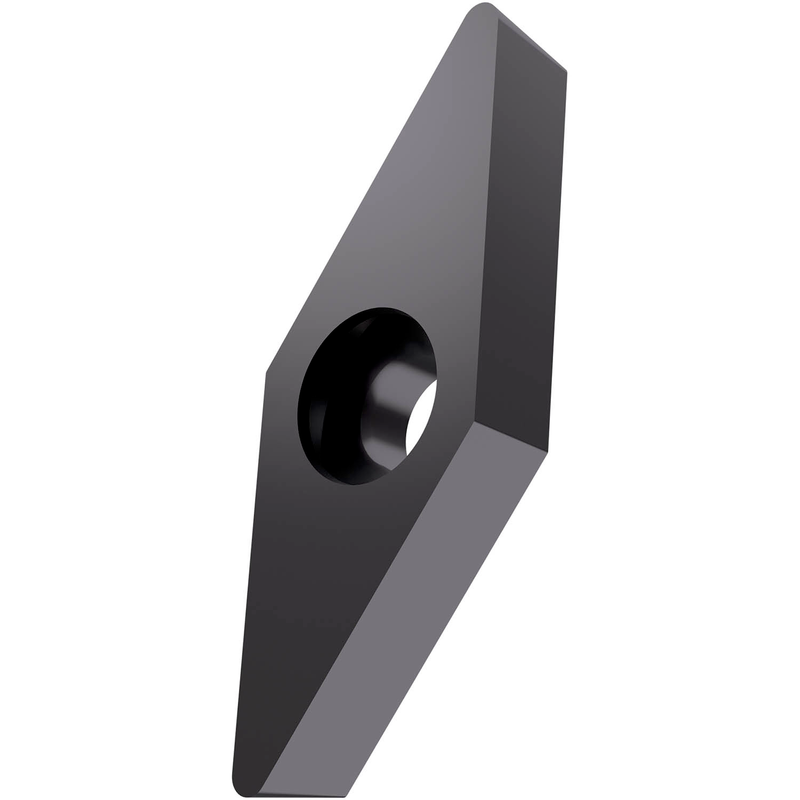

VCMW 332:T6310
VCMW 332:T6310

VCMW 332:T6310

UGC DOR7168656
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.97 CAD - $21.97 CAD
$21.97 CAD
$21.97 CAD - $21.97 CAD
$21.97 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, rhomboïde 35° avec dépouille 7°, diamètre du cercle inscrit de 3/8", épaisseur 3/16", rayon de bec de 1/32" et précision d'indexage selon la classe de tolérance ISO M, en nuance T6310, un carbure WC-Co à grain extra-fin revêtu PVD de la gamme ISO K05 - K20, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)VCMW 332:T6310
Product Name (ISO)VCMW 160408:T6310
GradeT6310
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7168656
Product FamilyVMVC
Insert Geometry
Insert DesignCMVV
Insert Shape Code (SC)V - angle de pointe 35°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.146"
Depth of Cut Max — mm (APMX)3.7 mm
Tool Information
Reference Numbers
EDP Number7168656
EAN3603603172302
File Type Download
VCMW 332:T6310 — Line Drawing PDF Download
