RCMT 10T3MOE-UR:T6310
RCMT 10T3MOE-UR:T6310

RCMT 10T3MOE-UR:T6310

UGC DOR7168661
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$12.19 CAD - $12.19 CAD
$12.19 CAD
$12.19 CAD - $12.19 CAD
$12.19 CAD

Vendu en lots de : 10

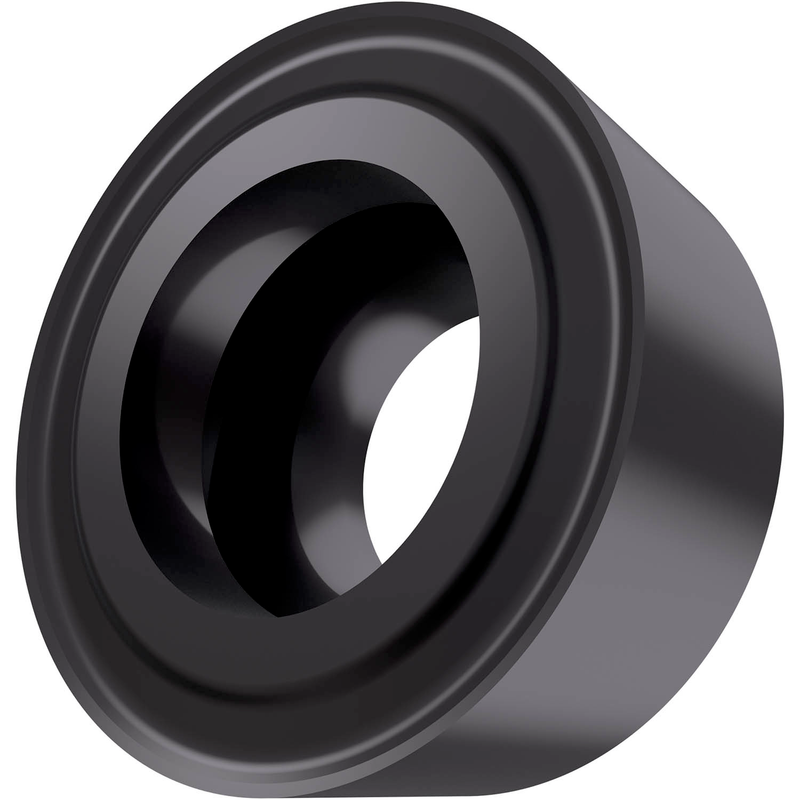

Plaquette de tournage positive simple face, ronde avec dépouille de 7°, diamètre de 10mm, épaisseur de 3.97mm, précision d'indexage selon classe de tolérance ISO-M, brise-copeaux UR avec arêtes de coupe arrondies, en nuance T6310, un carbure WC-Co à grains extra fins revêtu PVD dans la gamme ISO M01-M15, pour usinage fin à lourd des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 10T3MOE-UR:T6310
GradeT6310
Chipbreaker (CBMD)VOUS
Product Number7168661
Product FamilyCRMT
Insert Geometry
Insert DesignCRM-T
Insert Shape Code (SC)R - tour
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number7168661
EAN3603603172357
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Usage possible
K — Cast Iron Usage principal
File Type Download
RCMT 10T3MOE-UR:T6310 — Line Drawing PDF Download
