RCMT 1204MOE-UR:T6310
RCMT 1204MOE-UR:T6310

RCMT 1204MOE-UR:T6310

UGC DOR7168662
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.07 CAD - $17.07 CAD
$17.07 CAD
$17.07 CAD - $17.07 CAD
$17.07 CAD

Vendu en lots de : 10

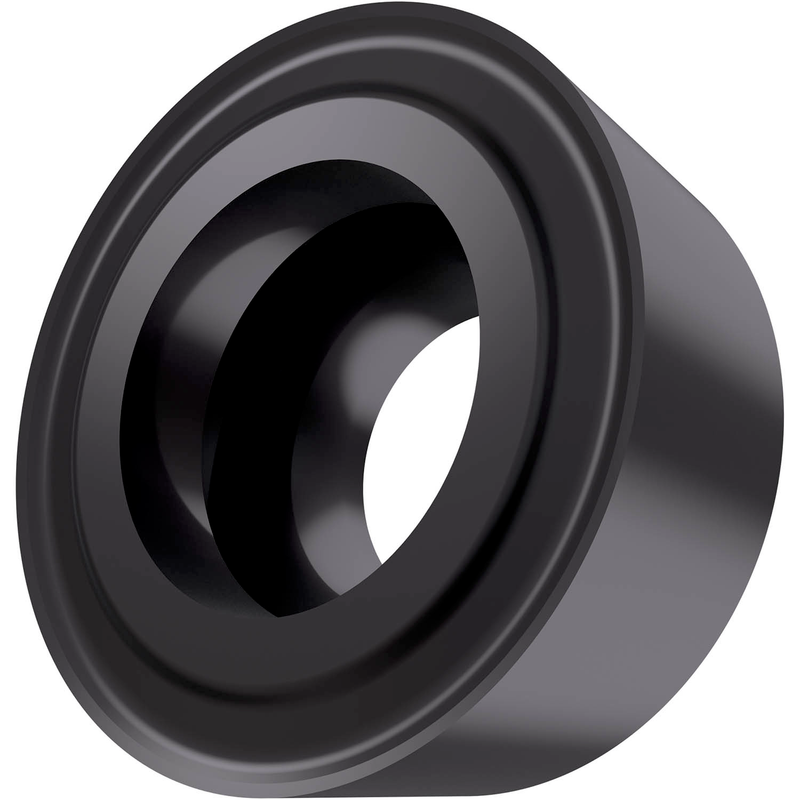

Plaquette de tournage positive à simple face, ronde avec un dépouille de 7°, un diamètre de 12 mm, 4,76 mm d'épaisseur, une précision d'indexage selon la classe de tolérance ISO M, un brise-copeaux UR avec arêtes de coupe arrondies, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD dans la gamme ISO M01-M15, pour l'usinage fin à lourd des aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 1204MOE-UR:T6310
GradeT6310
Chipbreaker (CBMD)VOUS
Product Number7168662
Product FamilyCRMT
Insert Geometry
Insert DesignRCMT
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.189"
Depth of Cut Max — mm (APMX)4.8 mm
Tool Information
Reference Numbers
EDP Number7168662
EAN3603603172364
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Usage principal
File Type Download
RCMT 1204MOE-UR:T6310 — Line Drawing PDF Download
