ECMW 21.51:H07
ECMW 21.51:H07

ECMW 21.51:H07

UGC DOR7168663
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$8.90 CAD - $8.90 CAD
$8.90 CAD
$8.90 CAD - $8.90 CAD
$8.90 CAD

Vendu en lots de : 10

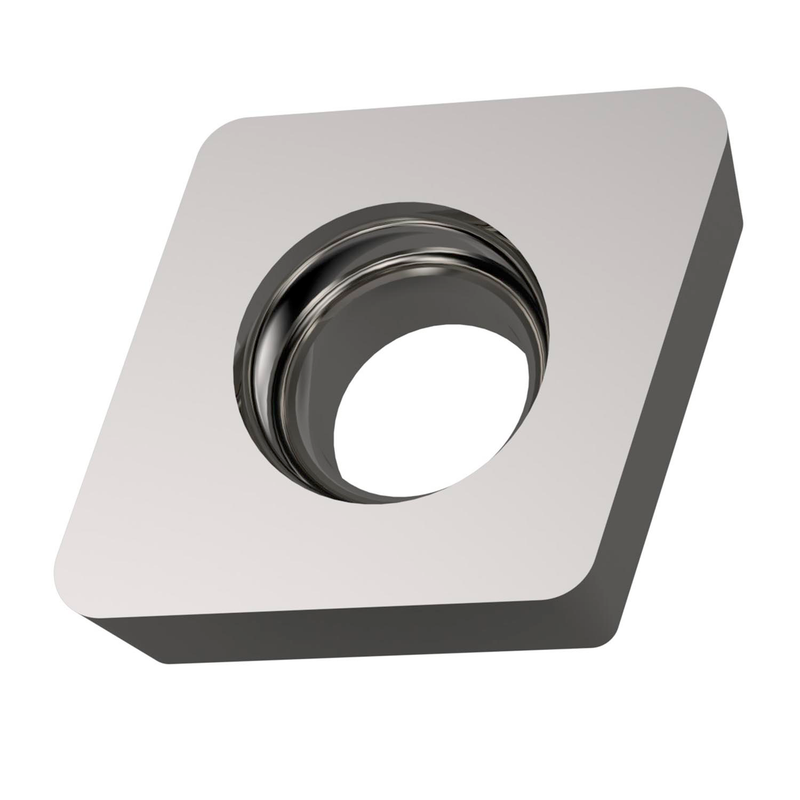

Plaquette de tournage positive simple face, rhomboïdale 75° avec dépouille 7°, diamètre du cercle inscrit de 1/4", épaisseur 3/32", rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO M, en nuance H07, un carbure WC-Co non revêtu de la gamme ISO K10-K25, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)ECMW 21.51:H07
Product Name (ISO)CECM 060204:H07
GradeH07
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7168663
Product FamilyECMW

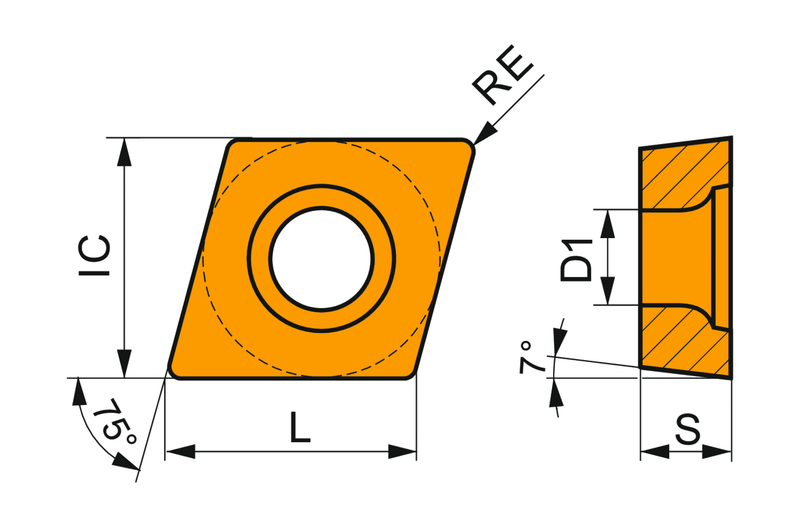

Insert Geometry
Insert DesignCEPM
Insert Shape Code (SC)E - angle inclus rhomboïdal 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.25"
Inscribed Circle Dia. — mm (IC)6.35 mm
Insert Thickness — in (S)0.094"
Insert Thickness — mm (S)2.38 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.165"
Depth of Cut Max — mm (APMX)4.2 mm
Tool Information
Reference Numbers
EDP Number7168663
EAN3603603172371
File Type Download
ECMW 21.51:H07 — Line Drawing PDF Download
