ECMW 2.521:H07
ECMW 2.521:H07

ECMW 2.521:H07

UGC DOR7168664
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$9.19 CAD - $9.19 CAD
$9.19 CAD
$9.19 CAD - $9.19 CAD
$9.19 CAD

Vendu en lots de : 10

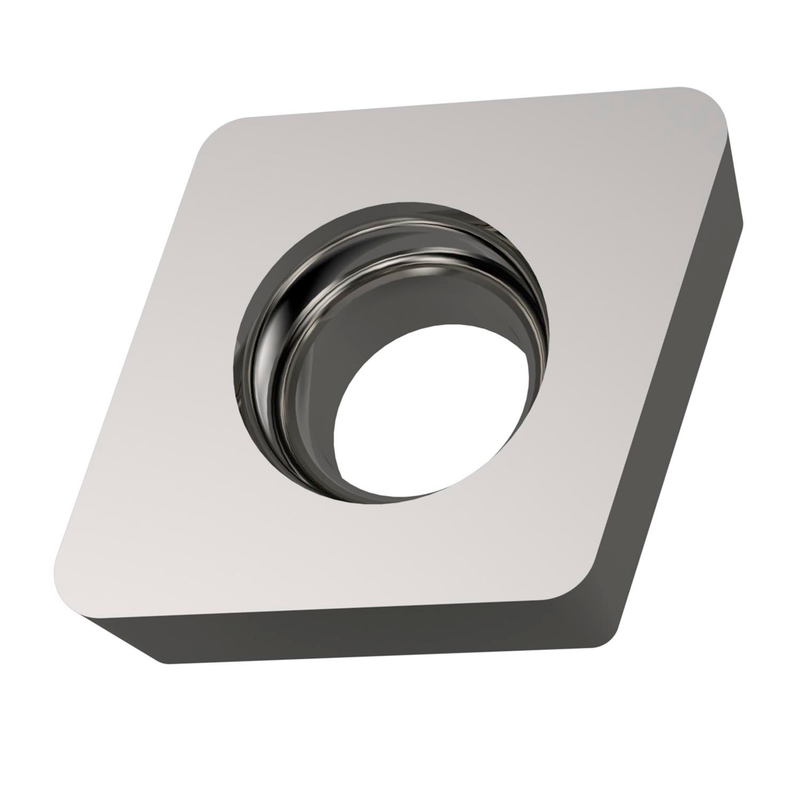

Plaquette de tournage positive simple face, rhomboïde 75° avec dépouille 7°, diamètre du cercle inscrit de 5/16", 1/8" d'épaisseur, rayon de bec 1/64" et précision de positionnement selon la classe de tolérance ISO-M, en nuance H07, un carbure WC-Co non revêtu dans la plage ISO K10-K25, pour l'usinage fin à moyen des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)ECMW 2.521:H07
Product Name (ISO)ECMW 080304:H07
GradeH07
Chipbreaker (CBMD)Sans brise-copeaux
Product Number7168664
Product FamilyCEPMMT

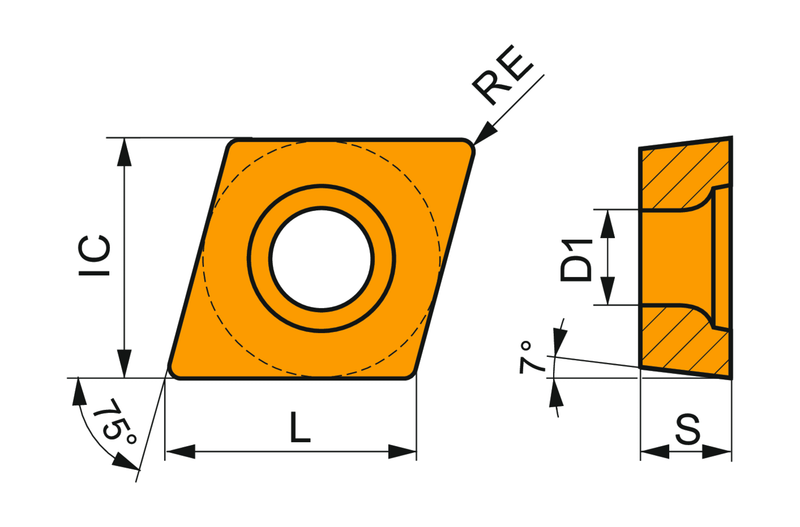

Insert Geometry
Insert DesignCEPMMT
Insert Shape Code (SC)F - angle inclus rhomboïde de 75°
Insert Geometry
Inscribed Circle Dia. — in (IC)0.313"
Inscribed Circle Dia. — mm (IC)7.94 mm
Insert Thickness — in (S)0.125"
Insert Thickness — mm (S)3.18 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.22"
Depth of Cut Max — mm (APMX)5.6 mm
Tool Information
Reference Numbers
EDP Number7168664
EAN3603603172388
File Type Download
ECMW 2.521:H07 — Line Drawing PDF Download
