E289M6
E289M6
E289M6

E289M6

UGC DOR7174065
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$111.07 CAD - $111.07 CAD
$111.07 CAD
$111.07 CAD - $111.07 CAD
$111.07 CAD

Vendu en lots de : 1

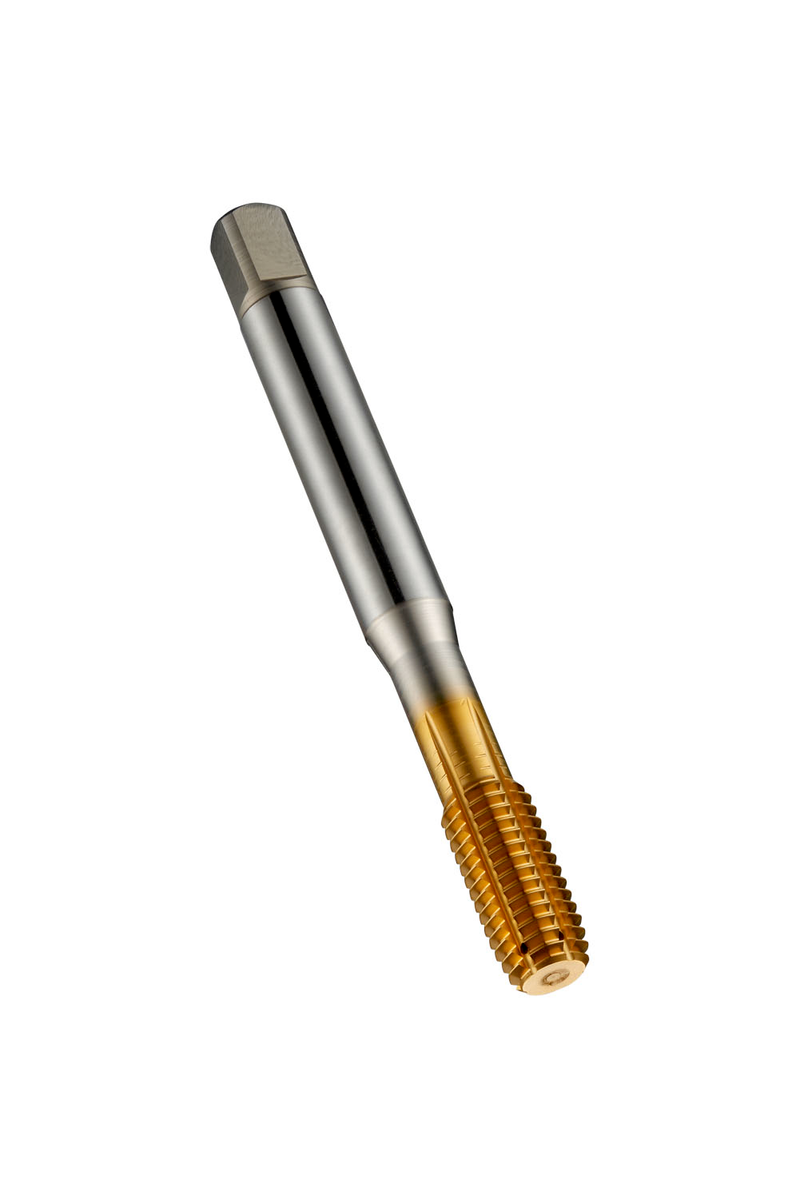

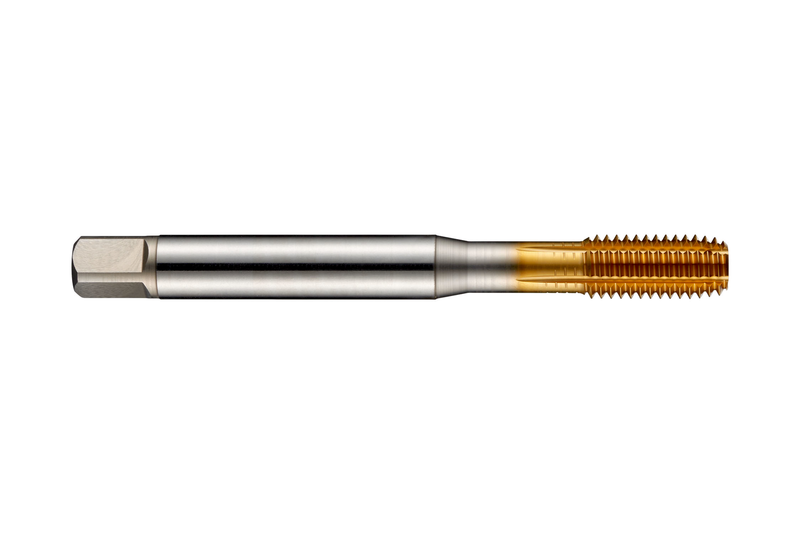

Taraud à refouler avec gorges de lubrification, cône d'entrée forme C de 2-3 filets, pour filet métrique ISO M6 au pas de 1,00 mm et de classe de tolérance 6HX, dimensions selon norme DIN 2174 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en HSS-E avec revêtement TiN pour le taraudage de trous débouchants ou borgnes jusqu'à 3,5xD dans les aciers et aciers moulés, les aciers inoxydables et les aluminiums corroyés ou moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E289M6
GradeTiN
Product Number7174065
Product FamilyE289

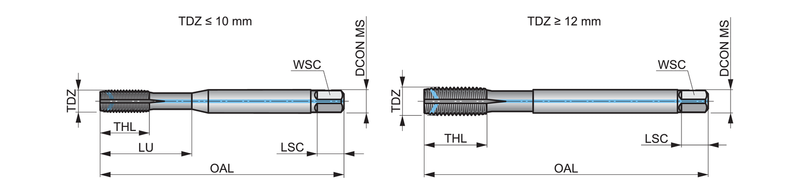

Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio3.5
Usable Length — in (LU)1.1811"
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
Through Coolant Yes
StandardDIN 2174
Reference Numbers
EDP Number47174065
EAN7320760704349
File Type Download
E289M6 — Line Drawing PDF Download
