E2876-32
E2876-32
E2876-32

E2876-32

UGC DOR7174106
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$75.61 CAD - $75.61 CAD
$75.61 CAD
$75.61 CAD - $75.61 CAD
$75.61 CAD

Vendu en lots de : 1

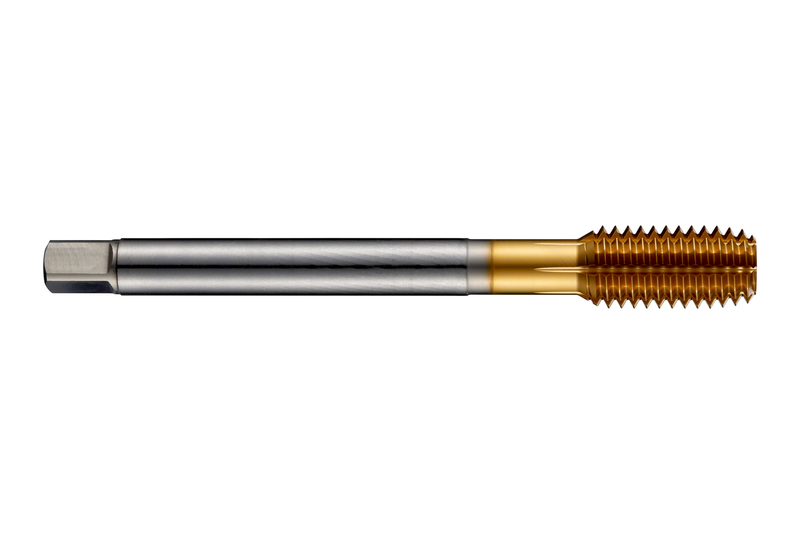

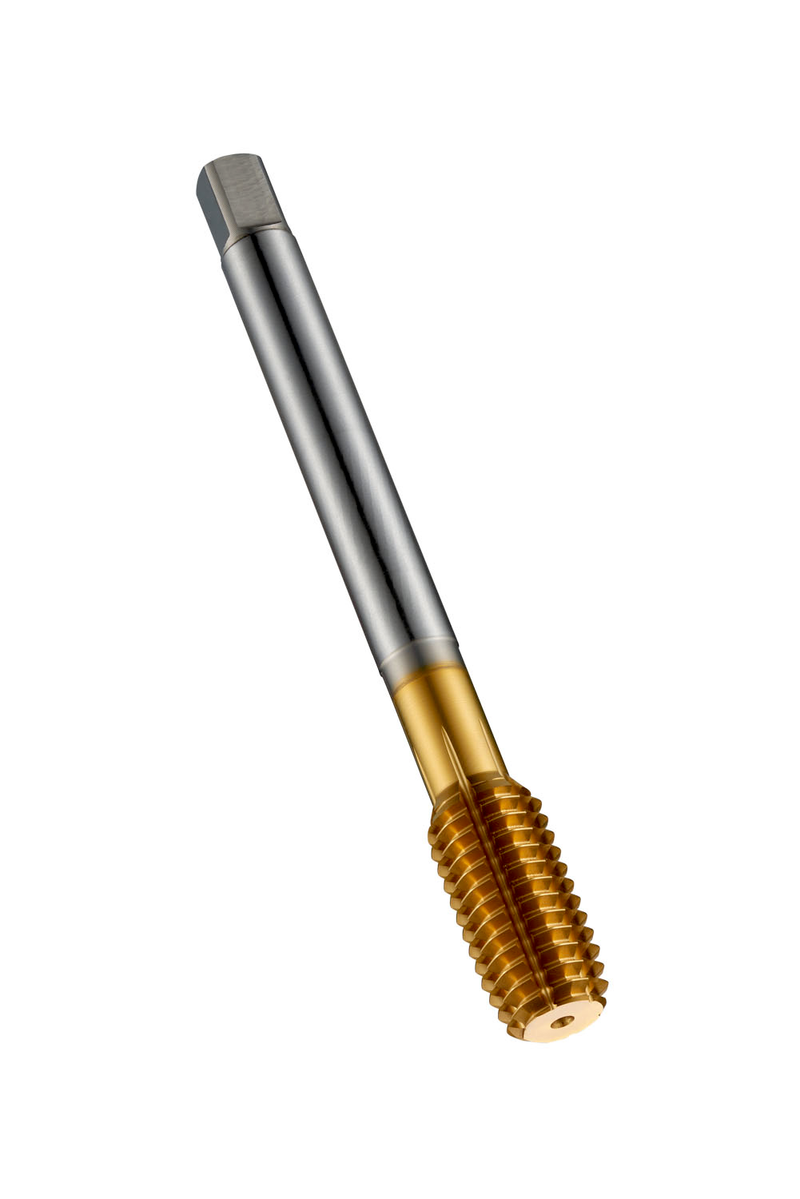

Taraud à refouler avec gorges de lubrification avec entrée C 2-3xP, pour filet UNC 6 à 32 filets par pouce et tolérance 2BX, dimensions selon DIN 2184-1 avec queue de 4,0mm et carré d'entraînement de 3,0mm, en HSS-E cobalt avec revêtement TiN pour le taraudage de trous débouchants ou borgnes jusqu'à 3,5xD dans les aciers et aciers moulés, les aciers inoxydables et les aluminiums corroyés ou coulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E2876-32
GradeTiN
Product Number7174106
Product FamilyE287

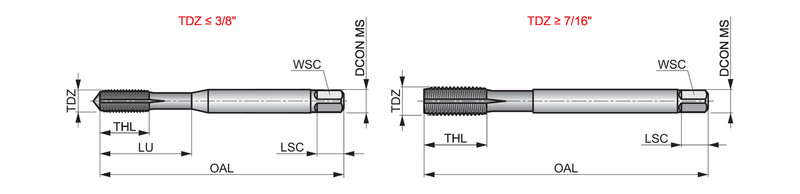

Dimensions
Overall Length — in (OAL)2.2047"
Overall Length — mm (OAL)56.0 mm
Length × Diameter Ratio3.5
Usable Length — in (LU)0.7874"
Usable Length — mm (LU)20.0 mm
Connection Dia. — in (DCON)0.1575"
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)6
Thread Diameter — in (TD)0.138"
Thread Diameter — mm (TD)3.505 mm
Thread Form (THFT)UNC - Gros unifié
Threads per Inch (TPI)32.0
Tool Information
ShankTige cylindrique avec carré
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number47174106
EAN7320760704455
File Type Download
E2876-32 — Line Drawing PDF Download
