E2877/16
E2877/16
E2877/16

E2877/16

UGC DOR7174112
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$144.96 CAD - $144.96 CAD
$144.96 CAD
$144.96 CAD - $144.96 CAD
$144.96 CAD

Vendu en lots de : 1

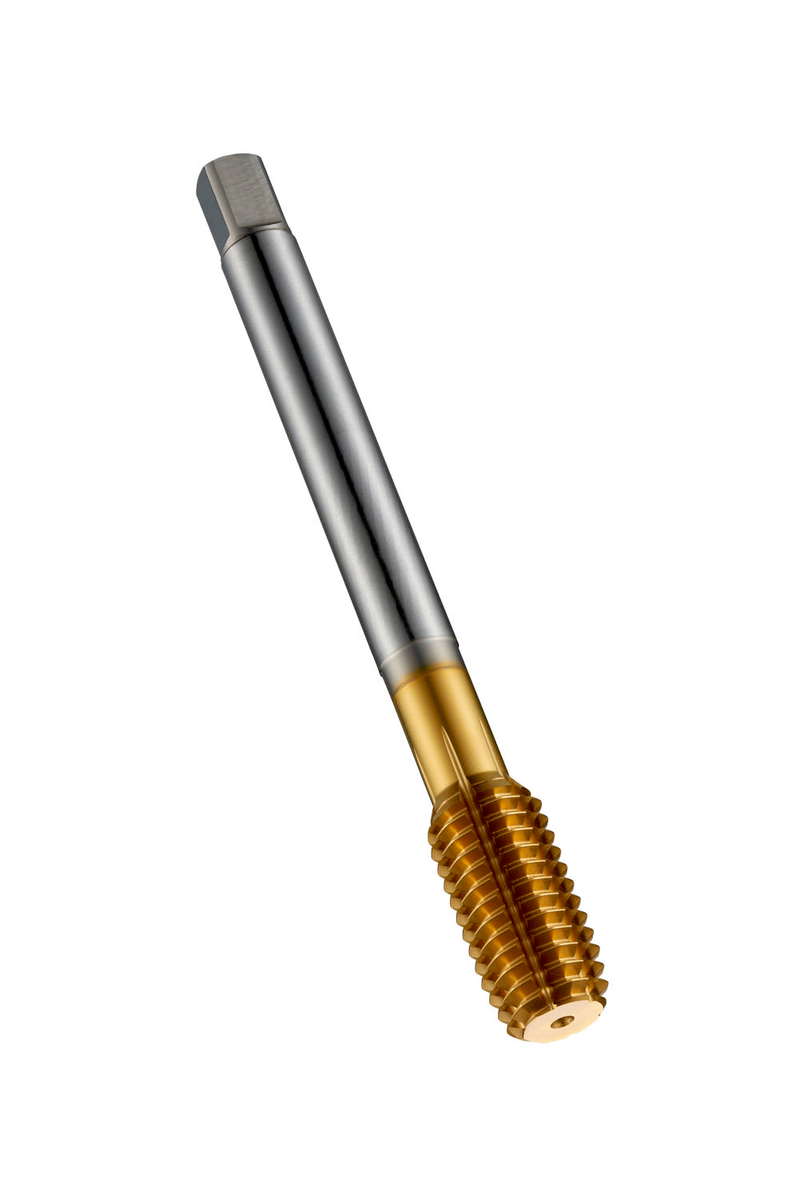

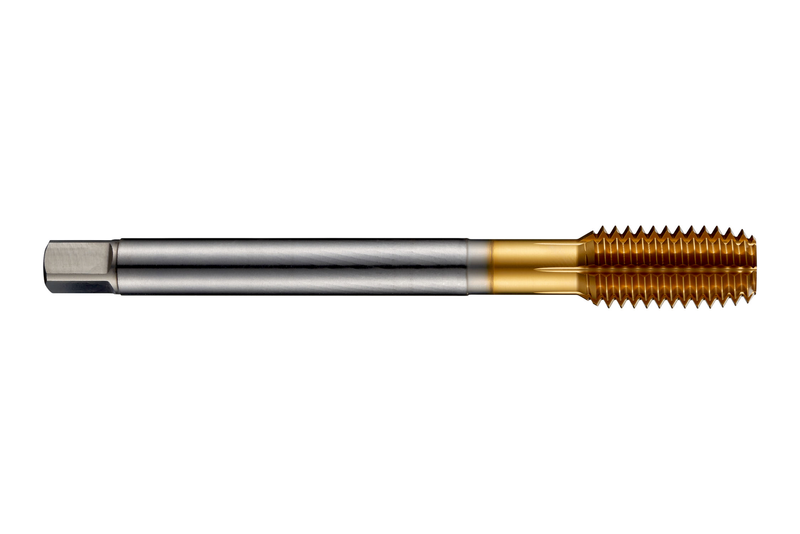

Taraud à refouler à gorges de lubrification et entrée C (2-3 filets), pour filetage Unified National Coarse UNC 7/16" au pas de 14 filets/pouce et tolérance 2BX, dimensions selon norme DIN 2184-1 avec queue de 8,0mm et carré d'entraînement de 6,2mm, en HSS-E cobalt avec revêtement TiN pour taraudage de trous débouchants ou borgnes jusqu'à 3,5xD dans les aciers et aciers moulés, les aciers inoxydables et les aluminiums corroyés ou moulés

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E2877/16
GradeTiN
Product Number7174112
Product FamilyE287

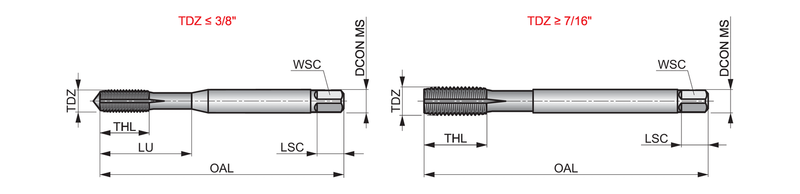

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio3.5
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)16/7
Thread Diameter — in (TD)0.4375"
Thread Diameter — mm (TD)11.112 mm
Thread Form (THFT)UNC - Pas américain unifié gros
Threads per Inch (TPI)14.0
Tool Information
ShankTige cylindrique à carré
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number47174112
EAN7320760704516
File Type Download
E2877/16 — Line Drawing PDF Download
