E2865/16
E2865/16
E2865/16

E2865/16

UGC DOR7174119
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$115.76 CAD - $115.76 CAD
$115.76 CAD
$115.76 CAD - $115.76 CAD
$115.76 CAD

Vendu en lots de : 1

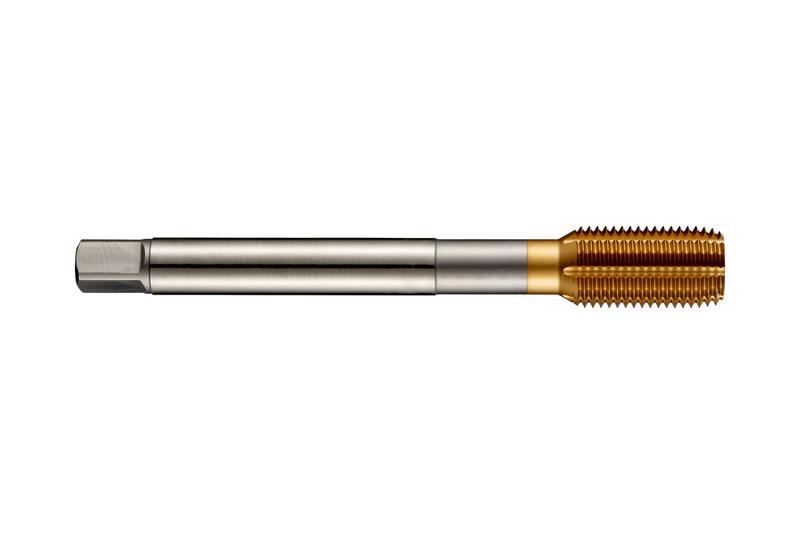

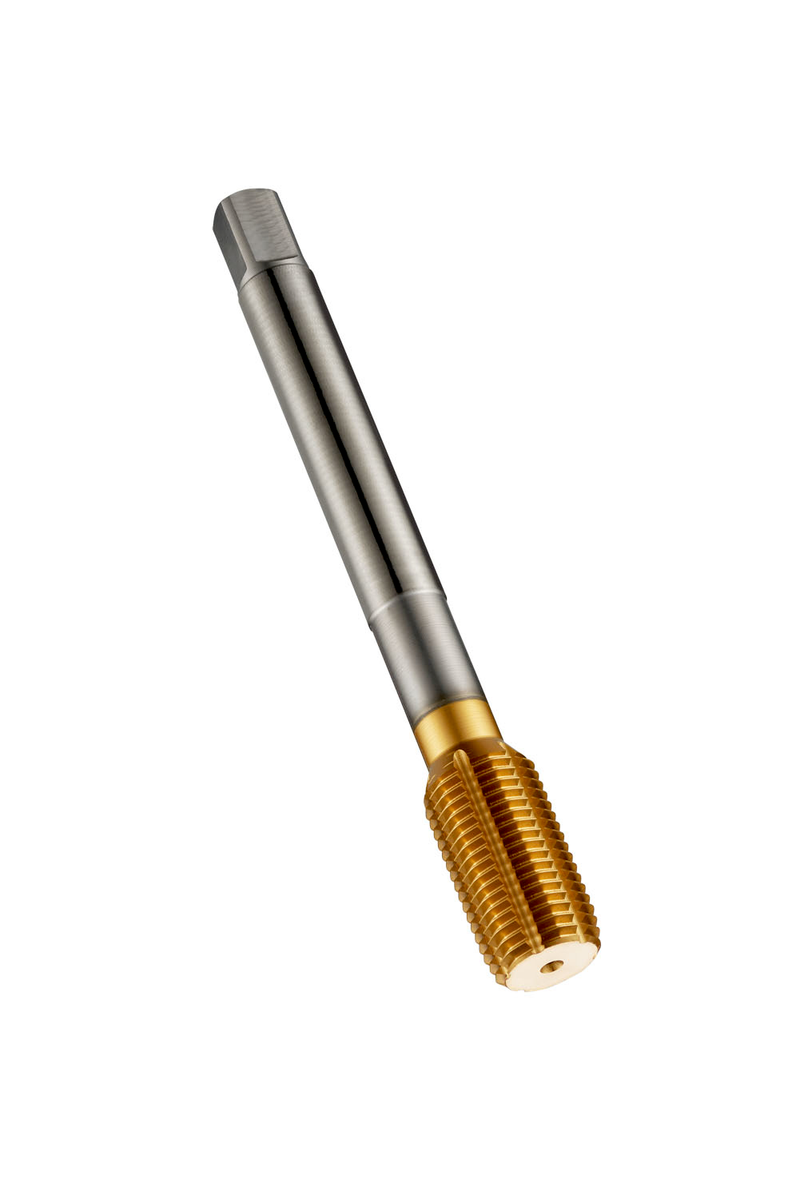

Taraud à refouler avec gorges de lubrification, chanfrein forme C, entrée 2-3xP, pour filetages Unified National Fine UNF 5/16" avec 24 filets par pouce et classe de tolérance 2BX, dimensions selon la norme DIN 2184-1 avec queue de 8,0mm et carré d'entraînement de 6,2mm, HSS-E au cobalt avec revêtement TiN pour taraudage de trous débouchants ou borgnes jusqu'à 3.5xD dans l'acier et l'acier moulé, l'acier inoxydable et l'aluminium forgé ou moulé

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E2865/16
GradeTiN
Product Number7174119
Product FamilyE286
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio3.5
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)16 mai
Thread Diameter — in (TD)0.3125"
Thread Diameter — mm (TD)7.938 mm
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)24.0
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number47174119
EAN7320760704585
File Type Download
E2865/16 — Line Drawing PDF Download
