20A3R032B20-STN10-C
20A3R032B20-STN10-C
20A3R032B20-STN10-C

20A3R032B20-STN10-C

UGC DOR7178495
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$356.00 CAD - $356.00 CAD
$356.00 CAD
$356.00 CAD - $356.00 CAD
$356.00 CAD

Vendu en lots de : 1

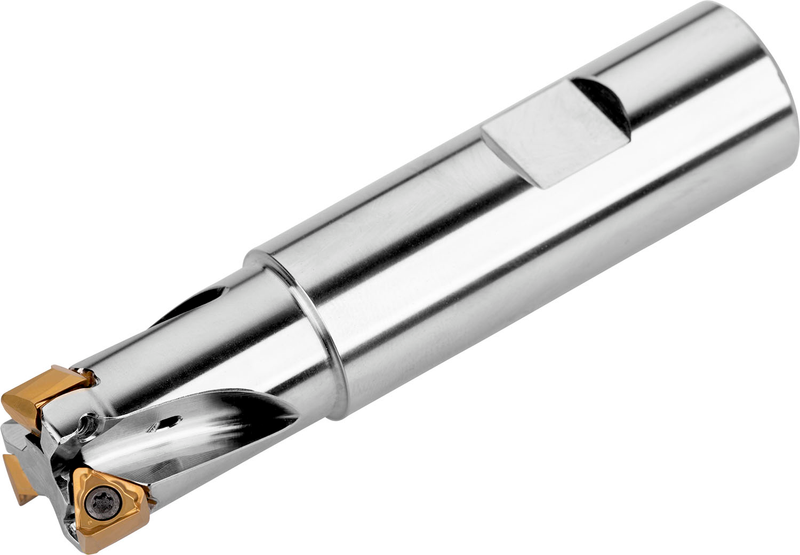

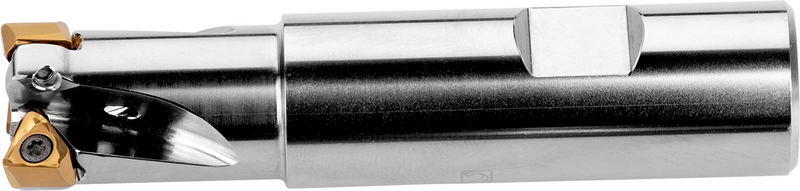

Fraise à surfacer-équarrir avec géométrie double négative utilisant 3 plaquettes double face TNGX 1004.., diamètre de coupe 20mm avec un angle d'attaque de 90° et une queue Weldon de 20mm selon DIN 1835B, longueur fonctionnelle de 32mm et longueur totale de 90mm, arrosage par l'intérieur pour le surfaçage, le fraisage d'épaulements peu profonds et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 5.0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20A3R032B20-STN10-C
Product Number7178495
Product FamilySTN10
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

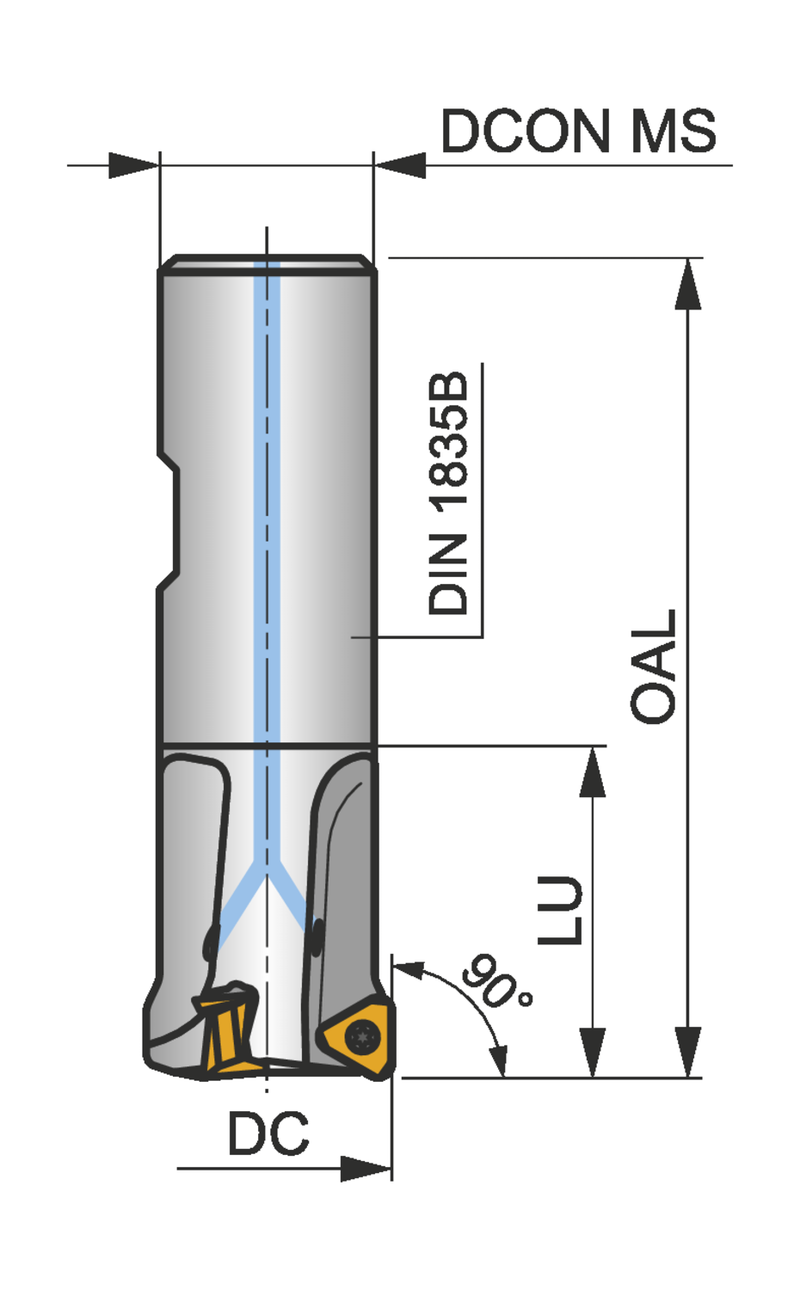

Dimensions
Cutting Diameter — in (DC)0.787"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)90.0 mm
Usable Length — mm (LU)32.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSTN10
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7178495
EAN3603603173187
File Type Download
20A3R032B20-STN10-C — 3D Model STP Download
20A3R032B20-STN10-C — 2D Model DXF Download
20A3R032B20-STN10-C — Line Drawing PDF Download
