25A4R042B25-STN10-C
25A4R042B25-STN10-C
25A4R042B25-STN10-C

25A4R042B25-STN10-C

UGC DOR7178497
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$389.00 CAD - $389.00 CAD
$389.00 CAD
$389.00 CAD - $389.00 CAD
$389.00 CAD

Vendu en lots de : 1

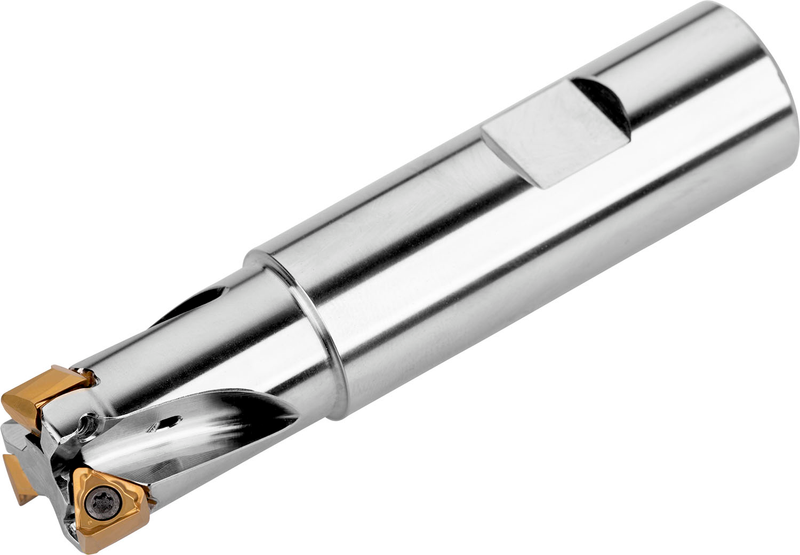

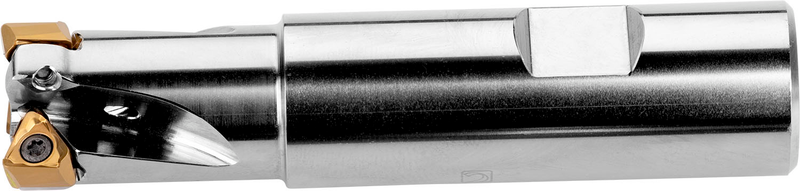

Fraise à surfacer d'épaulement à géométrie double négative utilisant 4 plaquettes double face TNGX 1004.., diamètre de coupe 25 mm avec angle d'attaque de 90° et queue Weldon de 25 mm selon DIN 1835B, longueur fonctionnelle de 42 mm et longueur totale de 100 mm, arrosage central et pas différentiel pour le surfaçage, le fraisage d'épaulement peu profond et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 5,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25A4R042B25-STN10-C
Product Number7178497
Product FamilySTN10
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

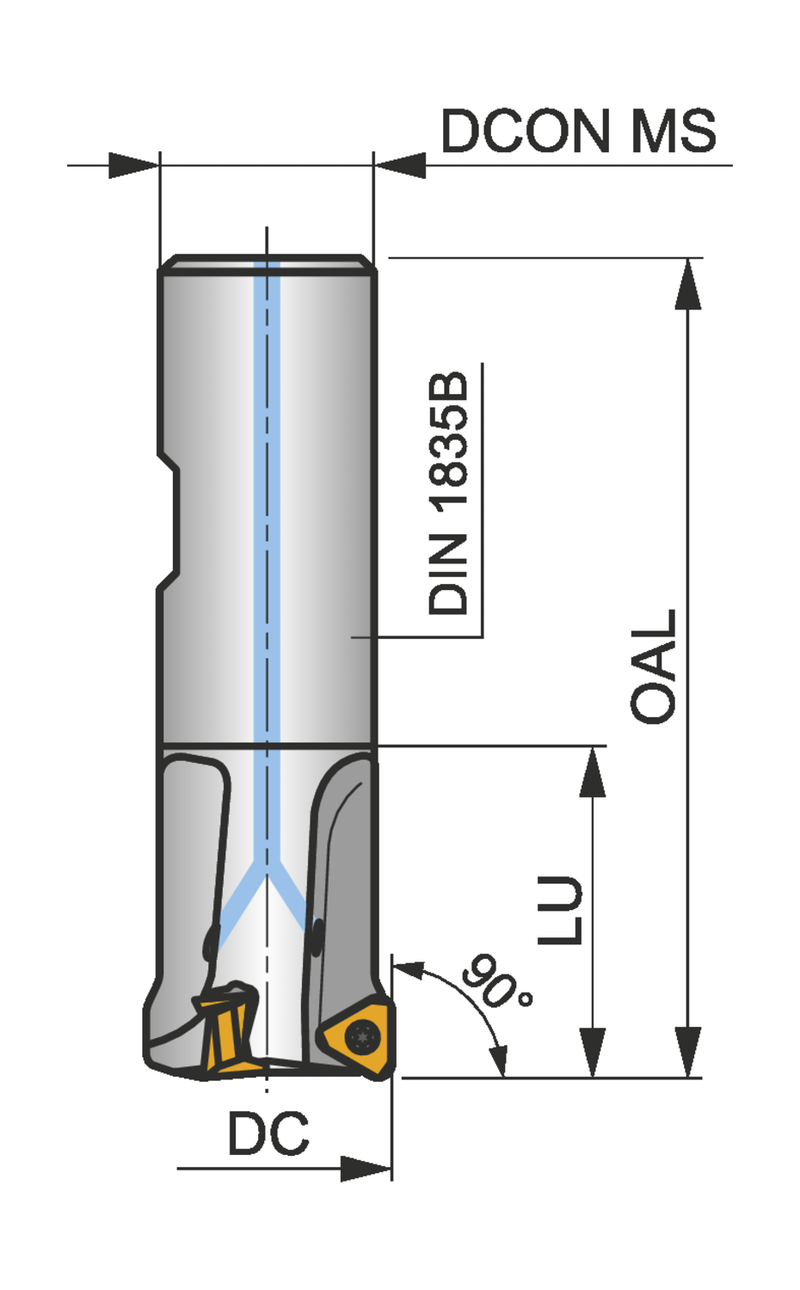

Dimensions
Cutting Diameter — in (DC)0.984"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Usable Length — mm (LU)42.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSTN10
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7178497
EAN3603603173200
File Type Download
25A4R042B25-STN10-C — 3D Model STP Download
25A4R042B25-STN10-C — 2D Model DXF Download
25A4R042B25-STN10-C — Line Drawing PDF Download
