20A2R026M10-STN10-C
20A2R026M10-STN10-C
20A2R026M10-STN10-C

20A2R026M10-STN10-C

UGC DOR7178500
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$313.00 CAD - $313.00 CAD
$313.00 CAD
$313.00 CAD - $313.00 CAD
$313.00 CAD

Vendu en lots de : 1

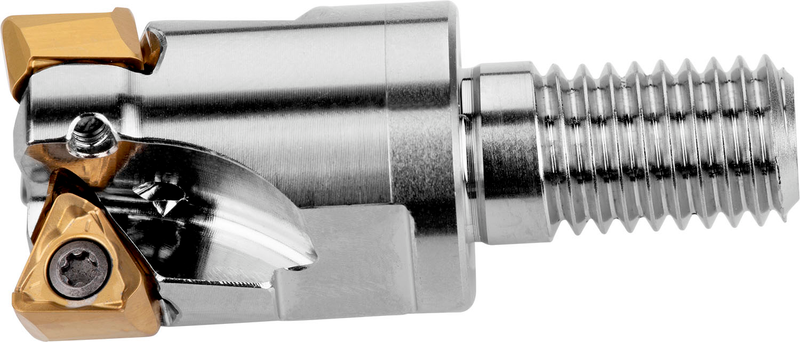

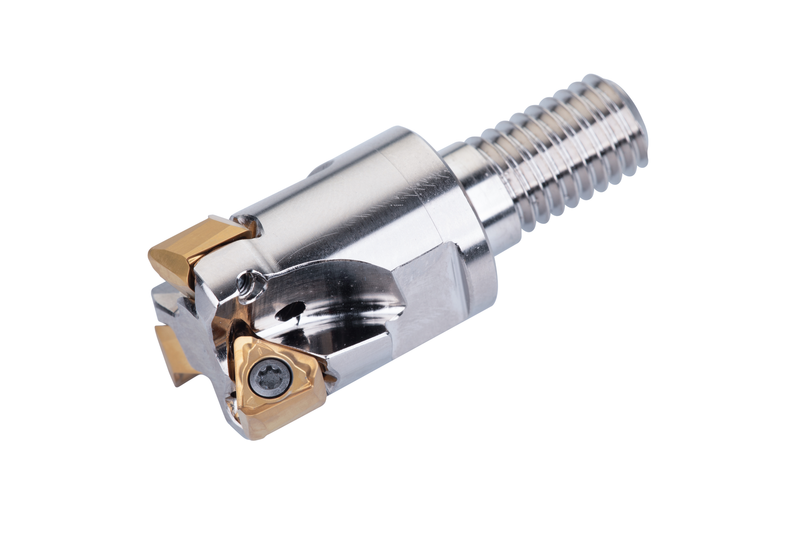

Fraise à surfacer d'épaulement à double géométrie négative utilisant 2 plaquettes double face TNGX 1004.., diamètre de coupe 20mm avec un angle d'attaque de 90° et une queue filetée M10 pour porte-outils modulaires standards, longueur de dépassement 26mm, arrosage central pour le surfaçage, le fraisage d'épaulement peu profond et le fraisage de rainures peu profondes avec une profondeur de coupe maximale de 5,0mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20A2R026M10-STN10-C
Product Number7178500
Product FamilySTN10
Insert Geometry
Depth of Cut Max — mm (APMX)5.0 mm

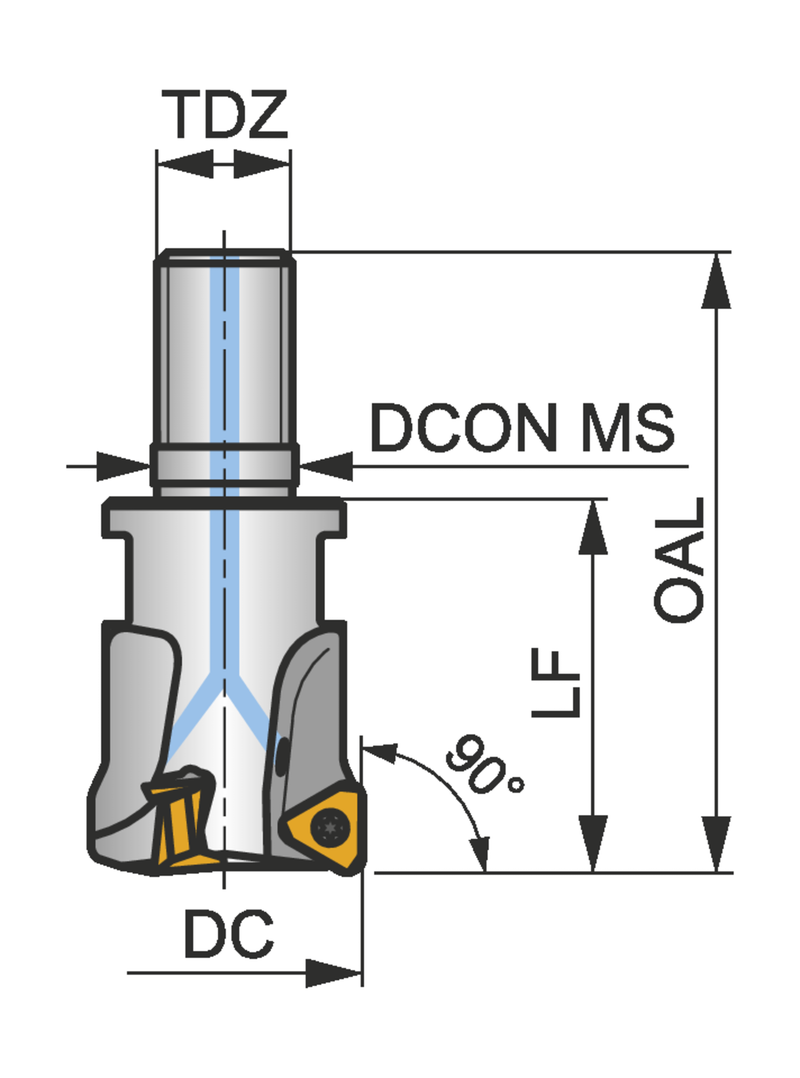

Dimensions
Cutting Diameter — in (DC)0.787"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)1.772"
Overall Length — mm (OAL)45.0 mm
Functional Length — mm (LF)26.0 mm
Connection Dia. — in (DCON)0.413"
Connection Dia. — mm (DCON)10.5 mm
Number of Flutes (NOF)2
Threading
Thread Diameter Size (TDZ)M10
Tool Information
Tool DesignSTN10
ShankAccouplement fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7178500
EAN3603603173231
File Type Download
20A2R026M10-STN10-C — 3D Model STP Download
20A2R026M10-STN10-C — 2D Model DXF Download
20A2R026M10-STN10-C — Line Drawing PDF Download
