UGC DOR7182354
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$218.43 CAD - $218.43 CAD
$218.43 CAD
$218.43 CAD - $218.43 CAD
$218.43 CAD

Vendu en lots de : 1

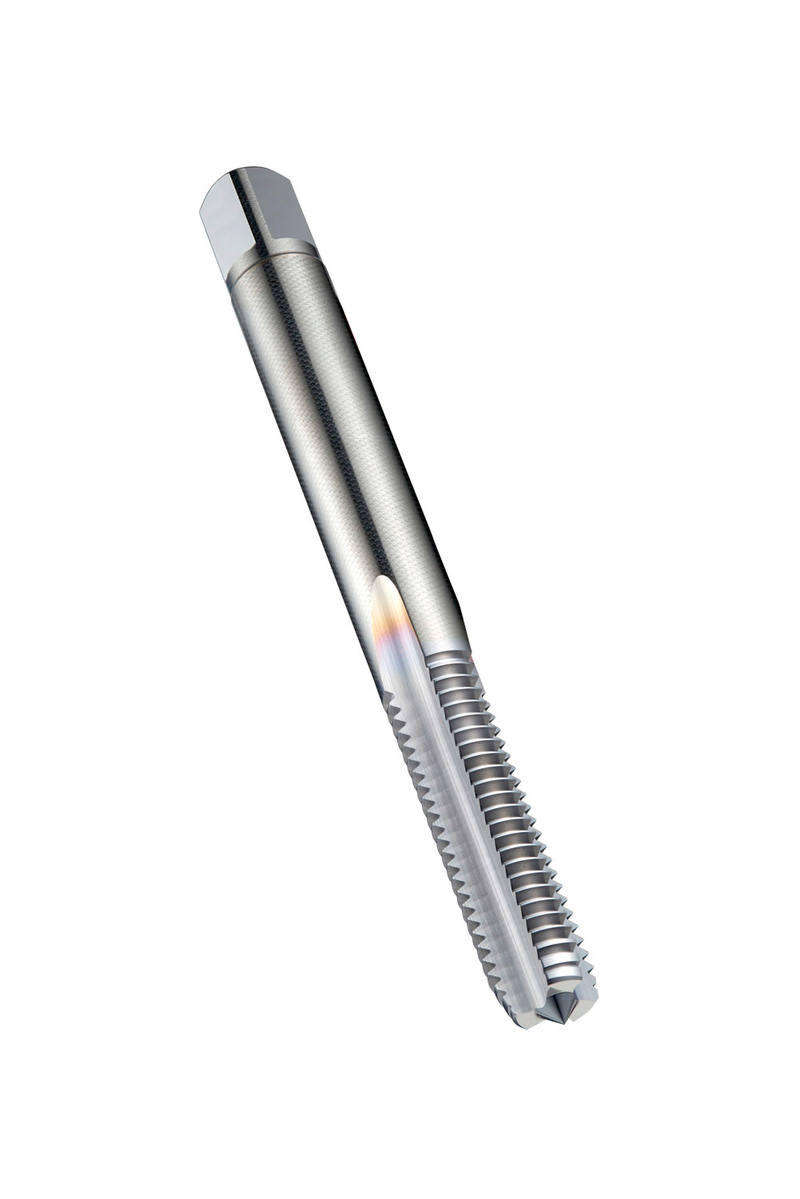

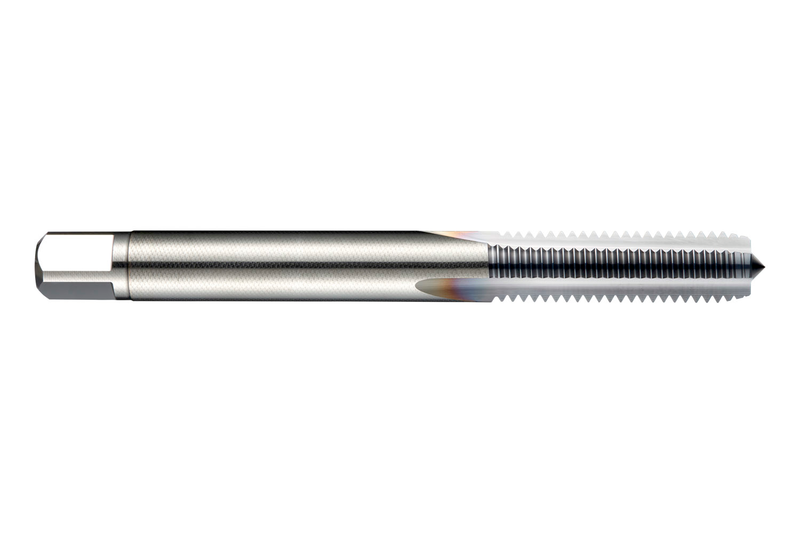

Taraud droit avec chanfrein forme C et entrée 2-3xP, pour filetage ISO-métrique M5 au pas de 0,80 mm et classe de tolérance 6H, dimensions selon la norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en carbure monobloc avec revêtement TiCN pour le taraudage de trous débouchants ou borgnes jusqu'à 2xD dans l'acier trempé ou cémenté <55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)T200M5
GradeTiCN
Product Number7182354
Product FamilyT200
Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.0315"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number47182354
EAN7320760706275
File Type Download
T200M5 — Line Drawing PDF Download
