T200M8
T200M8
T200M8

T200M8

UGC DOR7182356
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$247.50 CAD - $247.50 CAD
$247.50 CAD
$247.50 CAD - $247.50 CAD
$247.50 CAD

Vendu en lots de : 1

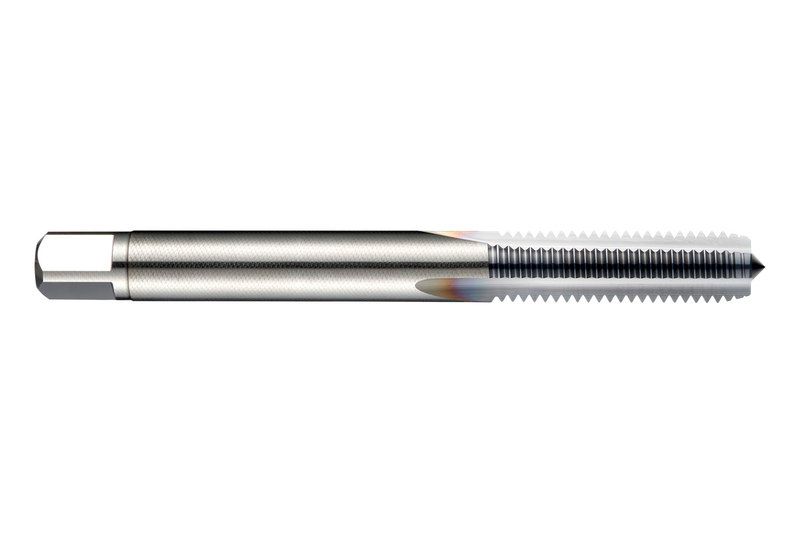

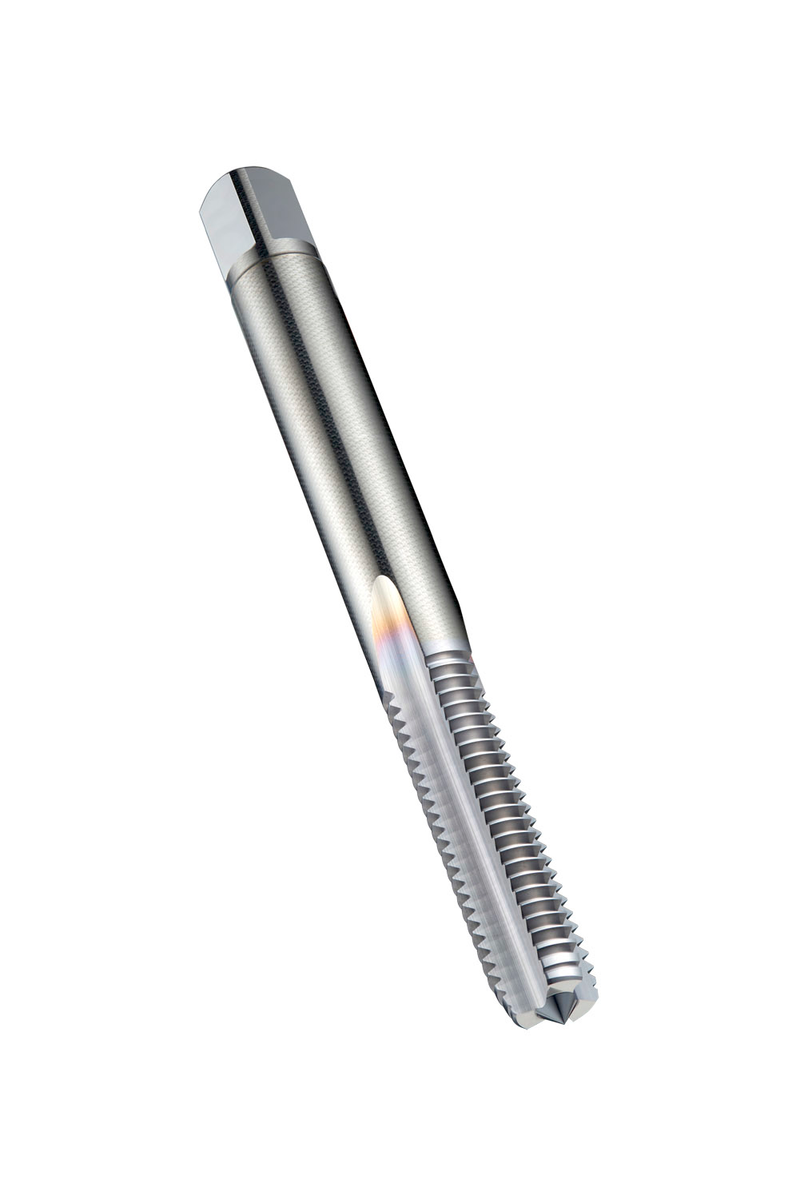

Taraud droit avec chanfrein forme C avec entrée 2-3xP, pour filetage métrique ISO M8 au pas de 1,25 mm et classe de tolérance 6H, dimensions selon la norme DIN 371 avec queue de 8,0 mm et carré d'entraînement de 6,2 mm, carbure monobloc avec revêtement TiCN pour le taraudage de trous débouchants ou borgnes jusqu'à 2xD dans les aciers trempés ou cémentés <55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)T200M8
GradeTiCN
Product Number7182356
Product FamilyT200
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique avec Carré
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number47182356
EAN7320760706299
File Type Download
T200M8 — Line Drawing PDF Download
