UGC DOR7182370
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$334.71 CAD - $334.71 CAD
$334.71 CAD
$334.71 CAD - $334.71 CAD
$334.71 CAD

Vendu en lots de : 1

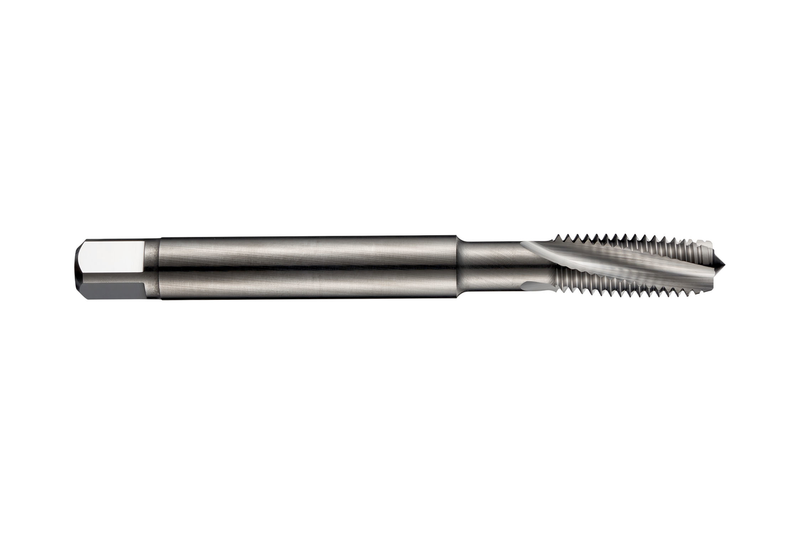

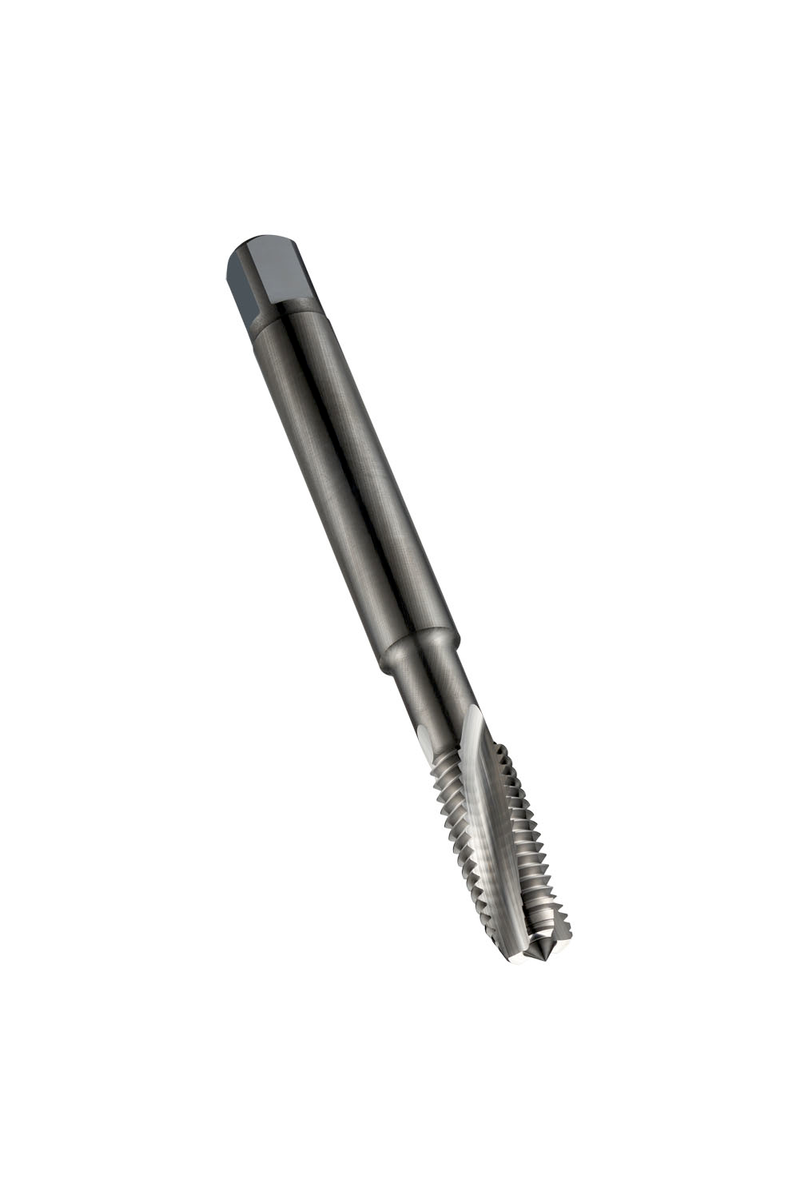

Taraud machine à goujures hélicoïdales avec chanfrein forme C (2-3 filets) pour filet métrique ISO M10 au pas de 1,50 mm et de classe de tolérance 6H, dimensions selon norme DIN 371 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en carbure monobloc, finition brillante, angle d'hélice de 15°, pour le taraudage de trous borgnes jusqu'à 2xD dans la fonte malléable, la fonte GS (à graphite sphéroïdal) austénitique ou austénitisée trempée, la fonte à graphite compacté et les alliages d'aluminium de fonderie

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)T205M10
GradeLumineux
Product Number7182370
Product FamilyT205

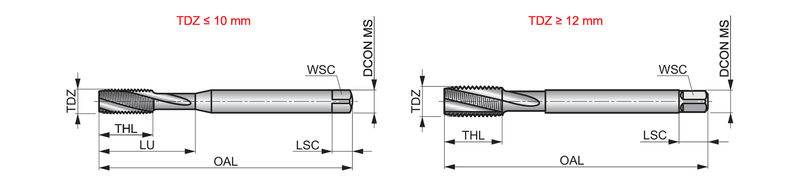

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2
Usable Length — in (LU)1.5354"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)15.0°
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number47182370
EAN7320760706435
File Type Download
T205M10 — Line Drawing PDF Download
