UGC DOR7182378
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$207.43 CAD - $207.43 CAD
$207.43 CAD
$207.43 CAD - $207.43 CAD
$207.43 CAD

Vendu en lots de : 1

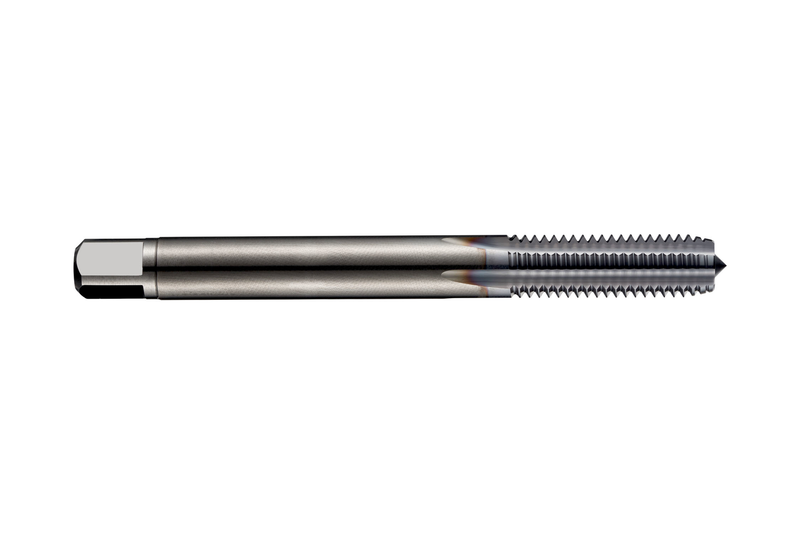

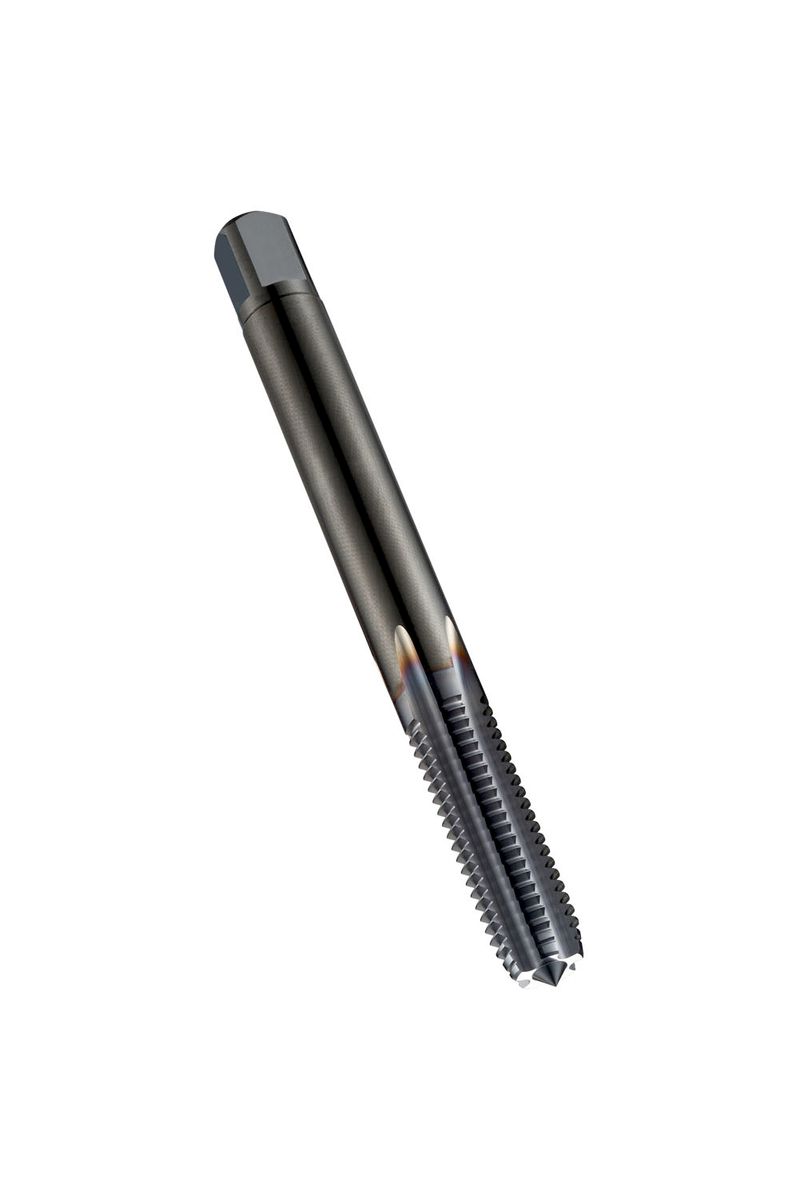

Taraud droit forme C avec entrée 2-3xP, pour filet ISO-métrique M4 au pas de 0,70 mm et de classe de tolérance 6HX, dimensions conformes à la norme DIN 371 avec queue de 4,5 mm et carré d'entraînement de 3,4 mm, en carbure monobloc avec revêtement TiCN pour le taraudage de trous débouchants ou borgnes jusqu'à 2xD dans les aciers trempés >55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)T210M4
GradeTiCN
Product Number7182378
Product FamilyT210

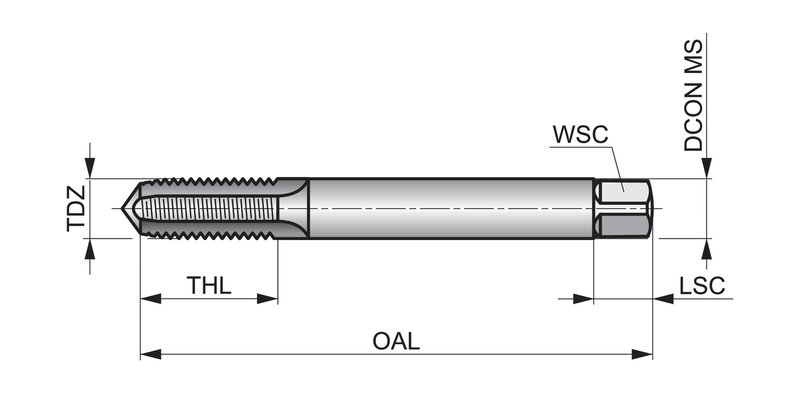

Dimensions
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.1772"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)4
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.7 mm
Thread Pitch — in (TP)0.0276"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number47182378
EAN7320760706510
File Type Download
T210M4 — Line Drawing PDF Download
