T210M6
T210M6
T210M6

T210M6

UGC DOR7182380
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$220.00 CAD - $220.00 CAD
$220.00 CAD
$220.00 CAD - $220.00 CAD
$220.00 CAD

Vendu en lots de : 1

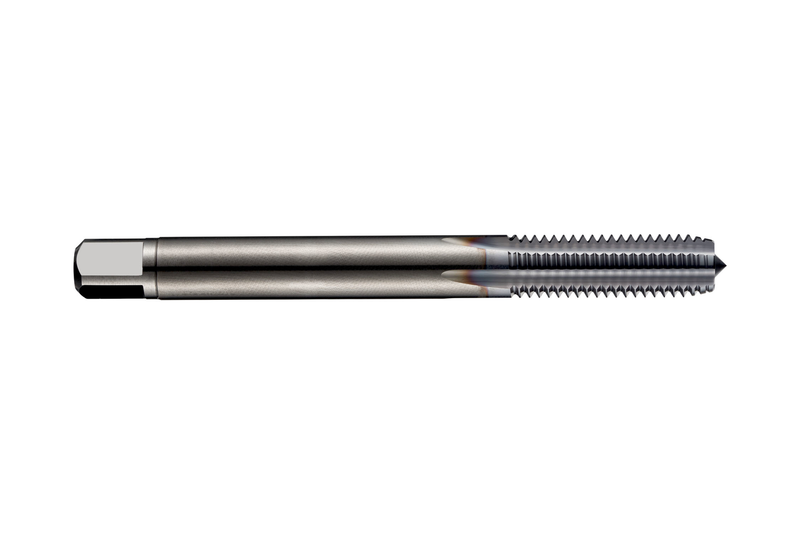

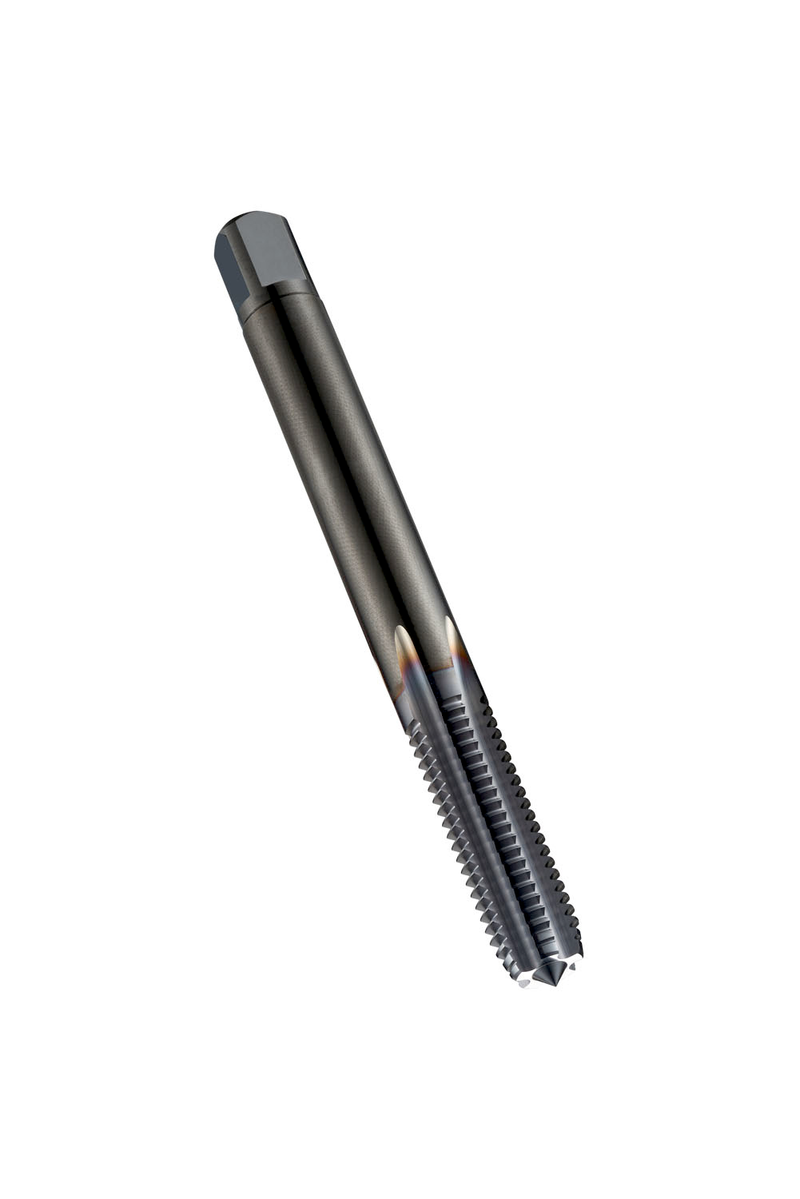

Taraud droit à entrée courte (forme C), pour filetage ISO-métrique M6 au pas de 1,00 mm et de classe de tolérance 6HX, dimensions selon la norme DIN 371 avec queue de 6,0 mm et carré d'entraînement de 4,9 mm, en carbure monobloc avec revêtement TiCN, pour le taraudage de trous débouchants ou borgnes jusqu'à 2xD dans les aciers trempés > 55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)T210M6
GradeTiCN
Product Number7182380
Product FamilyT210
Dimensions
Overall Length — in (OAL)3.1496"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.0394"
Tool Information
ShankTige cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number47182380
EAN7320760706534
File Type Download

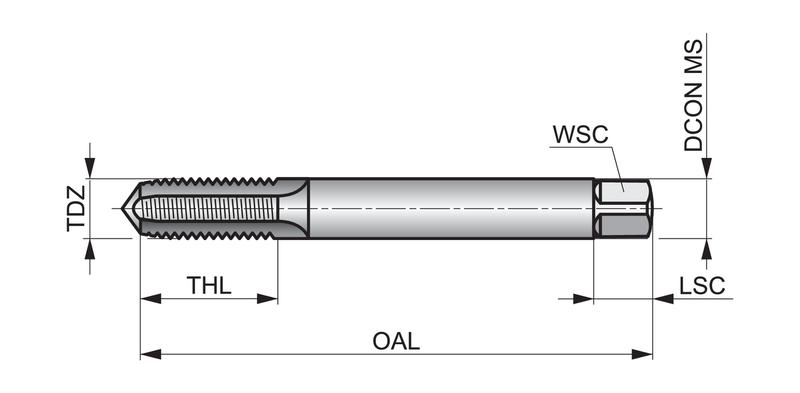

T210M6 — Line Drawing PDF Download
