T210M8
T210M8
T210M8

T210M8

UGC DOR7182381
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$247.50 CAD - $247.50 CAD
$247.50 CAD
$247.50 CAD - $247.50 CAD
$247.50 CAD

Vendu en lots de : 1

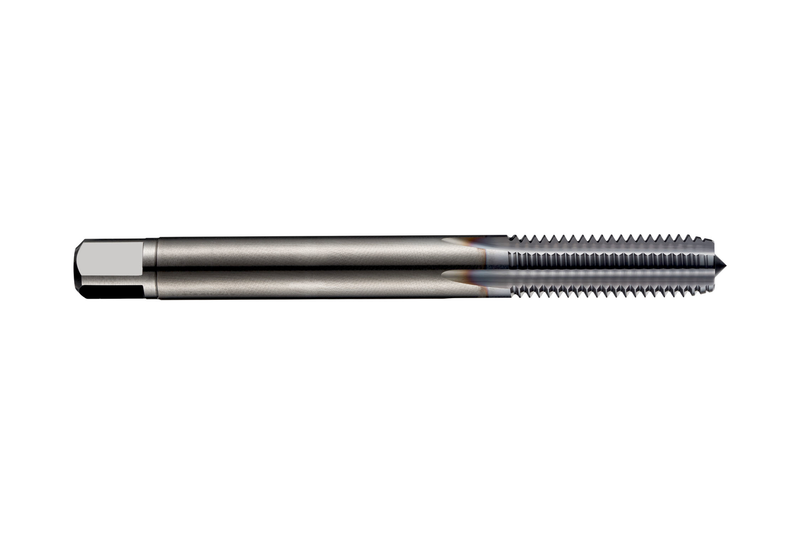

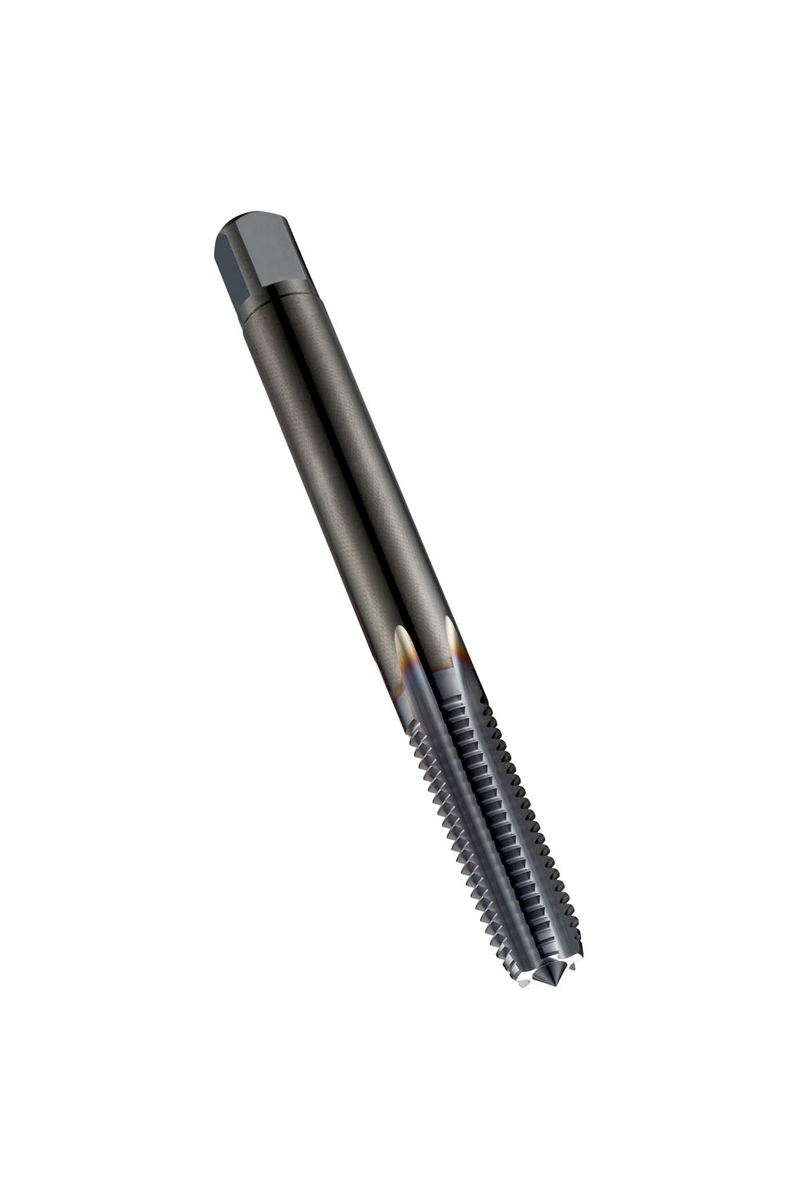

Taraud droit avec chanfrein forme C à entrée progressive 2-3xP, pour filetage ISO-métrique M8 au pas de 1,25 mm et de classe de tolérance 6HX, dimensions selon la norme DIN 371 avec queue de 8,0 mm et carré d'entraînement de 6,2 mm, en carbure monobloc avec revêtement TiCN pour le taraudage de trous débouchants ou borgnes de 2xD dans les aciers trempés >55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)T210M8
GradeTiCN
Product Number7182381
Product FamilyT210
Dimensions
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)M - Pas gros
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.0492"
Tool Information
ShankQueue cylindrique avec carré
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number47182381
EAN7320760706541
File Type Download

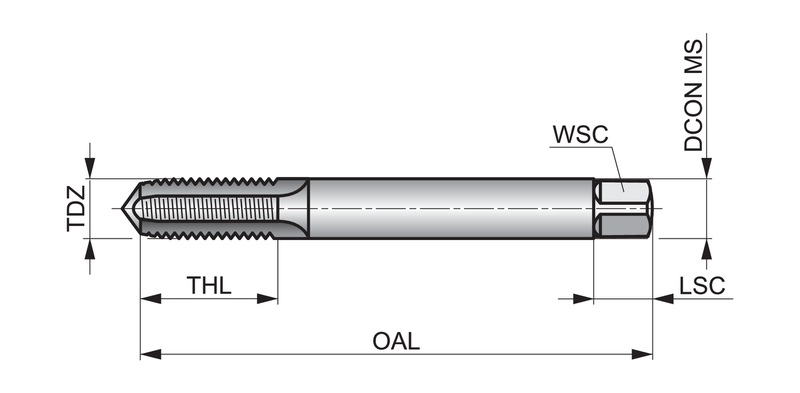

T210M8 — Line Drawing PDF Download
