T210M10
T210M10
T210M10

T210M10

UGC DOR7182382
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$304.07 CAD - $304.07 CAD
$304.07 CAD
$304.07 CAD - $304.07 CAD
$304.07 CAD

Vendu en lots de : 1

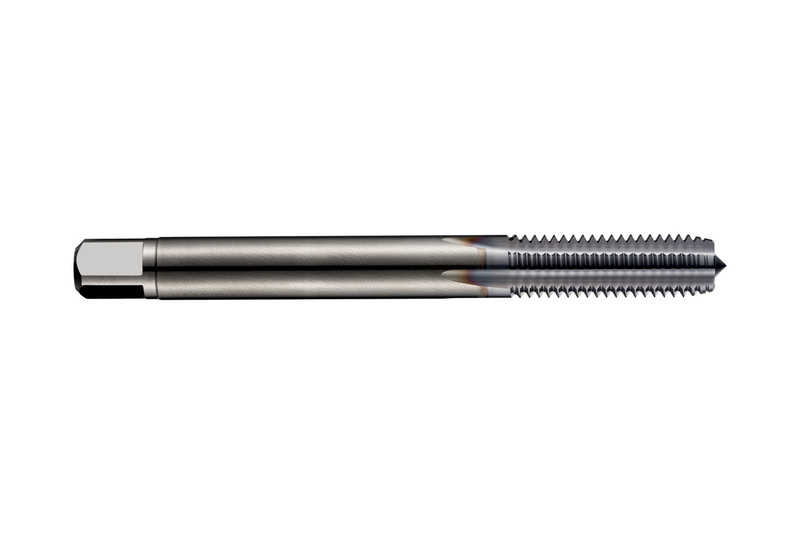

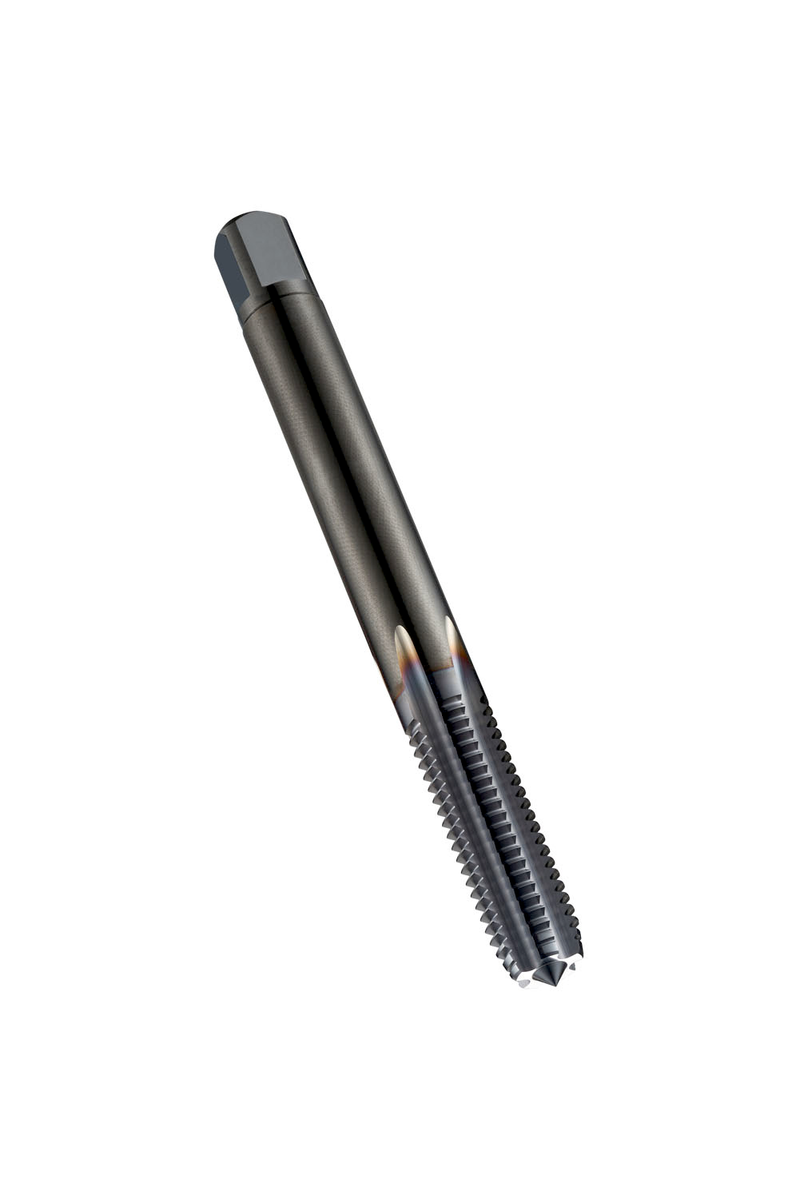

Taraud droit avec chanfrein forme C, entrée 2-3xP, pour filet ISO-Métrique M10 au pas de 1,50 mm et classe de tolérance 6HX, dimensions selon la norme DIN 371 avec queue de 10,0 mm et carré d'entraînement de 8,0 mm, en carbure monobloc avec revêtement TiCN pour le taraudage de trous débouchants ou borgnes jusqu'à 2xD dans l'acier trempé >55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)T210M10
GradeTiCN
Product Number7182382
Product FamilyT210

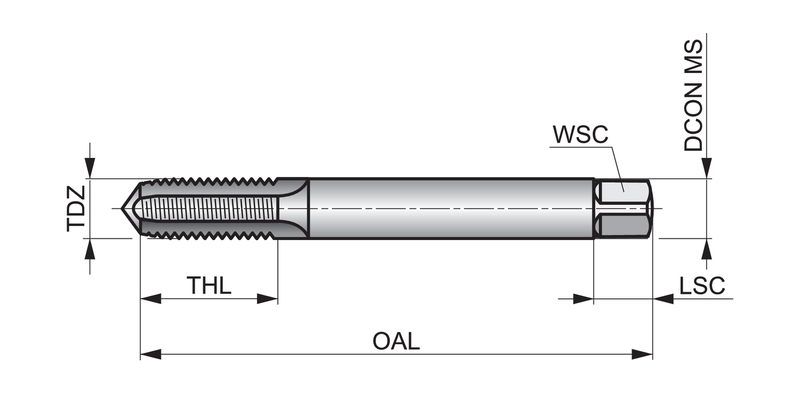

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)5
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.0591"
Tool Information
ShankQueue cylindrique avec carré d'entraînement
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number47182382
EAN7320760706558
File Type Download
T210M10 — Line Drawing PDF Download
