T210M12
T210M12
T210M12

T210M12

UGC DOR7182383
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$387.36 CAD - $387.36 CAD
$387.36 CAD
$387.36 CAD - $387.36 CAD
$387.36 CAD

Vendu en lots de : 1

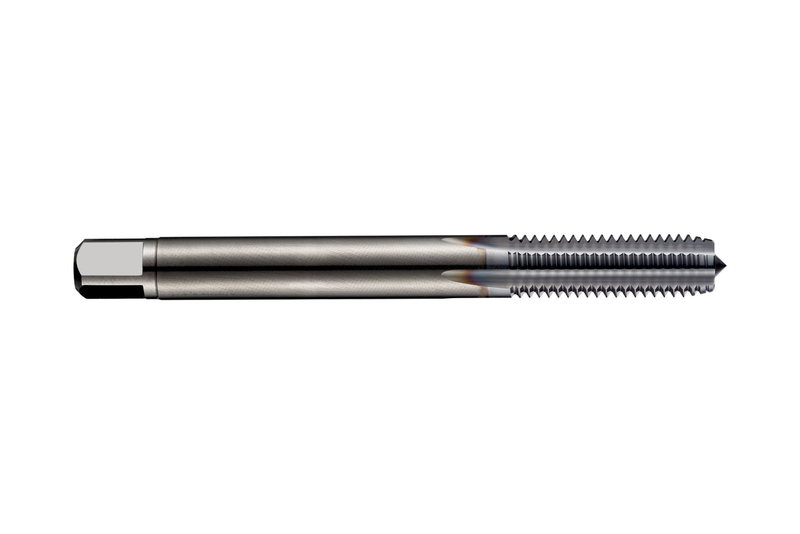

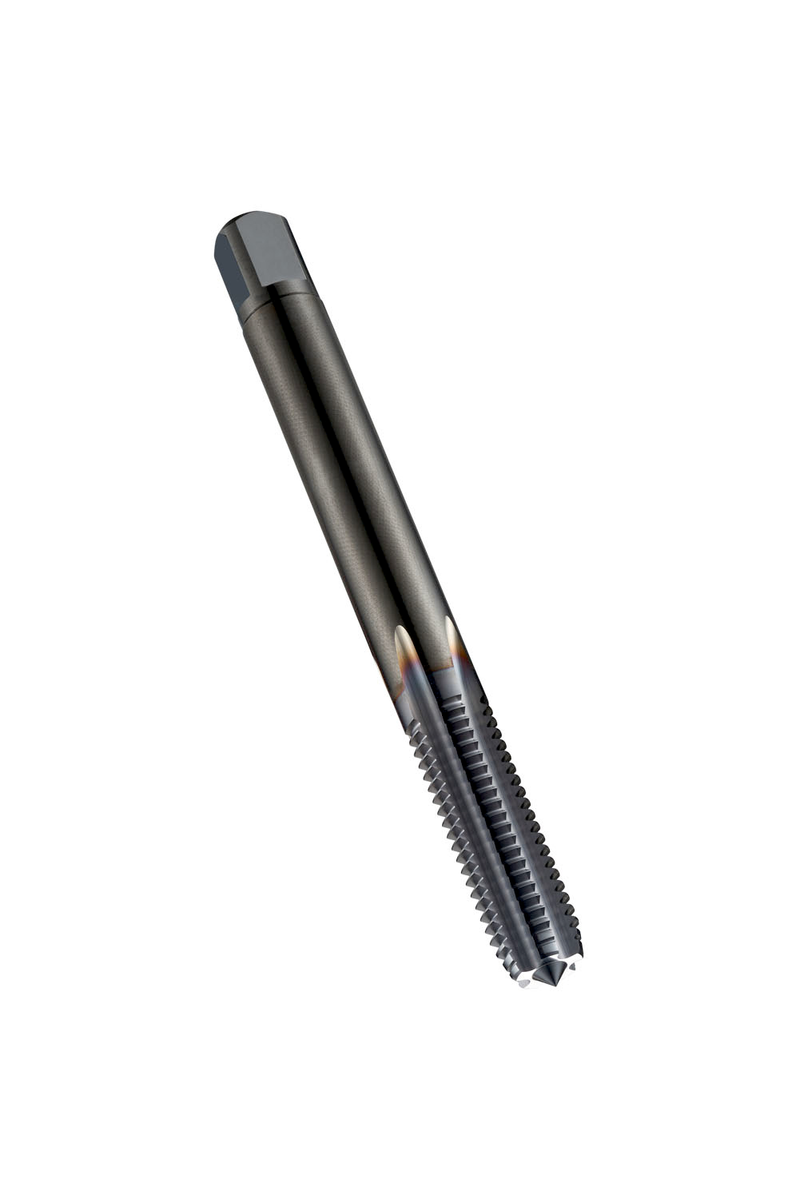

Taraud droit forme C avec entrée 2-3xP, pour filetage ISO-métrique M12 au pas de 1,75 mm et classe de tolérance 6HX, dimensions selon la norme DIN 371 avec queue de 12,0 mm et carré d'entraînement de 9,0 mm, en carbure monobloc avec revêtement TiCN pour le taraudage de trous débouchants ou borgnes jusqu'à 2xD dans l'acier trempé >55HRC

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)T210M12
GradeTiCN
Product Number7182383
Product FamilyT210

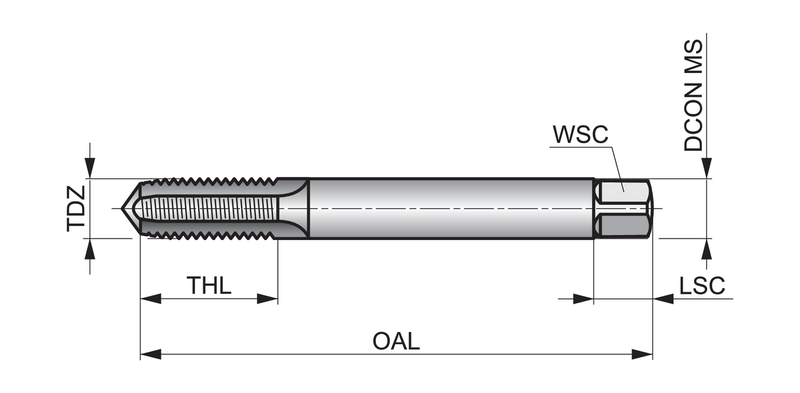

Dimensions
Overall Length — in (OAL)4.3307"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)6
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.75 mm
Thread Pitch — in (TP)0.0689"
Tool Information
ShankQueue cylindrique à carré d'entraînement
Direction of ToolD'accord
StandardDIN 371
Reference Numbers
EDP Number47182383
EAN7320760706565
File Type Download
T210M12 — Line Drawing PDF Download
