UGC DOR7189762
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.56 CAD - $2.56 CAD
$2.56 CAD
$2.56 CAD - $2.56 CAD
$2.56 CAD

Vendu en lots de : 10

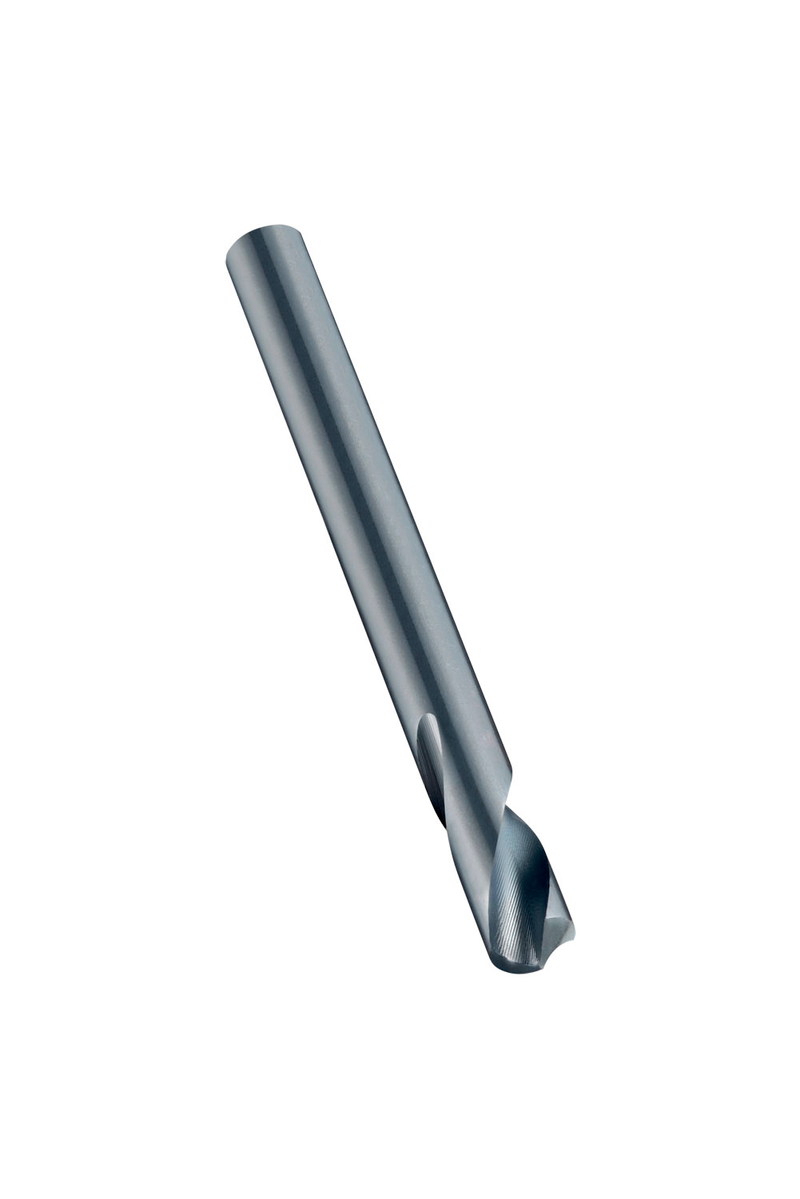

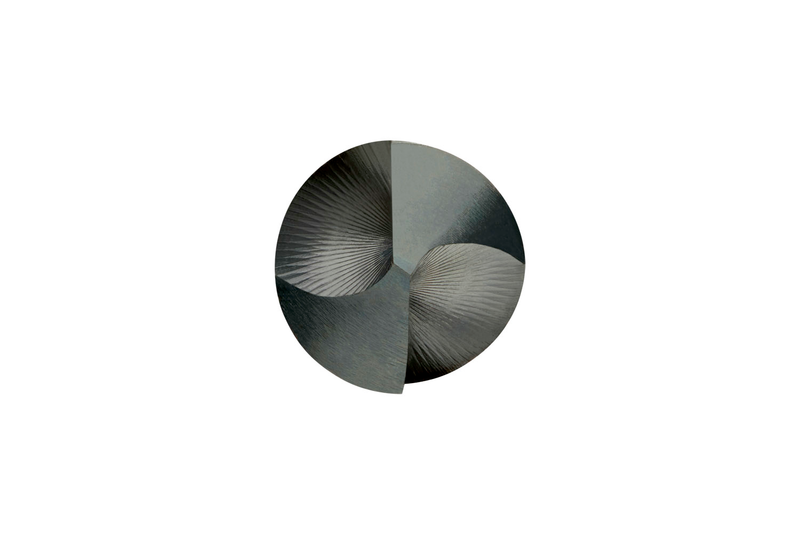

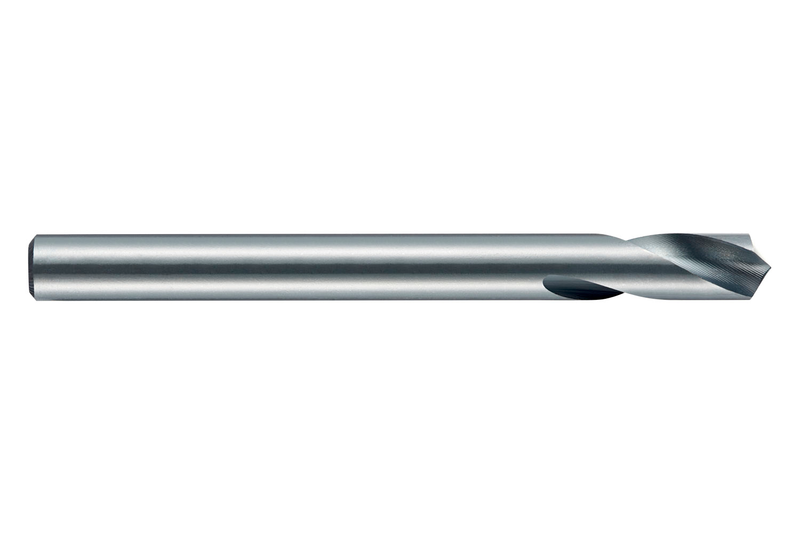

Foret tôle à queue cylindrique, diamètre 2,5 mm, longueur totale 43 mm, longueur utile 14 mm selon la norme DIN 1897 avec un angle de pointe de 120°, HSS finition vaporisée pour perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1232.5S
GradeTrempé à la vapeur
Product Number7189762
Product FamilyA123

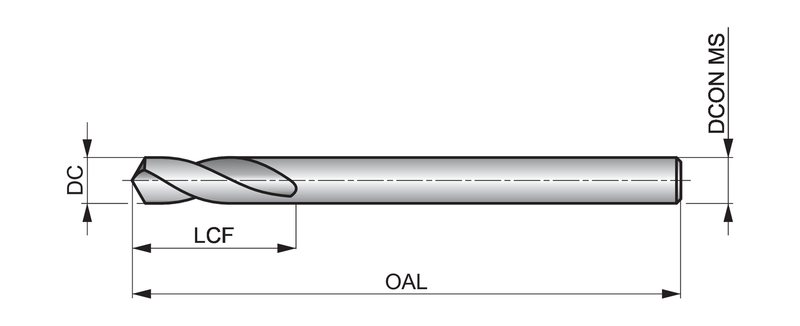

Dimensions
Cutting Diameter — in (DC)0.0984"
Cutting Diameter — mm (DC)2.5 mm
Overall Length — in (OAL)1.6929"
Overall Length — mm (OAL)43.0 mm
Flute Length — in (LCF)0.5512"
Flute Length — mm (LCF)14.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.0984"
Connection Dia. — mm (DCON)2.5 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number47189762
EAN7320760707791
File Type Download
A1232.5S — 3D Model STP Download
A1232.5S — Line Drawing PDF Download
