A1233.0S
A1233.0S
A1233.0S
A1233.0S

A1233.0S

UGC DOR7189763
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.56 CAD - $2.56 CAD
$2.56 CAD
$2.56 CAD - $2.56 CAD
$2.56 CAD

Vendu en lots de : 10

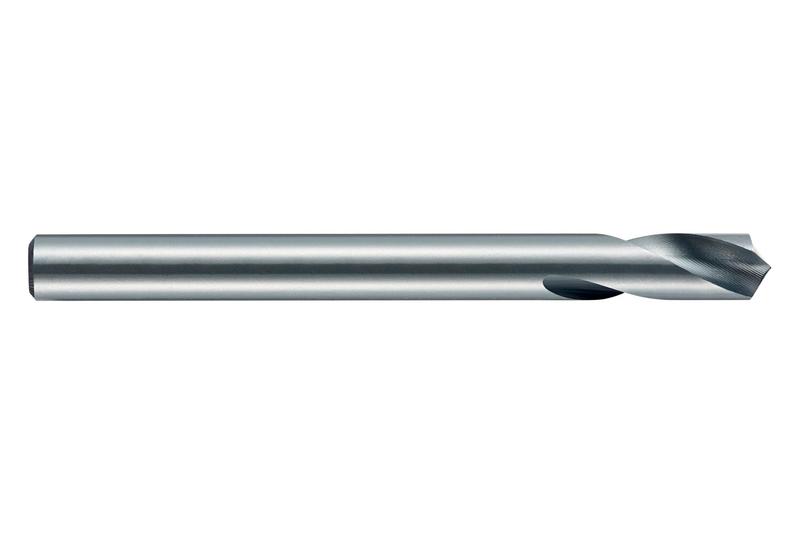

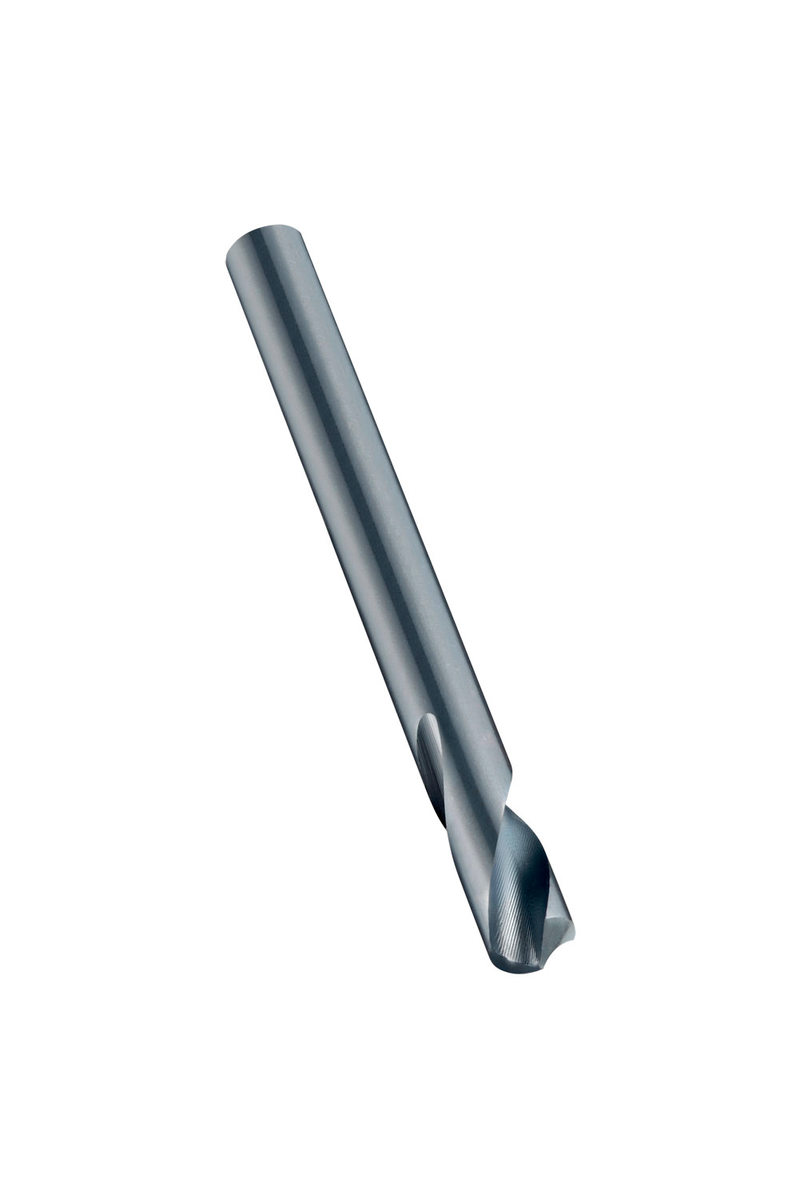

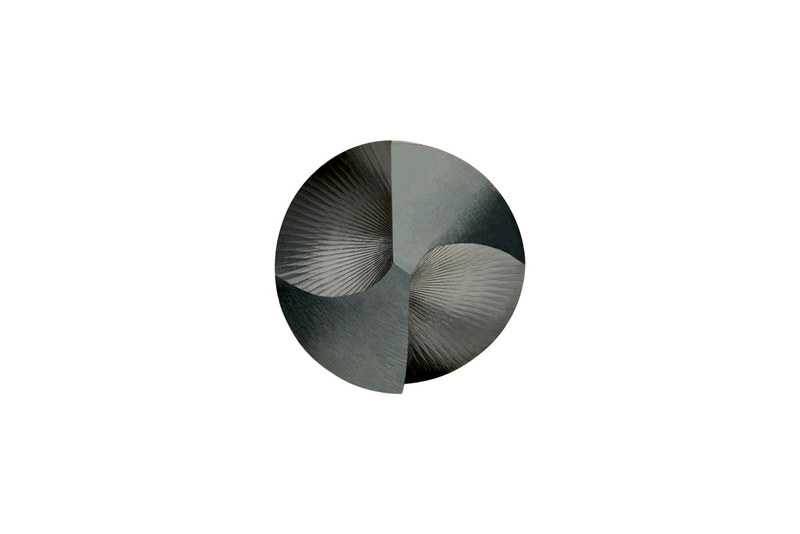

Foret à tôle à queue cylindrique, diamètre 3 mm avec une longueur totale de 46 mm et une longueur utile de 16 mm selon la norme DIN 1897 avec un angle de pointe de 120°, en HSS avec finition trempée à la vapeur pour un perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1233.0S
GradeTrempé à la vapeur
Product Number7189763
Product FamilyA123

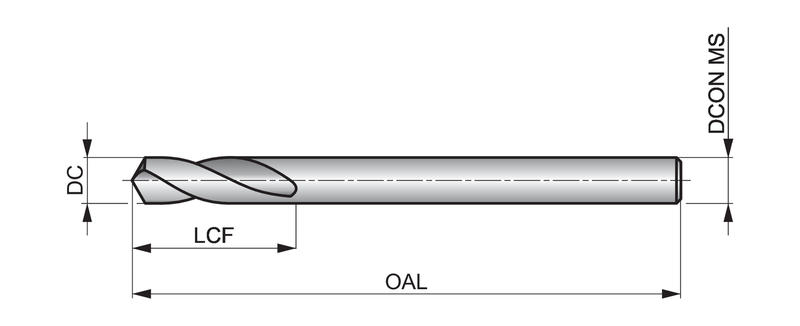

Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)1.811"
Overall Length — mm (OAL)46.0 mm
Flute Length — in (LCF)0.6299"
Flute Length — mm (LCF)16.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.1181"
Connection Dia. — mm (DCON)3.0 mm
Drill Point Angle (SIG)120°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number47189763
EAN7320760707807
File Type Download
A1233.0S — 3D Model STP Download
A1233.0S — Line Drawing PDF Download
