A1231/8S
A1231/8S
A1231/8S
A1231/8S

A1231/8S

UGC DOR7189764
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.91 CAD - $2.91 CAD
$2.91 CAD
$2.91 CAD - $2.91 CAD
$2.91 CAD

Vendu en lots de : 10

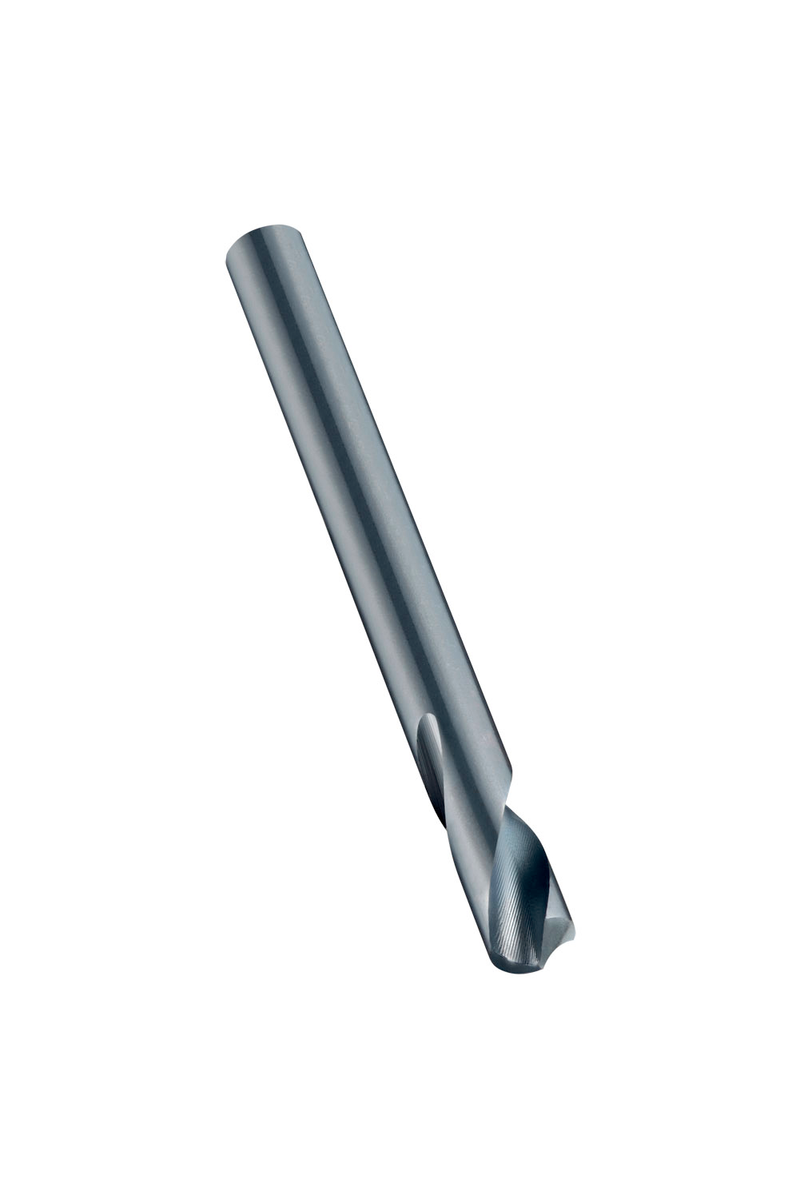

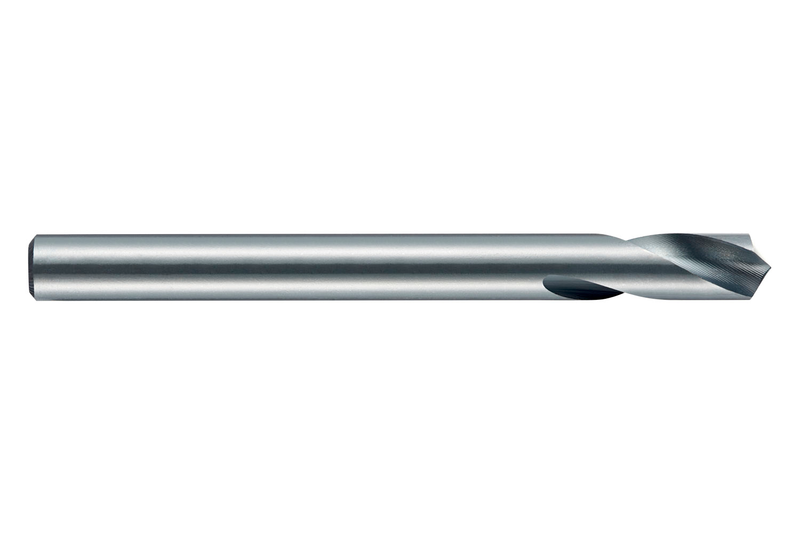

Foret pour tôles à queue cylindrique, diamètre 0,1252" (1/8S) avec une longueur totale de 49 mm et une longueur de coupe de 18 mm selon la norme DIN 1897 avec un angle de pointe de 120°, en HSS avec finition à la vapeur pour le perçage 1,5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1231/8S
GradeTrempé à la vapeur
Product Number7189764
Product FamilyA123

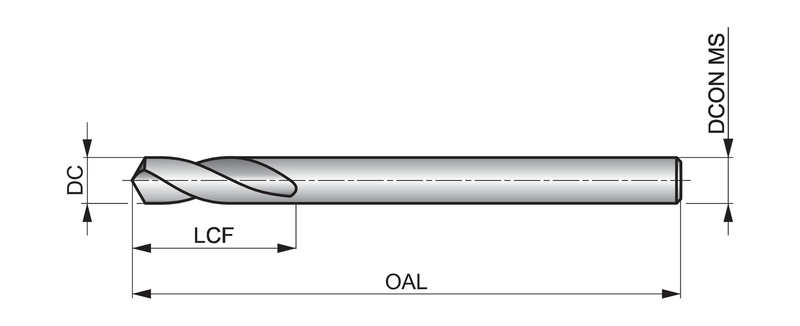

Dimensions
Cutting Diameter — in (DC)0.125"
Cutting Diameter — mm (DC)3.18 mm
Cutting Diameter — Fractional1/8
Overall Length — in (OAL)1.9291"
Overall Length — mm (OAL)49.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.1252"
Connection Dia. — mm (DCON)3.18 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number47189764
EAN7320760707814
File Type Download
A1231/8S — 3D Model STP Download
A1231/8S — Line Drawing PDF Download
