UGC DOR7189767
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.56 CAD - $2.56 CAD
$2.56 CAD
$2.56 CAD - $2.56 CAD
$2.56 CAD

Vendu en lots de : 10

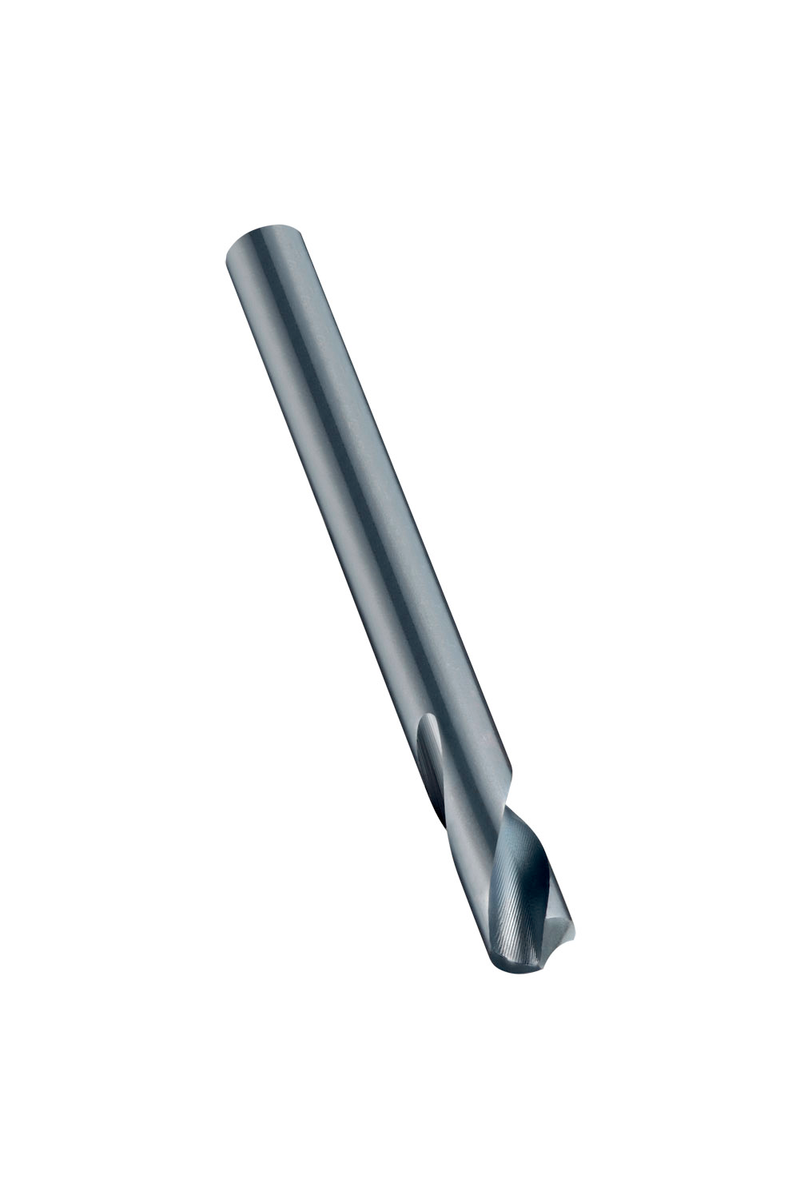

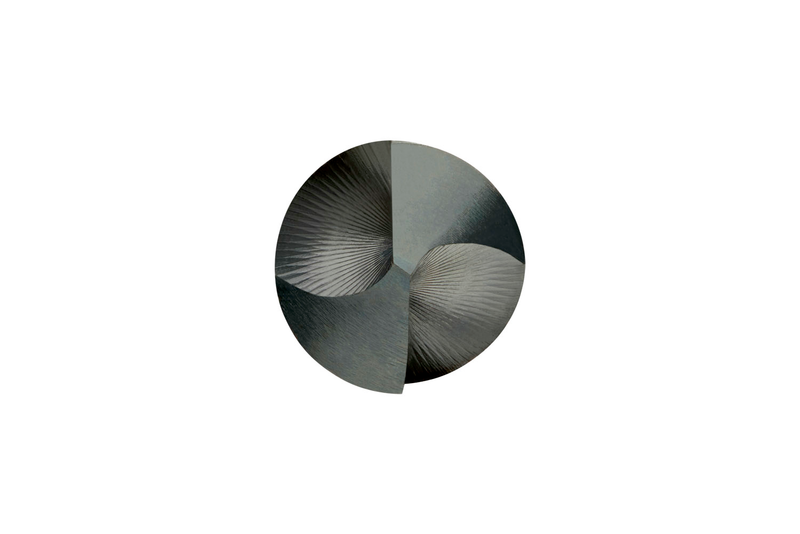

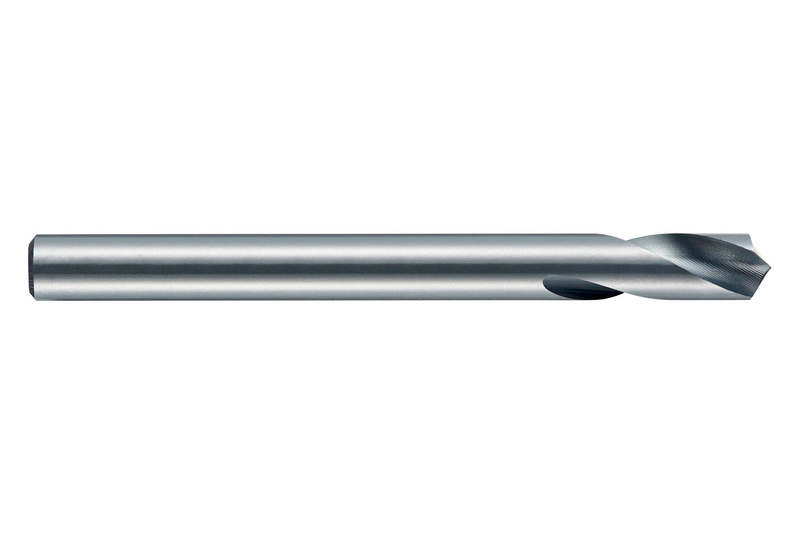

Foret à tôle à queue cylindrique, diamètre 3,5 mm, longueur totale 52 mm et longueur utile 18 mm selon la norme DIN 1897, avec angle de pointe de 120°, en HSS avec finition revenu vapeur pour un perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1233.5S
GradeVapeur tempérée
Product Number7189767
Product FamilyA123

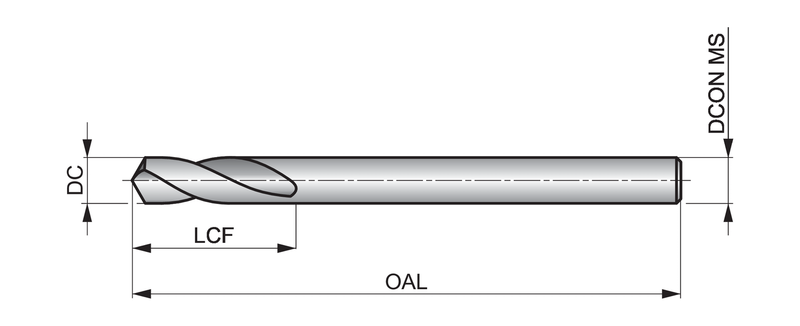

Dimensions
Cutting Diameter — in (DC)0.1378"
Cutting Diameter — mm (DC)3.5 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.1378"
Connection Dia. — mm (DCON)3.5 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number47189767
EAN7320760707845
File Type Download
A1233.5S — 3D Model STP Download
A1233.5S — Line Drawing PDF Download
