A1233.7S
A1233.7S
A1233.7S
A1233.7S

A1233.7S

UGC DOR7189769
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.34 CAD - $3.34 CAD
$3.34 CAD
$3.34 CAD - $3.34 CAD
$3.34 CAD

Vendu en lots de : 10

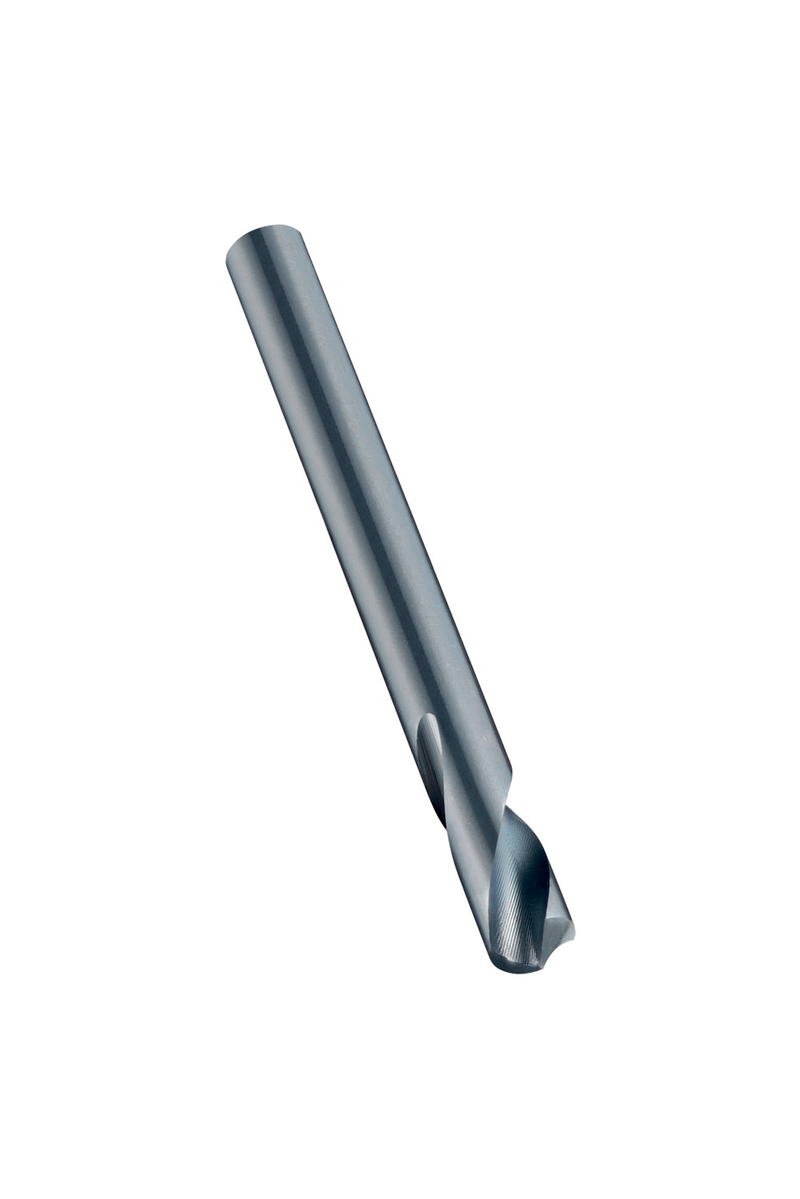

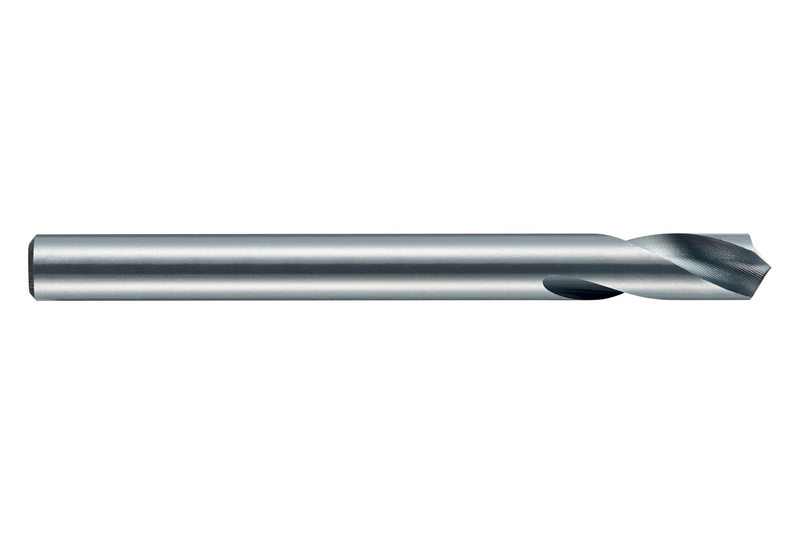

Foret à tôle à queue cylindrique, diamètre 3,7 mm avec une longueur totale de 52 mm et une longueur de coupe de 18 mm selon la norme DIN 1897 avec un angle de pointe de 120°, HSS avec finition trempée à la vapeur pour un perçage 1,5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1233.7S
GradeTrempé vapeur
Product Number7189769
Product FamilyA123

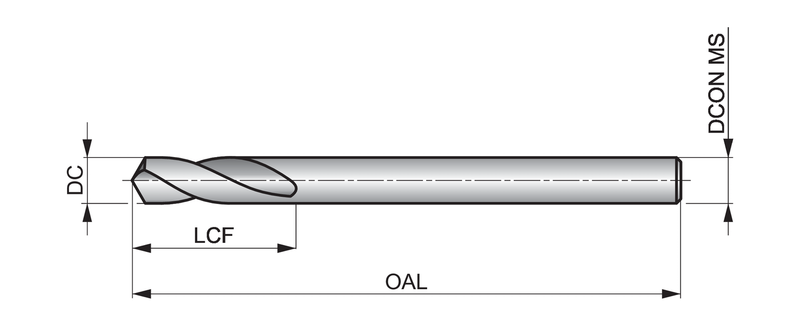

Dimensions
Cutting Diameter — in (DC)0.1457"
Cutting Diameter — mm (DC)3.7 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.1457"
Connection Dia. — mm (DCON)3.7 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number47189769
EAN7320760707852
File Type Download
A1233.7S — 3D Model STP Download
A1233.7S — Line Drawing PDF Download
