UGC DOR7189782
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.51 CAD - $3.51 CAD
$3.51 CAD
$3.51 CAD - $3.51 CAD
$3.51 CAD

Vendu en lots de : 10

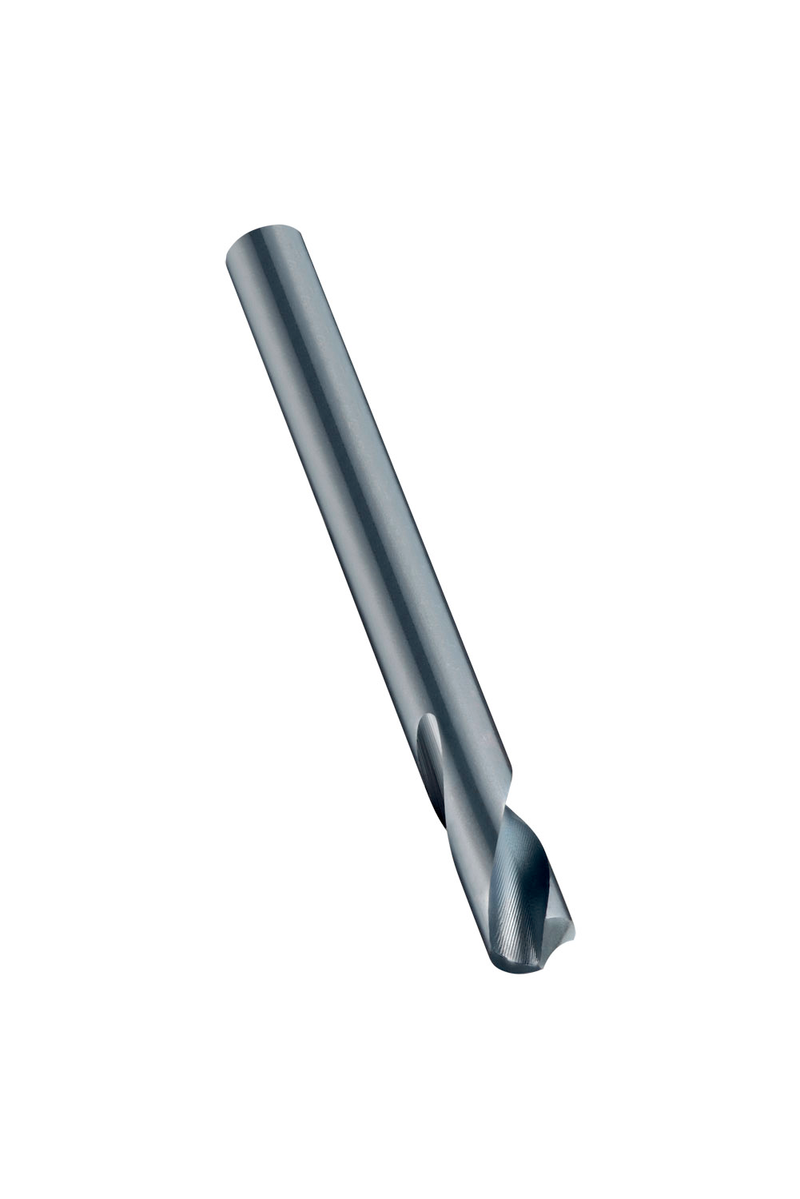

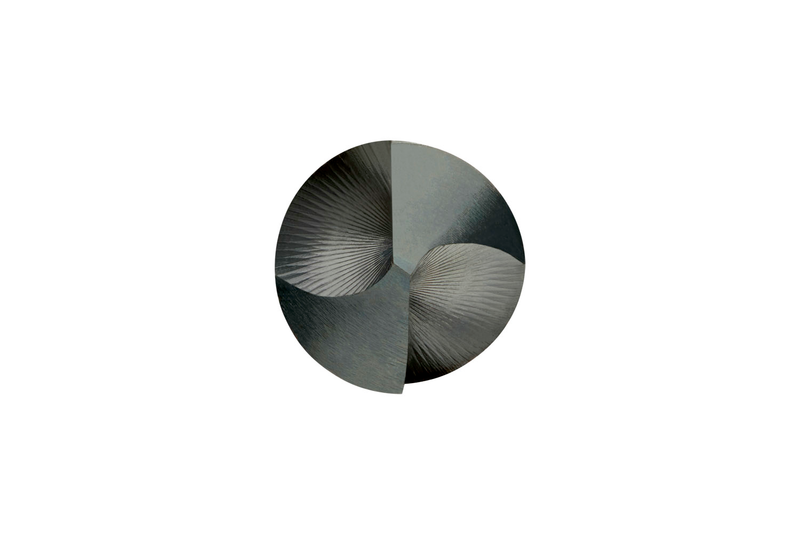

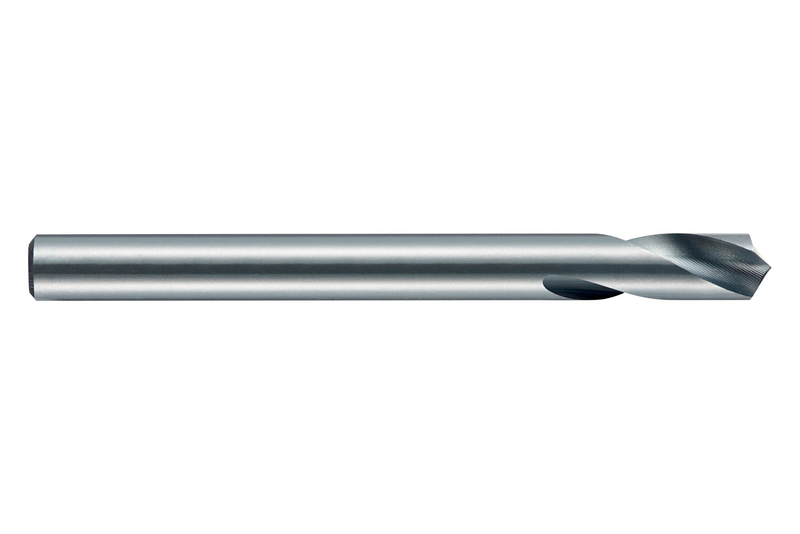

Foret pour tôles à queue cylindrique, diamètre 4,1 mm, longueur totale 55 mm, longueur utile 18 mm selon la norme DIN 1897, angle de pointe 120°, HSS finition à la vapeur pour perçage 1,5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1234.1S
GradeTrempé à la vapeur
Product Number7189782
Product FamilyA123

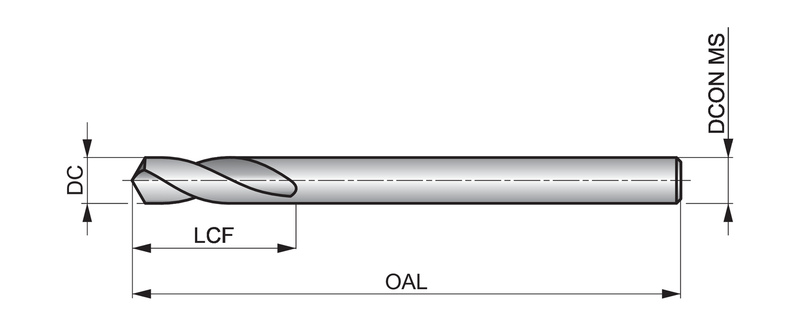

Dimensions
Cutting Diameter — in (DC)0.1614"
Cutting Diameter — mm (DC)4.1 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.1614"
Connection Dia. — mm (DCON)4.1 mm
Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number47189782
EAN7320760707883
File Type Download
A1234.1S — 3D Model STP Download
A1234.1S — Line Drawing PDF Download
