UGC DOR7189785
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.39 CAD - $4.39 CAD
$4.39 CAD
$4.39 CAD - $4.39 CAD
$4.39 CAD

Vendu en lots de : 10

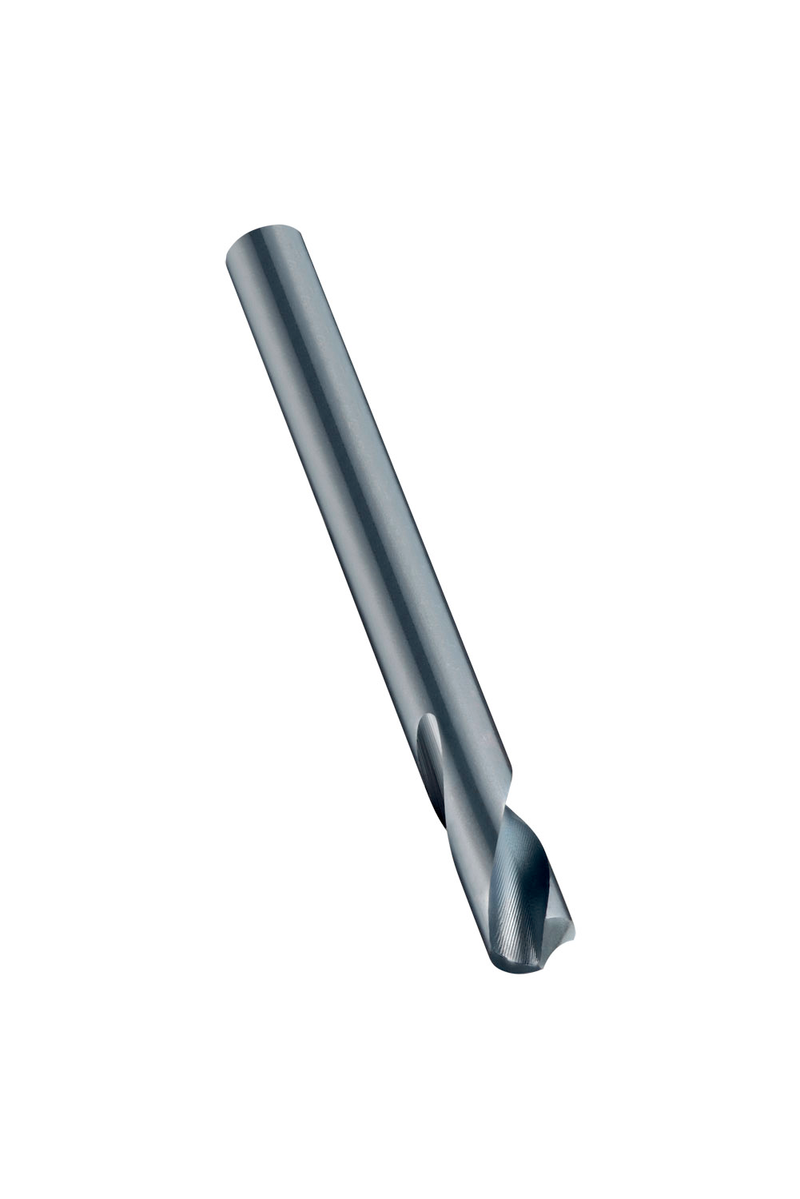

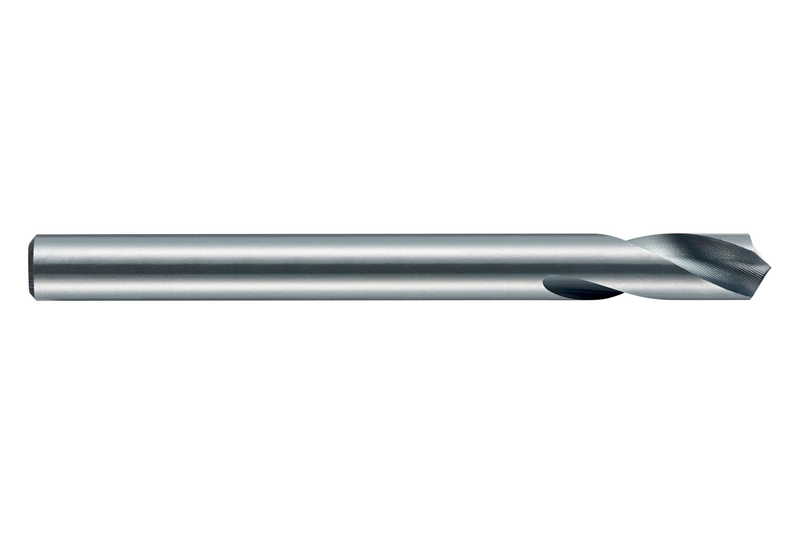

Foret à tôle à queue cylindrique, diamètre 0,1875" (3/16S) avec une longueur totale de 62 mm et une longueur de coupe de 18 mm selon la norme DIN 1897 avec un angle de pointe de 120°, HSS avec finition trempée à la vapeur pour un perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1233/16S
GradeTrempé à la vapeur
Product Number7189785
Product FamilyA123

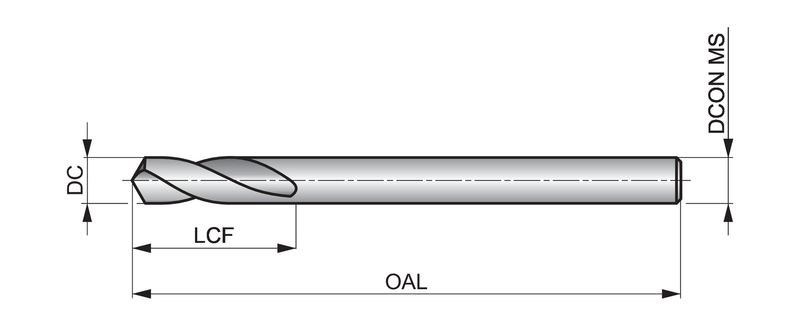

Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.4409"
Overall Length — mm (OAL)62.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.1874"
Connection Dia. — mm (DCON)4.76 mm

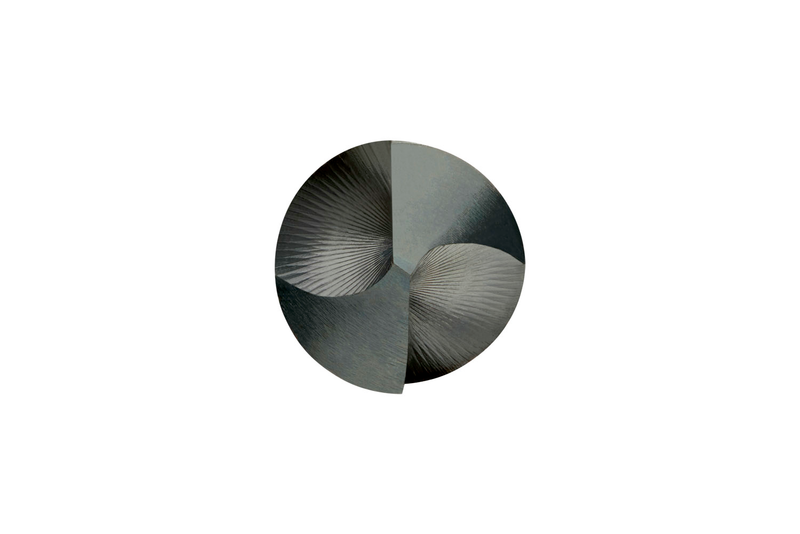

Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number47189785
EAN7320760707913
File Type Download
A1233/16S — 3D Model STP Download
A1233/16S — Line Drawing PDF Download
