UGC DOR7189786
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.37 CAD - $4.37 CAD
$4.37 CAD
$4.37 CAD - $4.37 CAD
$4.37 CAD

Vendu en lots de : 10

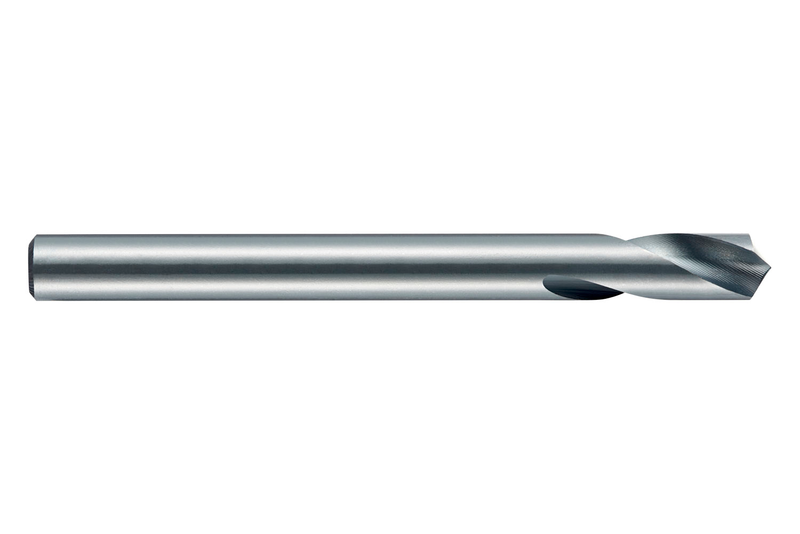

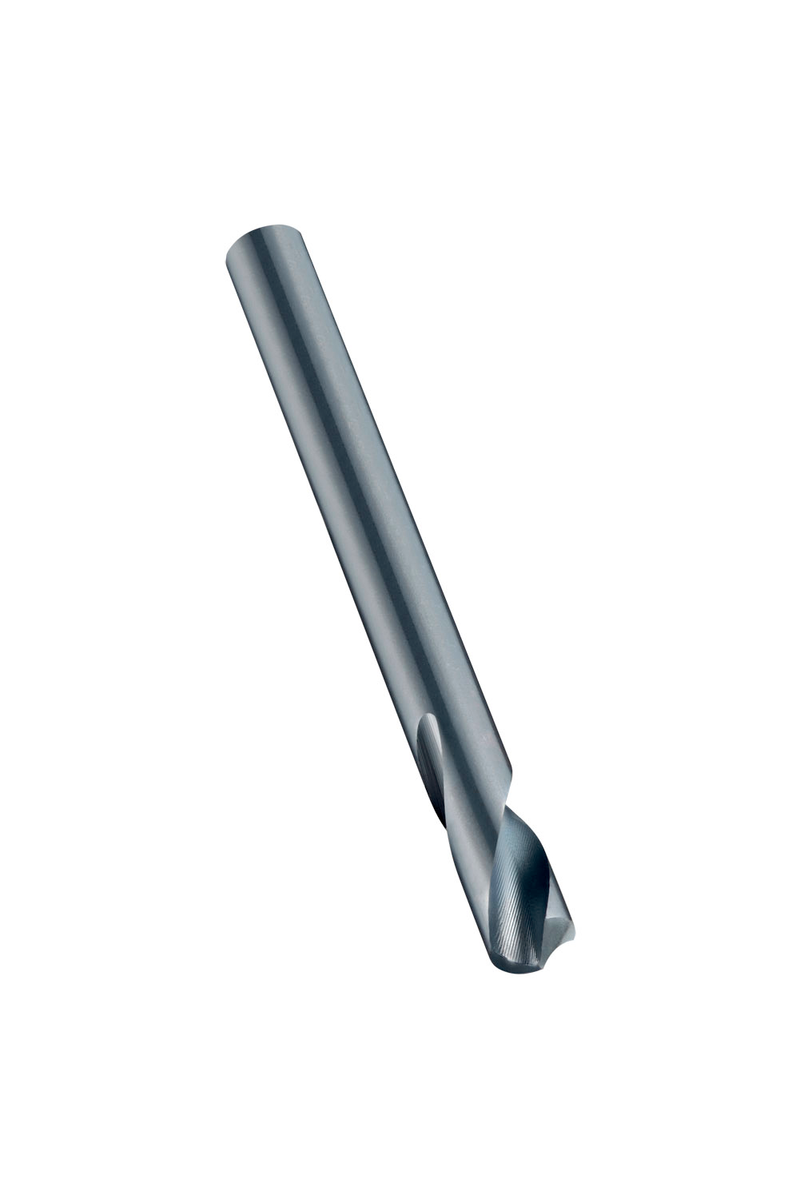

Foret pour tôle à queue cylindrique, diamètre 4,8 mm, longueur totale 62 mm et longueur de coupe 18 mm selon la norme DIN 1897, avec un angle de pointe de 120°, en HSS avec finition trempée à la vapeur pour un perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1234.8S
GradeVapeur trempée
Product Number7189786
Product FamilyA123

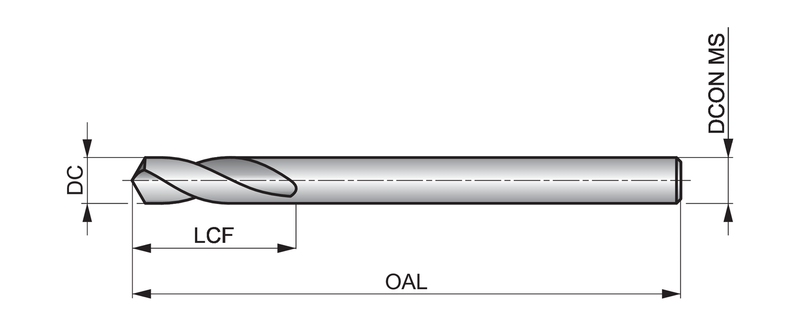

Dimensions
Cutting Diameter — in (DC)0.189"
Cutting Diameter — mm (DC)4.8 mm
Overall Length — in (OAL)2.4409"
Overall Length — mm (OAL)62.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.189"
Connection Dia. — mm (DCON)4.8 mm

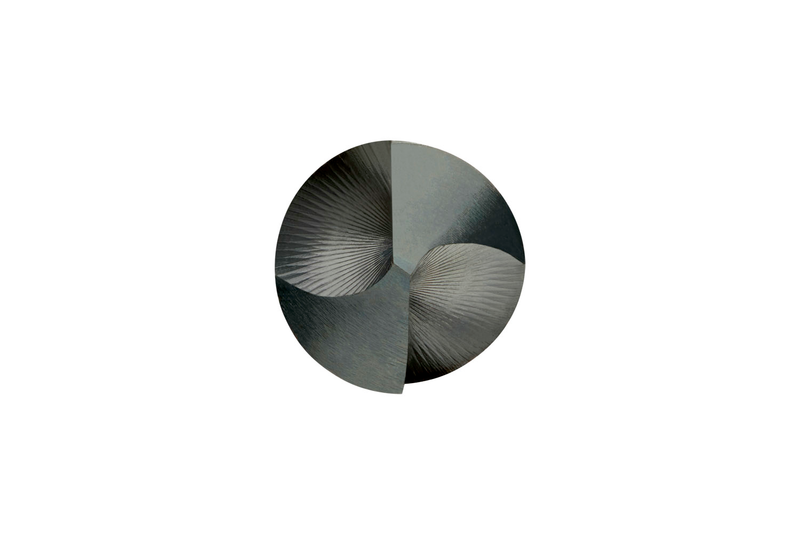

Drill Point Angle (SIG)120°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number47189786
EAN7320760707920
File Type Download
A1234.8S — 3D Model STP Download
A1234.8S — Line Drawing PDF Download
