UGC DOR7189787
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.37 CAD - $4.37 CAD
$4.37 CAD
$4.37 CAD - $4.37 CAD
$4.37 CAD

Vendu en lots de : 10

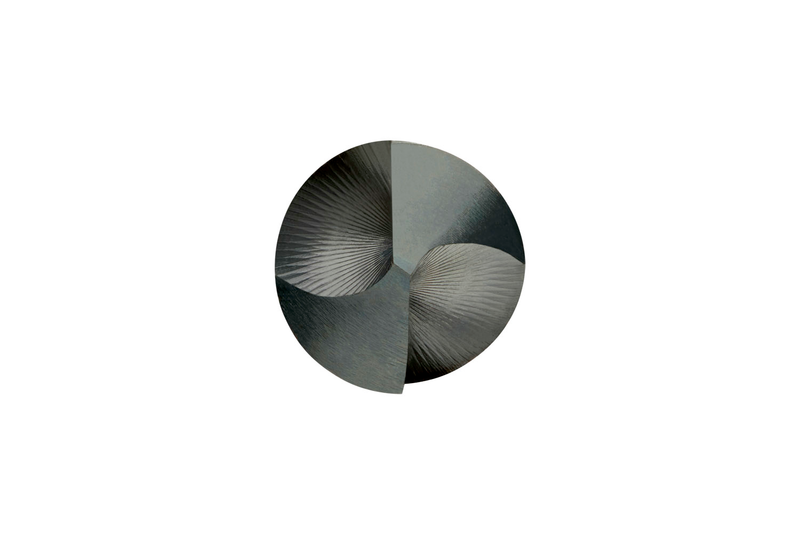

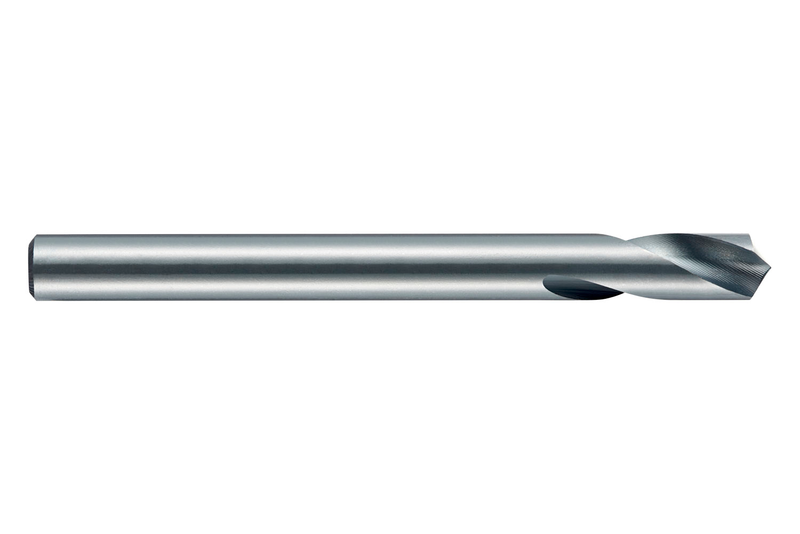

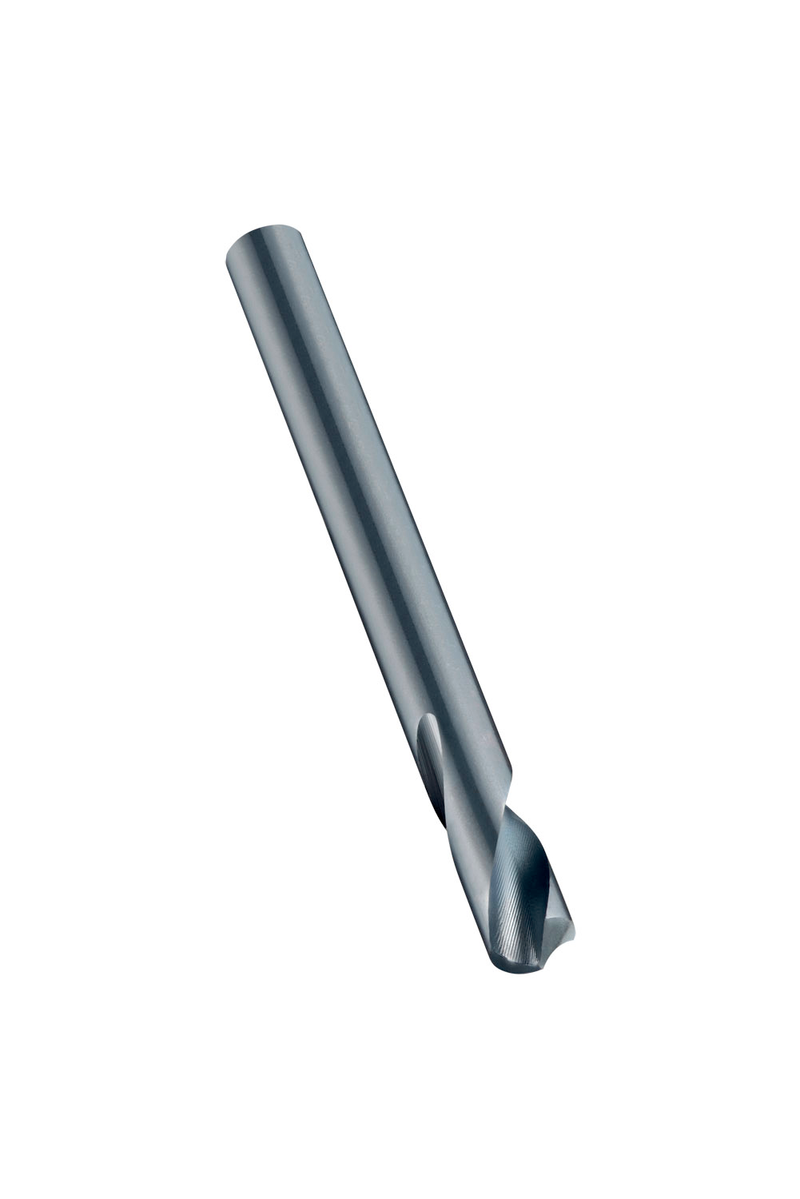

Foret tôle à queue cylindrique, diamètre 4.9mm, longueur totale de 62mm et longueur utile de 18mm selon la norme DIN 1897 avec un angle de pointe de 120°, en HSS avec finition trempée à la vapeur pour un perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1234.9S
GradeTrempé à la vapeur
Product Number7189787
Product FamilyA123

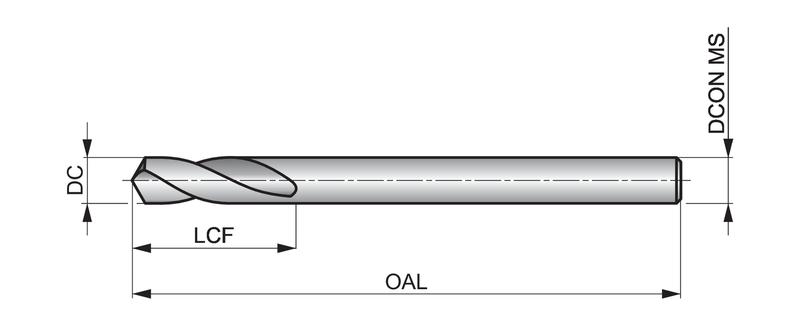

Dimensions
Cutting Diameter — in (DC)0.1929"
Cutting Diameter — mm (DC)4.9 mm
Overall Length — in (OAL)2.4409"
Overall Length — mm (OAL)62.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.1929"
Connection Dia. — mm (DCON)4.9 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolD'accord
StandardDIN 1897
Reference Numbers
EDP Number47189787
EAN7320760707937
File Type Download
A1234.9S — 3D Model STP Download
A1234.9S — Line Drawing PDF Download
