A1235.5S
A1235.5S
A1235.5S
A1235.5S

A1235.5S

UGC DOR7189789
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.14 CAD - $4.14 CAD
$4.14 CAD
$4.14 CAD - $4.14 CAD
$4.14 CAD

Vendu en lots de : 10

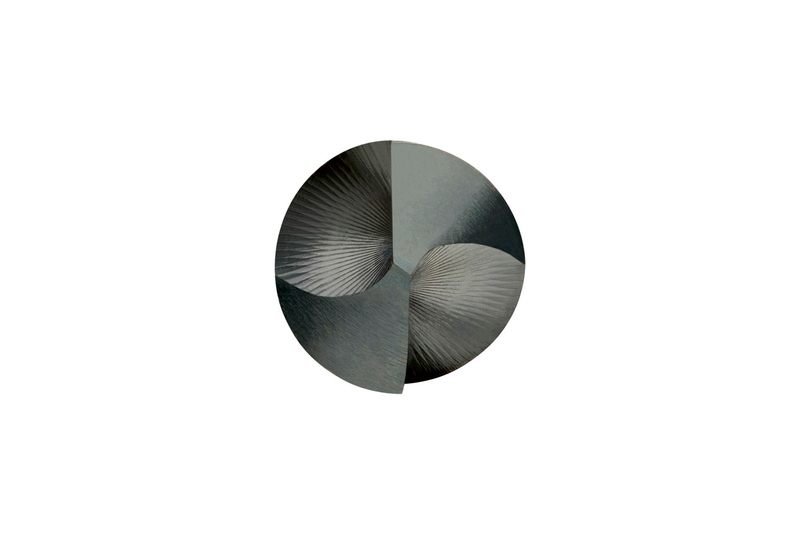

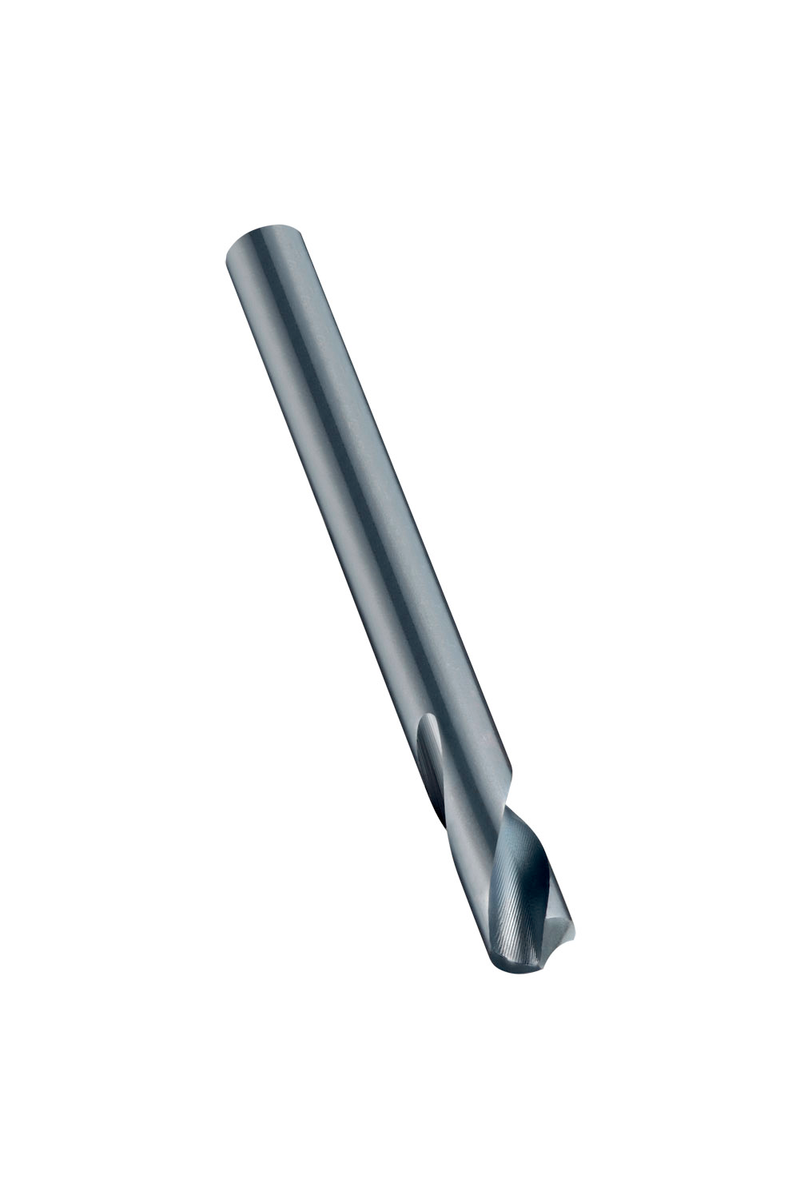

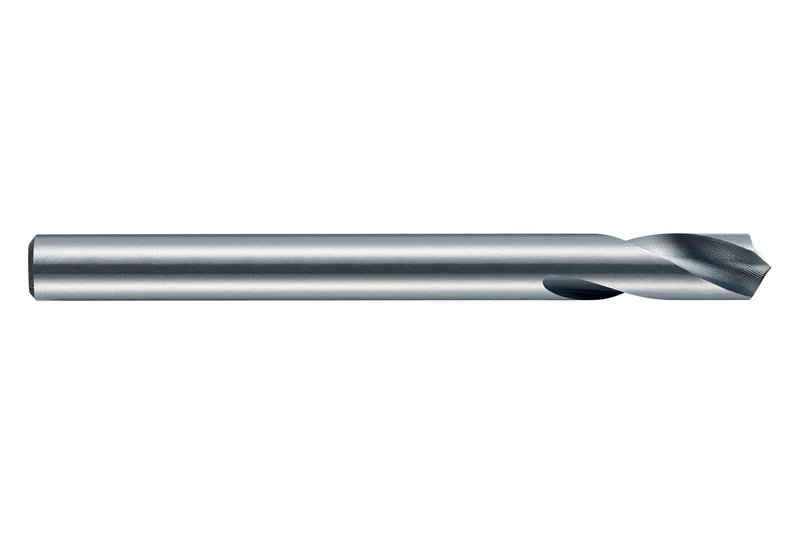

Foret à tôle à queue cylindrique, diamètre 5,5mm avec une longueur totale de 66mm et une longueur utile de 18mm selon la norme DIN 1897 avec un angle de pointe de 120°, HSS avec finition trempée à la vapeur pour un perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1235.5S
GradeSteam Tempered
Product Number7189789
Product FamilyA123

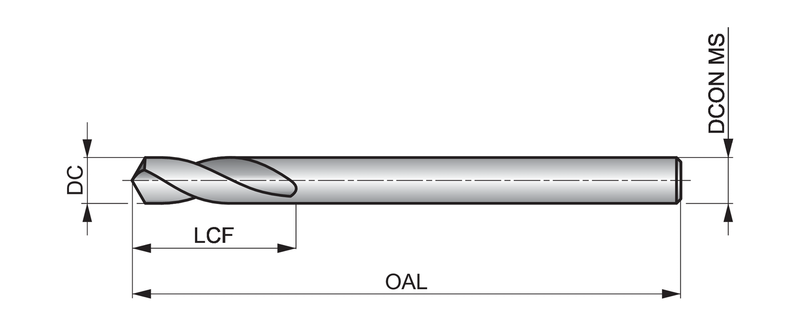

Dimensions
Cutting Diameter — in (DC)0.2165"
Cutting Diameter — mm (DC)5.5 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.2165"
Connection Dia. — mm (DCON)5.5 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1897
Reference Numbers
EDP Number47189789
EAN7320760707951
File Type Download
A1235.5S — 3D Model STP Download
A1235.5S — Line Drawing PDF Download
