A1236.0S
A1236.0S
A1236.0S
A1236.0S

A1236.0S

UGC DOR7189791
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$4.73 CAD - $4.73 CAD
$4.73 CAD
$4.73 CAD - $4.73 CAD
$4.73 CAD

Vendu en lots de : 10

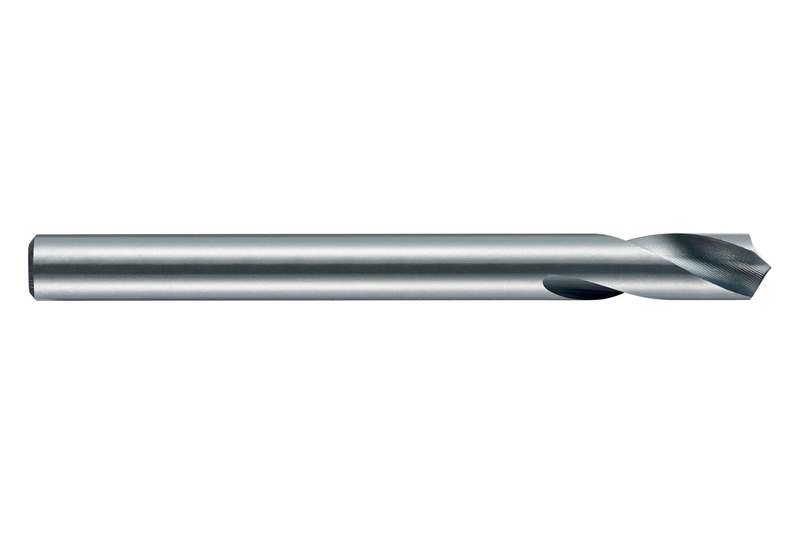

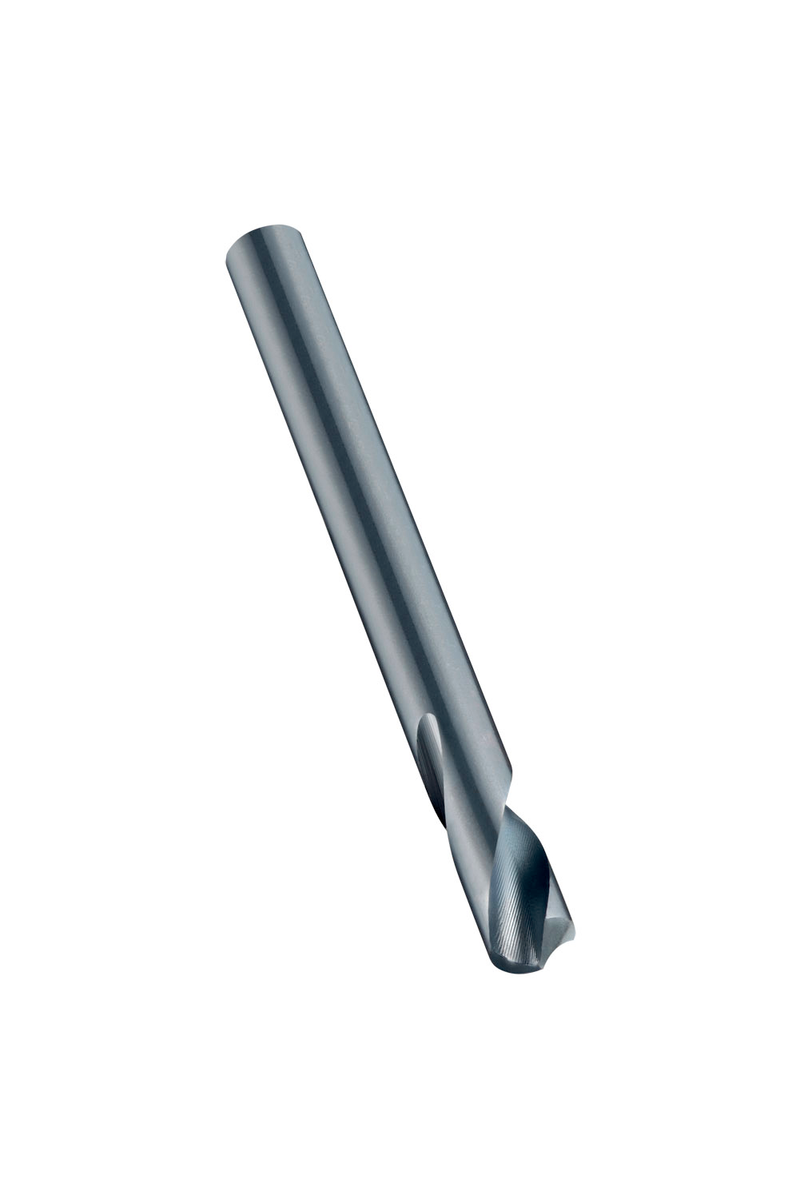

Foret tôle avec queue cylindrique, diamètre 6mm, longueur totale 66mm et longueur de coupe 18mm selon DIN 1897 avec angle de pointe 120°, HSS finition vaporisée pour un perçage 1.5xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)A1236.0S
GradeSteam Tempered
Product Number7189791
Product FamilyA123

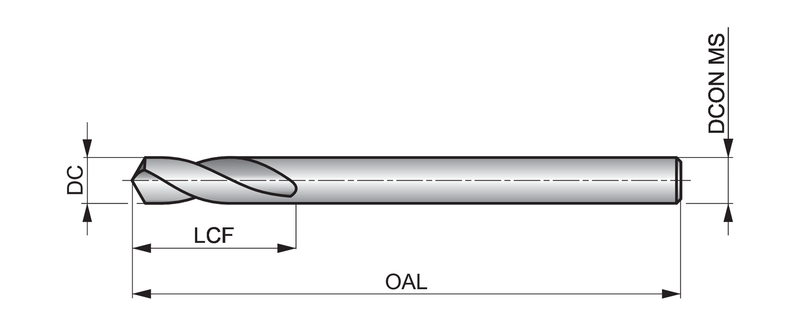

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.5984"
Overall Length — mm (OAL)66.0 mm
Flute Length — in (LCF)0.7087"
Flute Length — mm (LCF)18.0 mm
Length × Diameter Ratio1.5
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)120°
Tool Information
ShankCylindrical shank
Direction of ToolRight
StandardDIN 1897
Reference Numbers
EDP Number47189791
EAN7320760707975
File Type Download
A1236.0S — 3D Model STP Download
A1236.0S — Line Drawing PDF Download
